What Triggers the Recording of Freeze Frame Data in Your Car?

Freeze frame data offers a snapshot of your Mercedes-Benz’s engine conditions when a fault occurs and is accessible via diagnostic tools like the MERCEDES-DIAGNOSTIC-TOOL.EDU.VN. This valuable information helps pinpoint the root cause of issues, enabling faster and more accurate repairs while saving time and money by avoiding unnecessary troubleshooting and parts replacements. Learn how to interpret freeze frame data effectively for optimal vehicle maintenance and performance.

1. What is Freeze Frame Data and Why Is It Important?

Freeze frame data is a snapshot of critical engine parameters recorded by your vehicle’s onboard computer when a Diagnostic Trouble Code (DTC) is triggered. This data helps technicians diagnose issues by providing a glimpse into the conditions that led to the fault. According to the Society of Automotive Engineers (SAE), freeze frame data is a standardized set of parameters that all OBD-II compliant vehicles must record.

Understanding freeze frame data is crucial for accurate diagnostics because it:

• Provides Context: It shows the engine’s operating conditions at the moment a fault occurred, such as engine speed, load, and temperature.
• Reduces Guesswork: By providing specific data points, it eliminates the need for random part replacements, saving time and money.
• Aids in Intermittent Faults: Freeze frame data can be especially useful for diagnosing intermittent issues that are difficult to replicate.

Freeze frame data is more than just a set of numbers; it’s a crucial piece of the puzzle that helps technicians quickly and accurately identify the underlying causes of vehicle problems. Accessing and interpreting this data through tools like MERCEDES-DIAGNOSTIC-TOOL.EDU.VN empowers owners and mechanics to make informed decisions about vehicle maintenance and repairs.

2. What Specific Events or Faults Trigger Freeze Frame Data Recording?

Several specific events or faults can trigger the recording of freeze frame data. These are typically related to issues that affect the vehicle’s emissions system or overall engine performance.

Here are some common triggers:

• Emission-Related Faults: Any fault that causes the Malfunction Indicator Lamp (MIL), also known as the check engine light, to illuminate will usually trigger freeze frame data recording. This includes issues like:
  • Misfires: When one or more cylinders fail to fire correctly.
  • Oxygen Sensor Problems: Faults in the oxygen sensors that monitor exhaust gases.
  • Catalytic Converter Inefficiency: When the catalytic converter isn’t properly reducing emissions.
  • Evaporative Emission Control System (EVAP) Leaks: Leaks in the system that prevents fuel vapors from escaping into the atmosphere.
• Engine Performance Issues: Problems that affect how the engine runs, such as:
  • Fuel System Problems: Issues with fuel injectors, fuel pumps, or fuel pressure regulators.
  • Air Intake Problems: Faults in the mass airflow (MAF) sensor or throttle position sensor (TPS).
  • Timing Issues: Problems with the engine’s timing belt or chain.
• Transmission Problems: In some cases, transmission-related faults can also trigger freeze frame data, especially if they affect engine load or emissions.

It’s important to note that not all DTCs will trigger freeze frame data. Typically, only those codes that are considered most critical for emissions or engine performance will result in the recording of this data. Freeze frame data acts like a digital witness, capturing the precise moment when something goes wrong in your vehicle’s system.

Mercedes-Benz engine

The engine of a Mercedes-Benz vehicle showing the various components that can trigger freeze frame data.

3. What Parameters Are Typically Recorded in Freeze Frame Data?

The parameters recorded in freeze frame data provide a comprehensive overview of the engine’s operating conditions at the time of the fault. While the specific parameters can vary depending on the vehicle make and model, some common ones include:

• Engine Speed (RPM): The number of revolutions per minute the engine is turning.
• Vehicle Speed: The speed at which the vehicle was traveling.
• Engine Load: The percentage of the engine’s maximum capacity being used.
• Coolant Temperature: The temperature of the engine coolant.
• Intake Air Temperature (IAT): The temperature of the air entering the engine.
• Fuel Trim: Adjustments made to the fuel mixture by the engine control unit (ECU).
• Oxygen Sensor Readings: The voltage or current produced by the oxygen sensors in the exhaust system.
• Manifold Absolute Pressure (MAP): The pressure in the intake manifold.
• Throttle Position: The percentage of the throttle valve that is open.
• Fuel Pressure: The pressure of the fuel being delivered to the engine.

These parameters offer valuable insights into what was happening inside the engine when the fault occurred. For instance, high engine load combined with low coolant temperature could indicate a problem with the cooling system. Similarly, abnormal oxygen sensor readings could point to issues with the fuel system or catalytic converter.

Tools like MERCEDES-DIAGNOSTIC-TOOL.EDU.VN make it easy to access and interpret these parameters, providing a clear picture of the vehicle’s condition at the moment the freeze frame data was recorded.

4. How Can Freeze Frame Data Help Diagnose Car Problems More Effectively?

Freeze frame data acts as a crucial diagnostic tool by providing a snapshot of the vehicle’s operational status at the precise moment a fault code is triggered. This enables technicians and vehicle owners to:

• Pinpoint the Root Cause: By examining parameters like engine speed, load, temperature, and fuel trim, technicians can narrow down potential causes of the problem. For example, if a misfire code is accompanied by high engine load and lean fuel trim, it suggests a fuel delivery issue under heavy demand.
• Replicate the Fault Conditions: Freeze frame data allows technicians to recreate the conditions under which the fault occurred. This is particularly useful for intermittent problems that are difficult to reproduce. By mimicking the recorded parameters, technicians can potentially trigger the fault and observe the system’s behavior in real-time.
• Avoid Unnecessary Repairs: With a clearer understanding of the fault’s context, technicians can avoid guesswork and focus on the most likely causes. This reduces the risk of replacing parts that are not actually faulty, saving time and money.
• Improve Diagnostic Accuracy: Freeze frame data provides objective evidence that complements other diagnostic methods like visual inspections and sensor testing. By combining this data with other diagnostic techniques, technicians can achieve a more accurate and comprehensive assessment of the vehicle’s condition.

Consider a scenario where your Mercedes-Benz displays a check engine light related to the oxygen sensor. Without freeze frame data, a technician might simply replace the sensor. However, by examining the freeze frame data, they might discover that the fault occurred under specific conditions, such as after a cold start with a high engine load. This could indicate a problem with the engine’s warm-up cycle or a faulty coolant temperature sensor affecting fuel mixture.

MERCEDES-DIAGNOSTIC-TOOL.EDU.VN enables users to access and analyze freeze frame data, transforming it into actionable insights for effective vehicle diagnostics.

5. What Tools Are Needed to Access and Interpret Freeze Frame Data?

To effectively access and interpret freeze frame data, you’ll need the right tools. Here’s a breakdown of what you’ll need:

• OBD-II Scanner: An OBD-II (On-Board Diagnostics II) scanner is essential for retrieving freeze frame data from your vehicle’s computer. These scanners connect to the OBD-II port, typically located under the dashboard. There are various types of scanners available, ranging from basic code readers to advanced diagnostic tools.
• Diagnostic Software or App: Some OBD-II scanners come with built-in displays that show freeze frame data directly. Others require you to connect the scanner to a computer or smartphone running diagnostic software or an app. These software programs provide a user-friendly interface for viewing and analyzing the data.
• Vehicle-Specific Information: While freeze frame data provides a standardized set of parameters, understanding the specific values and ranges for your vehicle make and model is crucial. You may need access to repair manuals, technical service bulletins (TSBs), or online databases to interpret the data accurately.
• Knowledge of Automotive Systems: A basic understanding of automotive systems and how they interact is essential for interpreting freeze frame data effectively. You should be familiar with terms like engine load, fuel trim, and oxygen sensor readings.

MERCEDES-DIAGNOSTIC-TOOL.EDU.VN offers comprehensive diagnostic solutions that combine advanced OBD-II scanners with user-friendly software, providing easy access to freeze frame data and other valuable diagnostic information.

OBD II scanner connected to a car

An OBD II scanner connected to a car retrieving freeze frame data.

6. How to Use MERCEDES-DIAGNOSTIC-TOOL.EDU.VN to Retrieve Freeze Frame Data?

MERCEDES-DIAGNOSTIC-TOOL.EDU.VN simplifies the process of retrieving freeze frame data from your Mercedes-Benz. Here’s a step-by-step guide:

1. Connect the Diagnostic Tool: Locate the OBD-II port in your Mercedes-Benz, usually found under the dashboard. Plug the MERCEDES-DIAGNOSTIC-TOOL.EDU.VN diagnostic tool into the port.
2. Power On and Identify Vehicle: Turn on the ignition of your vehicle (without starting the engine). The diagnostic tool should power on automatically. Follow the on-screen prompts to identify your vehicle’s make, model, and year.
3. Select Diagnostic Function: Navigate to the “Diagnostics” or “OBD-II Diagnostics” option in the tool’s menu.
4. Read Trouble Codes: Select the “Read Codes” or “Trouble Codes” option to retrieve any stored Diagnostic Trouble Codes (DTCs).

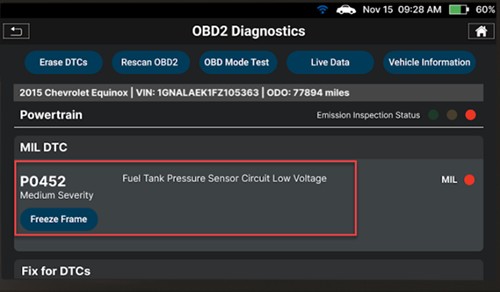

5. Access Freeze Frame Data: Once the DTCs are displayed, look for an option like “Freeze Frame Data” or “View Freeze Frame.” Select this option to view the data associated with the selected DTC.
6. Analyze the Data: The freeze frame data will be displayed in a table or list format. Take note of the parameters and their values, comparing them to the expected ranges for your vehicle.
7. Interpret the Results: Use your knowledge of automotive systems and the vehicle-specific information to interpret the results. Look for any abnormal values or patterns that could indicate the root cause of the problem.

MERCEDES-DIAGNOSTIC-TOOL.EDU.VN provides user-friendly interfaces and detailed explanations of the freeze frame parameters, making it easier to understand the data and diagnose issues effectively.

7. Interpreting Common Freeze Frame Parameters for Mercedes-Benz Vehicles

Understanding how to interpret common freeze frame parameters is essential for diagnosing issues in your Mercedes-Benz. Here’s a breakdown of some key parameters:

• Engine Speed (RPM): Indicates the engine’s rotational speed. High RPMs during a fault could suggest issues related to acceleration or transmission.
• Engine Load: Represents the percentage of the engine’s maximum potential output being used. High engine load during a fault could indicate a problem with the engine’s ability to deliver power.
• Coolant Temperature: Shows the engine’s coolant temperature. An abnormally low temperature could indicate a faulty thermostat, while an excessively high temperature could point to cooling system problems.
• Fuel Trim: Indicates the adjustments made by the ECU to the fuel mixture. Positive fuel trim values suggest the engine is running lean (too much air), while negative values suggest it’s running rich (too much fuel).
• Oxygen Sensor Readings: Reflect the amount of oxygen in the exhaust gases. Abnormal readings can indicate issues with the fuel system, catalytic converter, or oxygen sensors themselves.

For example, if you have a misfire code and the freeze frame data shows a lean fuel trim, it could indicate a vacuum leak or a faulty fuel injector.

MERCEDES-DIAGNOSTIC-TOOL.EDU.VN offers access to vehicle-specific resources, including typical parameter ranges and troubleshooting guides, to help you interpret freeze frame data accurately for your Mercedes-Benz model.

8. What Are Some Limitations of Freeze Frame Data?

While freeze frame data is a valuable diagnostic tool, it’s important to be aware of its limitations:

• Single Snapshot: Freeze frame data only provides a snapshot of the engine’s conditions at the moment the fault occurred. It doesn’t capture the events leading up to the fault or the changes that may have occurred afterward.
• Limited Parameters: The number of parameters recorded in freeze frame data is limited. It may not include all the data needed to diagnose certain types of problems.
• Potential for Overwriting: Freeze frame data can be overwritten by new DTCs. If a new fault occurs and triggers freeze frame data, it will replace the previously stored data.
• Interpretation Required: Freeze frame data requires interpretation and analysis. It’s not a simple “yes” or “no” answer. You need to understand the parameters and their relationships to diagnose the problem effectively.
• Not a Replacement for Thorough Diagnosis: Freeze frame data should be used as part of a comprehensive diagnostic process, not as a replacement for visual inspections, sensor testing, and other diagnostic techniques.

Despite these limitations, freeze frame data remains a valuable tool for diagnosing car problems, especially when used in conjunction with other diagnostic methods and resources like MERCEDES-DIAGNOSTIC-TOOL.EDU.VN.

9. Best Practices for Using Freeze Frame Data in Automotive Diagnostics

To maximize the effectiveness of freeze frame data in automotive diagnostics, follow these best practices:

• Retrieve Data Promptly: Retrieve freeze frame data as soon as possible after a fault occurs. This will prevent the data from being overwritten by new DTCs.
• Record All DTCs: Record all DTCs associated with the fault, as they can provide additional context and information.
• Compare to Specifications: Compare the freeze frame parameters to the vehicle’s specifications and typical ranges. This will help you identify any abnormal values.
• Consider the Context: Consider the context in which the fault occurred. Was the vehicle under heavy load, accelerating, or idling? This can provide clues about the potential cause of the problem.
• Use Multiple Diagnostic Techniques: Use freeze frame data in conjunction with other diagnostic techniques, such as visual inspections, sensor testing, and component testing.
• Consult Repair Information: Consult repair manuals, technical service bulletins (TSBs), and online resources for vehicle-specific diagnostic information.
• Clear Codes After Repair: After completing the repair, clear the DTCs and freeze frame data. This will allow you to monitor the system and ensure that the fault does not reoccur.

By following these best practices and utilizing resources like MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, you can effectively leverage freeze frame data to diagnose and repair car problems with greater accuracy and efficiency.

10. Case Studies: Real-World Examples of Freeze Frame Data Usage

Let’s examine some real-world case studies to illustrate how freeze frame data can be used to diagnose car problems effectively:

Case Study 1: Misfire on Cylinder 1

• Problem: A Mercedes-Benz is experiencing a misfire on cylinder 1, and the check engine light is on.
• Freeze Frame Data:
  • Engine Speed: 2500 RPM
  • Engine Load: 80%
  • Fuel Trim (Bank 1): +15%
• Diagnosis: The freeze frame data indicates that the misfire occurred under high engine load and that the engine is running lean on bank 1. This suggests a potential fuel delivery problem on cylinder 1, such as a faulty fuel injector or a vacuum leak.
• Solution: The technician performs a fuel injector test on cylinder 1 and discovers that it is not delivering enough fuel. The fuel injector is replaced, and the misfire is resolved.

Case Study 2: Oxygen Sensor Fault

• Problem: A Mercedes-Benz has a DTC indicating a faulty oxygen sensor.
• Freeze Frame Data:
  • Engine Speed: 800 RPM
  • Engine Load: 20%
  • Oxygen Sensor Voltage (Bank 1, Sensor 1): 0.1V (Low)
• Diagnosis: The freeze frame data shows that the oxygen sensor voltage is abnormally low at idle. This suggests that the oxygen sensor is not functioning correctly and may need to be replaced. However, the technician also notices that the engine load is low, which is normal for idle conditions.
• Solution: The technician inspects the oxygen sensor and discovers that it is covered in carbon deposits. The oxygen sensor is cleaned, and the fault is resolved.

Case Study 3: Catalytic Converter Inefficiency

• Problem: A Mercedes-Benz has a DTC indicating that the catalytic converter is not functioning efficiently.
• Freeze Frame Data:
  • Engine Speed: 2000 RPM
  • Engine Load: 50%
  • Oxygen Sensor Voltage (Bank 1, Sensor 2): 0.7V (High)
• Diagnosis: The freeze frame data shows that the oxygen sensor voltage downstream of the catalytic converter is abnormally high. This suggests that the catalytic converter is not effectively reducing emissions and may need to be replaced.
• Solution: The technician inspects the catalytic converter and discovers that it is damaged. The catalytic converter is replaced, and the fault is resolved.

These case studies demonstrate the power of freeze frame data in diagnosing car problems accurately and efficiently. By analyzing the data and considering the context in which the fault occurred, technicians can quickly identify the root cause of the problem and implement the appropriate solution using diagnostic tools such as MERCEDES-DIAGNOSTIC-TOOL.EDU.VN.

These are just a few examples of how freeze frame data can be used to diagnose car problems. With the right tools and knowledge, you can use freeze frame data to keep your car running smoothly and efficiently.

Unlock the full potential of your Mercedes-Benz with MERCEDES-DIAGNOSTIC-TOOL.EDU.VN. Don’t let complex car problems keep you off the road. Our advanced diagnostic tools and expert guidance empower you to understand your vehicle’s health, diagnose issues accurately, and make informed repair decisions.

Contact us today via WhatsApp at +1 (641) 206-8880 or visit our website at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for a consultation. Our address is 789 Oak Avenue, Miami, FL 33101, United States.

FAQ: Frequently Asked Questions About Freeze Frame Data

Here are some frequently asked questions about freeze frame data:

1. What is the difference between freeze frame data and live data?

Freeze frame data is a snapshot of engine parameters recorded when a fault occurs, while live data is a continuous stream of data from various sensors in real-time.

2. Can I clear freeze frame data without fixing the problem?

Yes, you can clear freeze frame data, but the fault code will likely return if the underlying problem is not resolved.

3. How do I know if my car supports freeze frame data?

Most vehicles manufactured after 1996 support freeze frame data, as it is a requirement of the OBD-II standard.

4. Is freeze frame data the same for all vehicles?

While the basic parameters are standardized, the specific parameters and their ranges can vary depending on the vehicle make and model.

5. Can I use freeze frame data to diagnose transmission problems?

In some cases, yes. Transmission-related faults that affect engine load or emissions can trigger freeze frame data.

6. How often should I check my car for freeze frame data?

You should check your car for freeze frame data whenever the check engine light comes on or if you suspect a problem with your vehicle.

7. Is freeze frame data a substitute for a professional diagnosis?

No, freeze frame data should be used as part of a comprehensive diagnostic process, not as a replacement for a professional diagnosis.

8. What does it mean when the freeze frame data is empty?

If the freeze frame data is empty, it could mean that the fault code was not serious enough to trigger the recording of freeze frame data, or that the data has been cleared.

9. How do I access freeze frame data on my smartphone?

You can access freeze frame data on your smartphone by using an OBD-II scanner that connects to your phone via Bluetooth or Wi-Fi and a compatible diagnostic app.

10. Can freeze frame data help me pass an emissions test?

Yes, freeze frame data can help you identify and resolve issues that could cause your vehicle to fail an emissions test.

Understanding freeze frame data and how to use it effectively can empower you to take better care of your Mercedes-Benz and ensure its optimal performance for years to come.
