Where Is The 2005 Town Car OBD2 Port Location?

Is your 2005 Lincoln Town Car acting up? Locating the OBD2 port is the first step toward diagnosing the issue. At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we provide you with comprehensive guidance on finding the OBD2 port, interpreting diagnostic codes, and performing necessary repairs or maintenance, ensuring your luxury ride stays smooth. Explore advanced diagnostic tools and unlock hidden features with our expert assistance and resources.

1. Understanding the Importance of the OBD2 Port

The On-Board Diagnostics II (OBD2) port is a standardized interface found in most vehicles manufactured after 1996. It allows technicians and car owners to access the vehicle’s computer system, retrieve diagnostic trouble codes (DTCs), and monitor various parameters related to engine performance, emissions, and other systems. Understanding the OBD2 port’s function is crucial for effective vehicle maintenance and troubleshooting.

• Diagnostic Trouble Codes (DTCs): These codes provide insights into potential issues, helping to pinpoint problems quickly.
• Real-time Data Monitoring: Monitor engine performance, sensor readings, and other vital parameters in real-time.
• Emissions Testing: Ensure your vehicle complies with environmental regulations by checking emissions-related data.
• Vehicle Health Checks: Regularly scan your vehicle to identify and address minor issues before they escalate into major repairs.

2. Locating the OBD2 Port in Your 2005 Lincoln Town Car

For the 2005 Lincoln Town Car, the OBD2 port is typically located beneath the dashboard on the driver’s side. Follow these steps to find it:

1. Check Under the Dashboard: Look under the dashboard, near the steering column or the center console area on the driver’s side.
2. Search for a 16-Pin Connector: The OBD2 port is a standard 16-pin connector, usually trapezoidal in shape.
3. Use a Flashlight: If the area is dark, use a flashlight to get a better view.
4. Consult the Owner’s Manual: If you’re having trouble locating it, consult your vehicle’s owner’s manual for a specific diagram.

The OBD2 port in the 2005 Lincoln Town Car provides access to critical diagnostic information. Knowing its location allows you to use diagnostic tools efficiently, helping you keep your vehicle running smoothly.

3. Essential Tools for OBD2 Diagnostics

Having the right tools is essential for performing accurate diagnostics. Here are some recommended tools:

• OBD2 Scanners: Basic scanners can read and clear diagnostic trouble codes (DTCs).
• Advanced Diagnostic Tools: More sophisticated tools offer features like live data streaming, freeze frame data, and bi-directional control.
• Smartphone Apps: Paired with a Bluetooth OBD2 adapter, these apps can provide diagnostic information on your smartphone.
• Multimeters: Useful for testing electrical circuits and sensor outputs.
• Repair Manuals: Provide detailed information on specific diagnostic and repair procedures.
• Laptop with Diagnostic Software: Professional-grade software offers in-depth analysis and advanced diagnostic capabilities.

4. Step-by-Step Guide to Using an OBD2 Scanner

Using an OBD2 scanner is straightforward. Here’s a step-by-step guide to help you get started:

1. Locate the OBD2 Port: Find the OBD2 port under the dashboard on the driver’s side.
2. Connect the Scanner: Plug the OBD2 scanner into the port.
3. Turn On the Ignition: Turn the ignition key to the “ON” position without starting the engine.
4. Power On the Scanner: The scanner should power on automatically. If not, ensure it has batteries or is properly connected.
5. Navigate the Menu: Use the scanner’s menu to select “Read Codes” or a similar option.
6. Record the Codes: The scanner will display any stored diagnostic trouble codes (DTCs). Write them down.
7. Interpret the Codes: Use a repair manual or online resources to understand the meaning of each code.
8. Clear the Codes (Optional): If you understand the issue and have addressed it, you can select “Clear Codes” to reset the system.
9. Verify the Repair: After clearing the codes, drive the vehicle to see if the issue returns.
10. Disconnect the Scanner: Once you’re done, disconnect the scanner from the OBD2 port.

5. Interpreting Common OBD2 Codes for Lincoln Town Car

Understanding common OBD2 codes can help you diagnose issues more effectively. Here are some typical codes you might encounter:

• P0171 – System Too Lean (Bank 1): Indicates that the engine is receiving too much air or not enough fuel.
• P0300 – Random Misfire Detected: Signifies that the engine is misfiring randomly.
• P0420 – Catalyst System Efficiency Below Threshold (Bank 1): Suggests that the catalytic converter is not functioning efficiently.
• P0113 – Intake Air Temperature Sensor Circuit High Input: Indicates a problem with the intake air temperature sensor.
• P0301 – Cylinder 1 Misfire Detected: Signifies a misfire in cylinder number 1.
• P0505 – Idle Air Control System Malfunction: Indicates an issue with the idle air control system.
• P1450 – Unable to Bleed Fuel Tank Vacuum: Suggests a problem with the evaporative emission control system.
• P0128 – Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature): Indicates that the engine is not reaching the proper operating temperature.
• P0401 – Exhaust Gas Recirculation Flow Insufficient Detected: Signifies a problem with the exhaust gas recirculation system.
• P0102 – Mass or Volume Air Flow Circuit Low Input: Indicates a problem with the mass air flow sensor.

Knowing how to interpret these codes can significantly aid in diagnosing and resolving issues with your Lincoln Town Car. If you need more in-depth information, our experts at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN can help.

6. Common Issues Diagnosed Through the OBD2 Port

The OBD2 port can help diagnose a wide range of issues in your 2005 Lincoln Town Car. Here are some common problems identified through OBD2 diagnostics:

• Engine Misfires: Codes like P0300, P0301, P0302, etc., indicate misfires in specific cylinders.
• Oxygen Sensor Problems: Codes related to oxygen sensors (e.g., P0131, P0132) can indicate sensor failures or wiring issues.
• Catalytic Converter Issues: The P0420 code indicates that the catalytic converter is not functioning correctly.
• Fuel System Problems: Codes like P0171 (System Too Lean) or P0172 (System Too Rich) point to fuel mixture issues.
• Emissions Control Problems: Codes related to the evaporative emission control system (e.g., P0440, P0455) can indicate leaks or system malfunctions.
• Transmission Issues: While less common, some transmission-related codes can be accessed through the OBD2 port.
• ABS and Traction Control Issues: Some ABS and traction control system faults can trigger codes accessible via the OBD2 port.
• Sensor Failures: Problems with various sensors, such as the mass air flow (MAF) sensor or coolant temperature sensor, can be diagnosed.
• Idle Control Problems: The P0505 code indicates issues with the idle air control system.
• Vacuum Leaks: Codes indicating lean conditions (e.g., P0171) can sometimes be caused by vacuum leaks.

7. Performing Basic Maintenance Using OBD2 Data

The OBD2 port is not only for diagnosing problems but also for performing basic maintenance tasks. Here are some ways you can use OBD2 data for maintenance:

• Monitoring Engine Performance: Keep an eye on parameters like engine temperature, RPM, and fuel trim to ensure the engine is running efficiently.
• Checking Emissions Readiness: Before an emissions test, use the OBD2 scanner to check if all emissions systems are ready.
• Identifying Potential Issues Early: Regularly scan for trouble codes to catch minor problems before they become major repairs.
• Evaluating Fuel Efficiency: Monitor fuel consumption data to identify potential issues affecting fuel economy.
• Tracking Sensor Data: Observe sensor readings to detect anomalies that could indicate sensor failures.
• Resetting Maintenance Lights: Some OBD2 scanners can reset maintenance reminder lights.
• Verifying Repairs: After performing a repair, use the OBD2 scanner to ensure the issue has been resolved and no new codes appear.
• Checking Battery Voltage: Monitor battery voltage to ensure it is within the proper range.
• Analyzing Freeze Frame Data: When a trouble code is triggered, the scanner stores freeze frame data, providing a snapshot of the conditions at the time of the fault.
• Testing Oxygen Sensors: Monitor oxygen sensor activity to ensure they are switching properly and providing accurate readings.

8. Advanced Diagnostics and Troubleshooting Techniques

For more complex issues, advanced diagnostic techniques are necessary. Here are some methods to consider:

• Live Data Analysis: Monitor real-time data from various sensors to identify anomalies and patterns.
• Bi-Directional Control: Use a scanner that supports bi-directional control to activate or deactivate specific components for testing purposes.
• Component Testing: Use a multimeter to test the resistance, voltage, and continuity of individual components.
• Wiring Diagrams: Consult wiring diagrams to trace circuits and identify potential wiring issues.
• Vacuum Leak Testing: Use a smoke machine to locate vacuum leaks in the intake system.
• Fuel Pressure Testing: Check fuel pressure to ensure the fuel system is operating correctly.
• Compression Testing: Perform a compression test to evaluate the condition of the engine’s cylinders.
• Oscilloscope Diagnostics: Use an oscilloscope to analyze waveforms from sensors and actuators.
• Software Updates: Ensure the vehicle’s computer system has the latest software updates.
• Consulting Technical Service Bulletins (TSBs): Check for TSBs issued by the manufacturer for known issues and solutions.

9. When to Seek Professional Help

While basic diagnostics and repairs can be performed at home, some situations require professional assistance. Consider seeking professional help if:

• You’re Unsure About the Diagnosis: If you’re unable to accurately diagnose the problem using an OBD2 scanner and other tools.
• The Repair Requires Specialized Tools: Some repairs require tools that are not commonly available to the average car owner.
• You’re Not Comfortable Performing the Repair: If you lack the experience or confidence to perform the necessary repairs.
• The Problem Is Complex: Some issues, such as intermittent faults or electrical problems, can be difficult to diagnose and repair.
• The Vehicle Is Under Warranty: Performing repairs yourself may void the warranty.
• You Lack the Time: If you’re too busy to dedicate the necessary time to diagnose and repair the problem.
• The Problem Affects Safety Systems: Issues with safety systems, such as ABS or airbags, should be handled by a professional.
• You’ve Tried Everything and Nothing Works: If you’ve exhausted all possible DIY solutions.
• You Suspect a Computer Problem: Issues with the vehicle’s computer system may require specialized diagnostic and programming equipment.
• You Need a Second Opinion: If you’re unsure about a diagnosis or repair recommendation.

10. Benefits of Using MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for Your Diagnostic Needs

Choosing MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for your diagnostic needs offers several advantages:

• Expert Guidance: Access professional advice and support from experienced technicians.
• Comprehensive Resources: Benefit from detailed guides, tutorials, and diagnostic information.
• Latest Tools and Technology: Stay up-to-date with the latest diagnostic tools and techniques.
• Cost Savings: Reduce repair costs by accurately diagnosing problems and performing repairs yourself.
• Convenience: Diagnose and address issues at your convenience, without the need for a mechanic.
• Improved Vehicle Performance: Ensure your vehicle runs smoothly and efficiently.
• Preventative Maintenance: Identify and address minor issues before they become major repairs.
• Custom Solutions: Receive tailored advice and support for your specific vehicle and needs.
• Community Support: Connect with other car enthusiasts and share knowledge and experiences.
• Up-to-Date Information: Get the latest information on diagnostic procedures and repair techniques.

2005 Lincoln Town Car fuse box diagram Passenger Compartment Fuse Panel

Alternative text: 2005 Lincoln Town Car interior fuse panel diagram, showing fuse locations in the passenger compartment.

11. Maintaining Your Lincoln Town Car’s Electrical System

Proper maintenance of your Lincoln Town Car’s electrical system is crucial for its overall reliability and performance. Here are some tips to keep your electrical system in top condition:

• Regular Battery Checks: Have your battery tested regularly to ensure it is holding a proper charge.
• Clean Battery Terminals: Keep battery terminals clean and free of corrosion.
• Inspect Wiring: Periodically inspect wiring for damage, such as cracks or fraying.
• Check Fuses and Relays: Regularly inspect fuses and relays to ensure they are in good condition.
• Avoid Overloading Circuits: Avoid overloading electrical circuits by using excessive accessories.
• Use Quality Replacement Parts: Use high-quality replacement parts when performing electrical repairs.
• Protect Wiring from Moisture: Protect wiring from moisture and exposure to the elements.
• Check Ground Connections: Ensure all ground connections are clean and secure.
• Monitor Voltage: Monitor voltage levels to ensure they are within the proper range.
• Professional Inspections: Have your electrical system professionally inspected on a regular basis.

12. Understanding Lincoln Town Car Specifics

The Lincoln Town Car, known for its luxury and comfort, has specific diagnostic nuances. Here are some points to consider:

• Air Suspension System: The Town Car’s air suspension system can trigger specific diagnostic codes related to height sensors, air compressors, and solenoids.
• Lighting Control Module (LCM): Issues with the LCM can affect various lighting functions and trigger related diagnostic codes.
• Driver Door Module (DDM): Problems with the DDM can affect power windows, door locks, and mirrors.
• Passive Anti-Theft System (PATS): Issues with the PATS can prevent the vehicle from starting and trigger related diagnostic codes.
• Dual Automatic Temperature Control (DATC): Problems with the DATC system can affect the climate control functions and trigger related diagnostic codes.
• Rear Air Suspension Module (RASM): Issues with the RASM can affect the rear air suspension system and trigger related diagnostic codes.
• Power Decklid Module (PDM): Problems with the PDM can affect the power trunk lid function.
• Electrochromatic Mirror: Issues with the electrochromatic mirror can affect its dimming function.
• Adjustable Pedals: Problems with the adjustable pedals can affect their operation.
• Heated Seats Module: Issues with the heated seats module can affect the heated seat function.

13. How to Access Hidden Features Using OBD2

Beyond diagnostics, the OBD2 port can be used to access and enable hidden features in your Lincoln Town Car. Here’s how:

• Identify Compatible Features: Research which hidden features are available for your specific model and year.
• Use a Suitable OBD2 Adapter: Choose an OBD2 adapter that supports advanced coding and programming.
• Install Coding Software: Install compatible coding software on your laptop or smartphone.
• Connect to the OBD2 Port: Plug the OBD2 adapter into the port and establish a connection with the software.
• Access Control Modules: Navigate through the software to access the relevant control modules.
• Modify Settings: Modify the settings for the desired features.
• Test the Changes: Test the newly enabled features to ensure they are functioning correctly.
• Backup Original Settings: Always back up the original settings before making any changes.
• Seek Expert Advice: If you’re unsure about any step, seek advice from a professional.
• Research Thoroughly: Research and understand the potential risks and benefits before enabling hidden features.

14. Troubleshooting OBD2 Connection Issues

Encountering issues when connecting to the OBD2 port is not uncommon. Here are troubleshooting steps:

• Check the Connector: Ensure the OBD2 connector is clean and free of debris.
• Verify Power: Confirm that the OBD2 scanner or adapter is receiving power.
• Check the Vehicle’s Battery: A weak battery can sometimes interfere with the OBD2 connection.
• Inspect the OBD2 Port: Inspect the OBD2 port for damage or corrosion.
• Try a Different Scanner: If possible, try a different OBD2 scanner or adapter.
• Check the Fuses: Check the fuses related to the OBD2 port and diagnostic system.
• Ensure Compatibility: Make sure the OBD2 scanner or adapter is compatible with your vehicle.
• Update Software: Ensure the OBD2 scanner or adapter has the latest software updates.
• Check Wiring: Inspect the wiring connected to the OBD2 port for damage.
• Consult a Professional: If you’re still unable to connect, consult a professional technician.

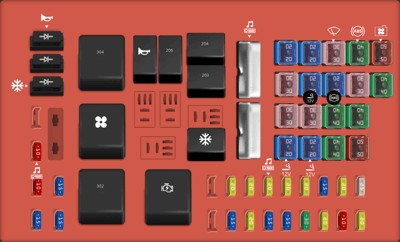

2005 Lincoln Town Car fuse box diagram Power Distribution Box

Alternative text: Diagram of the power distribution fuse box in a 2005 Lincoln Town Car, showing the location of various fuses.

15. Understanding Freeze Frame Data

Freeze frame data provides a snapshot of the vehicle’s operating conditions when a diagnostic trouble code (DTC) is stored. Here’s what you need to know:

• Definition: Freeze frame data captures parameters such as engine speed, coolant temperature, fuel trim, and vehicle speed.
• Importance: It helps diagnose the conditions that triggered the DTC, providing valuable context.
• Accessing Freeze Frame Data: Most OBD2 scanners can access and display freeze frame data.
• Interpreting the Data: Analyze the data to identify any abnormal readings or conditions that may have contributed to the problem.
• Using Freeze Frame Data for Diagnosis: Use the data to narrow down the potential causes of the problem and guide your troubleshooting efforts.
• Example: If a DTC is triggered at high engine speed, the freeze frame data will show this, suggesting a problem related to high RPM conditions.
• Limitations: Freeze frame data only provides a snapshot in time and may not capture all relevant information.
• Combining with Live Data: Use freeze frame data in conjunction with live data to get a more complete picture of the vehicle’s operating conditions.
• Clearing Freeze Frame Data: Clearing DTCs will also clear the freeze frame data.
• Professional Assistance: If you’re unsure how to interpret freeze frame data, seek assistance from a professional technician.

16. Leveraging Online Resources for Lincoln Town Car Diagnostics

Numerous online resources can assist with diagnosing and repairing your Lincoln Town Car. Here are some helpful options:

• Online Forums: Participate in online forums dedicated to Lincoln Town Cars to share experiences and get advice from other owners.
• Repair Manuals: Access online repair manuals for detailed diagnostic and repair procedures.
• Technical Service Bulletins (TSBs): Check for TSBs issued by the manufacturer for known issues and solutions.
• YouTube Tutorials: Watch YouTube tutorials for step-by-step guidance on diagnostic and repair tasks.
• Online Parts Catalogs: Use online parts catalogs to identify and order replacement parts.
• Diagnostic Code Databases: Consult online diagnostic code databases for definitions and troubleshooting tips.
• Manufacturer Websites: Visit the manufacturer’s website for technical information and resources.
• Social Media Groups: Join social media groups dedicated to Lincoln Town Cars for support and information.
• Professional Websites: Explore websites of professional technicians and diagnostic specialists for expert advice.
• Online Communities: Engage with online communities to learn from the experiences of other car owners.

17. Tips for Accurate OBD2 Diagnostics

Accurate OBD2 diagnostics are essential for effective troubleshooting. Here are some tips to ensure accuracy:

• Use a Quality Scanner: Invest in a quality OBD2 scanner that provides accurate and reliable data.
• Verify the Codes: Double-check the diagnostic trouble codes (DTCs) to ensure they are correctly identified.
• Consult Repair Manuals: Use repair manuals to understand the proper diagnostic procedures.
• Check Wiring and Connections: Inspect wiring and connections for damage or corrosion.
• Test Components: Test individual components to verify their functionality.
• Consider Symptoms: Consider the symptoms the vehicle is exhibiting to help narrow down the potential causes.
• Use Live Data: Monitor live data to identify anomalies and patterns.
• Analyze Freeze Frame Data: Analyze freeze frame data to understand the conditions that triggered the DTC.
• Clear Codes and Retest: After performing a repair, clear the codes and retest to ensure the problem has been resolved.
• Seek Professional Advice: If you’re unsure about the diagnosis, seek advice from a professional technician.

18. Understanding the Limitations of OBD2 Diagnostics

While OBD2 diagnostics are powerful, it’s important to understand their limitations:

• Not a Solution: OBD2 diagnostics only provide information about potential problems, not the solution.
• Limited Scope: OBD2 systems may not detect all possible issues, especially those related to non-emission-related systems.
• False Positives: OBD2 systems can sometimes generate false positive codes.
• Misinterpretation: Diagnostic codes can be misinterpreted, leading to incorrect diagnoses.
• Component Dependency: The accuracy of OBD2 diagnostics depends on the proper functioning of sensors and other components.
• Wiring Issues: Wiring problems can interfere with OBD2 diagnostics and lead to inaccurate results.
• Software Limitations: The capabilities of the OBD2 system are limited by the software and programming of the vehicle’s computer.
• Complexity: Diagnosing complex issues may require advanced diagnostic techniques beyond the capabilities of a basic OBD2 scanner.
• Intermittent Problems: Intermittent problems can be difficult to diagnose using OBD2 diagnostics.
• Professional Expertise: Diagnosing and repairing some issues may require the expertise of a professional technician.

19. Future of OBD2 Technology

The future of OBD2 technology is evolving rapidly. Here’s what you can expect:

• Enhanced Diagnostics: More advanced diagnostic capabilities and features.
• Wireless Connectivity: Increased use of wireless connectivity for remote diagnostics and monitoring.
• Integration with Mobile Devices: Seamless integration with smartphones and other mobile devices.
• Cloud-Based Diagnostics: Cloud-based diagnostic platforms for data storage, analysis, and sharing.
• Artificial Intelligence (AI): Use of AI and machine learning for predictive maintenance and advanced diagnostics.
• Cybersecurity Enhancements: Improved cybersecurity measures to protect vehicle systems from hacking and unauthorized access.
• Standardization: Continued standardization of diagnostic protocols and interfaces.
• Remote Updates: Over-the-air software updates for vehicle systems.
• Improved Data Analysis: More sophisticated data analysis tools for identifying patterns and trends.
• Integration with Autonomous Driving Systems: Integration with autonomous driving systems for real-time monitoring and diagnostics.

20. Call to Action: Get Expert Assistance Today

Don’t let diagnostic challenges keep you off the road. At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we offer expert assistance to help you accurately diagnose and resolve any issues with your 2005 Lincoln Town Car. Whether you need help locating the OBD2 port, interpreting diagnostic codes, or performing complex repairs, our team is here to support you. Contact us today for personalized guidance and solutions tailored to your needs.

Contact Information:

• Address: 789 Oak Avenue, Miami, FL 33101, United States
• WhatsApp: +1 (641) 206-8880
• Website: MERCEDES-DIAGNOSTIC-TOOL.EDU.VN

Let MERCEDES-DIAGNOSTIC-TOOL.EDU.VN be your trusted partner in maintaining and optimizing your Lincoln Town Car!

FAQ Section: 2005 Lincoln Town Car OBD2 Port Location

1. Where is the OBD2 port located in a 2005 Lincoln Town Car?

The OBD2 port in a 2005 Lincoln Town Car is typically located under the dashboard on the driver’s side, near the steering column or center console.

2. What type of OBD2 scanner should I use for my 2005 Lincoln Town Car?

You can use any standard OBD2 scanner, but for advanced diagnostics, consider a scanner that supports live data streaming and bi-directional control.

3. Can I use a smartphone app with a Bluetooth OBD2 adapter for my 2005 Lincoln Town Car?

Yes, you can use a smartphone app with a compatible Bluetooth OBD2 adapter to read diagnostic codes and monitor vehicle parameters.

4. What are some common OBD2 codes I might encounter with my 2005 Lincoln Town Car?

Common codes include P0171 (System Too Lean), P0300 (Random Misfire Detected), and P0420 (Catalyst System Efficiency Below Threshold).

5. How do I interpret the OBD2 codes that my scanner retrieves?

Use a repair manual or online resources to look up the definitions and possible causes of each code.

6. Can I clear the OBD2 codes after I fix the problem?

Yes, you can clear the codes using your OBD2 scanner after you have addressed the underlying issue.

7. What is freeze frame data, and how can it help with diagnostics?

Freeze frame data is a snapshot of the vehicle’s operating conditions when a code was triggered, providing valuable context for diagnosis.

8. Is it safe to enable hidden features using the OBD2 port?

Enabling hidden features can be safe if done correctly, but always research thoroughly and back up your original settings first.

9. What should I do if I can’t connect to the OBD2 port with my scanner?

Check the connector, verify power, inspect the port for damage, and ensure the scanner is compatible with your vehicle.

10. When should I seek professional help for OBD2 diagnostics and repairs?

Seek professional help if you’re unsure about the diagnosis, the repair requires specialized tools, or the problem is complex.
