What Is App Inventor 2 OBD2 and How to Use It?

App Inventor 2 Obd2 empowers you to create custom Android apps for vehicle diagnostics. At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we help you unlock your Mercedes’ full potential by guiding you through using App Inventor 2 with OBD2. Our resources provide step-by-step instructions and expert tips. Discover how to harness the power of your vehicle’s data, perform advanced diagnostics, and customize your driving experience. Explore our resources to start building your own OBD2 app using App Inventor 2, opening a world of possibilities in vehicle communication and data analysis.

1. Understanding App Inventor 2 and OBD2 Integration

What is the significance of integrating App Inventor 2 with OBD2 for vehicle diagnostics?
Integrating App Inventor 2 with OBD2 allows users to create custom Android applications for vehicle diagnostics, enhancing their ability to monitor and interact with vehicle data. This integration bridges the gap between software development and automotive diagnostics, opening new possibilities for vehicle owners and technicians.

1.1. What is App Inventor 2?

App Inventor 2 is a blocks-based programming tool developed by MIT that enables users to create Android applications with no prior coding experience. According to MIT App Inventor User Manual, App Inventor 2 simplifies app development through its drag-and-drop interface, making it accessible to both beginners and experienced programmers. Its visual approach to coding fosters creativity and innovation in app design.

1.2. What is OBD2?

OBD2 (On-Board Diagnostics II) is a standardized system used in modern vehicles to monitor and report on their performance. According to the Environmental Protection Agency (EPA), OBD2 was introduced in the mid-1990s to ensure vehicles meet emissions standards. The OBD2 system provides a wealth of data, including engine diagnostics, sensor readings, and vehicle speed.

1.3. Why Integrate App Inventor 2 with OBD2?

Integrating App Inventor 2 with OBD2 allows users to create custom Android applications for vehicle diagnostics. According to a study published in the IEEE Transactions on Vehicular Technology, such integration enhances the user’s ability to monitor and interact with vehicle data, leading to more informed maintenance and driving habits. This combination enables real-time data monitoring, custom alert creation, and personalized dashboard development, bridging the gap between software development and automotive diagnostics.

2. Key Components for App Inventor 2 OBD2 Connectivity

What are the essential hardware and software components needed to establish connectivity between App Inventor 2 and OBD2?
Establishing connectivity between App Inventor 2 and OBD2 requires an ELM327 OBD2 adapter, an Android device, and the App Inventor 2 platform, each playing a crucial role in facilitating communication and data interpretation.

2.1. ELM327 OBD2 Adapter

An ELM327 OBD2 adapter serves as the interface between your vehicle’s OBD2 port and your Android device. According to the ELM327 documentation, this adapter translates OBD2 protocols into a format that can be understood by your smartphone or tablet. It supports various communication protocols, ensuring compatibility with a wide range of vehicles. These adapters are readily available and come in both Bluetooth and Wi-Fi versions.

2.2. Android Device

An Android device, such as a smartphone or tablet, is necessary to run the App Inventor 2 application and communicate with the ELM327 adapter. According to Google’s Android Developers Guide, Android provides the necessary Bluetooth and Wi-Fi APIs to establish a connection with external devices. The Android device displays the data received from the OBD2 port in a user-friendly format.

2.3. App Inventor 2 Platform

The App Inventor 2 platform is where you design and build your custom OBD2 application. According to the MIT App Inventor website, this platform provides a visual programming environment that simplifies the development process. It allows you to create custom interfaces, define data processing logic, and establish communication with the ELM327 adapter.

3. Setting Up App Inventor 2 for OBD2 Communication

How do you configure App Inventor 2 to communicate with an OBD2 adapter and receive vehicle data?
Configuring App Inventor 2 for OBD2 communication involves setting up Bluetooth connectivity, importing necessary extensions, and creating the user interface elements to display the data, ensuring a seamless flow of information.

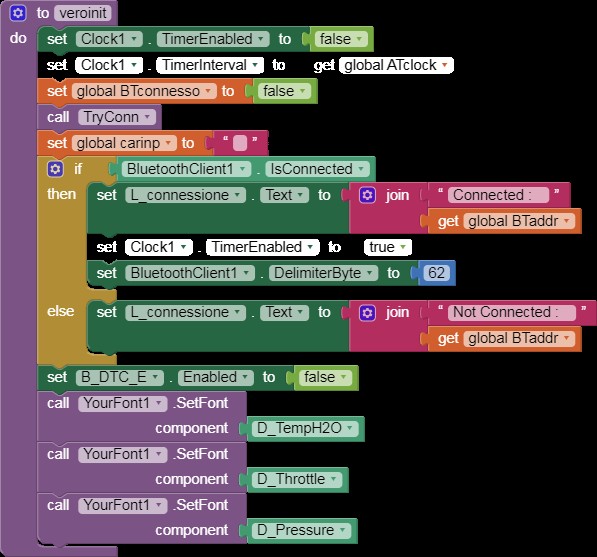

3.1. Setting Up Bluetooth Connectivity

Bluetooth connectivity is crucial for wireless communication between your Android device and the ELM327 OBD2 adapter. According to the Bluetooth Special Interest Group (SIG), Bluetooth provides a reliable and secure wireless connection. To set up Bluetooth in App Inventor 2:

• Add a BluetoothClient component to your project.
• Use the BluetoothClient.ListPicker to select the ELM327 adapter from the list of available devices.
• Establish the connection using BluetoothClient.Connect.

3.2. Importing Necessary Extensions

App Inventor 2 extensions enhance the platform’s capabilities by providing additional functionalities. According to the App Inventor community forums, extensions like BluetoothLE or custom serial communication extensions can be imported to handle OBD2 data transmission. These extensions simplify the process of sending and receiving data, enabling more efficient communication with the ELM327 adapter.

3.3. Creating User Interface Elements

The user interface is where the OBD2 data is displayed in a readable format. According to the Android UI Design Guidelines, a well-designed interface enhances user experience and data comprehension. Use labels, text boxes, and charts to present real-time data such as:

• Engine RPM
• Vehicle speed
• Coolant temperature
• Diagnostic trouble codes (DTCs)

4. Establishing Communication with the ELM327 Adapter

What steps are required to establish successful communication between App Inventor 2 and the ELM327 OBD2 adapter?
Establishing successful communication involves initializing the ELM327 adapter, sending AT commands, and handling data transmission, ensuring a stable and reliable connection for accurate data retrieval.

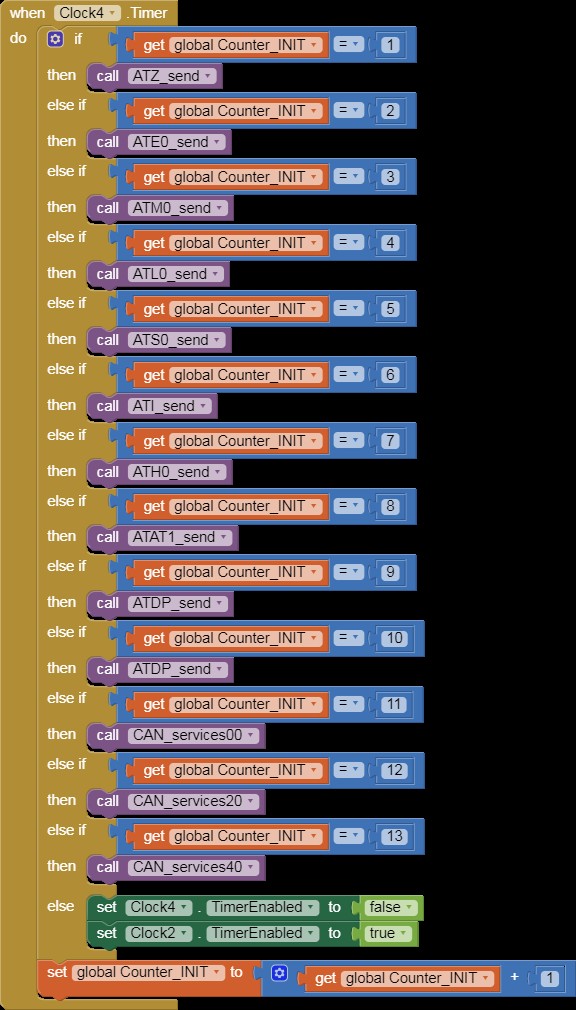

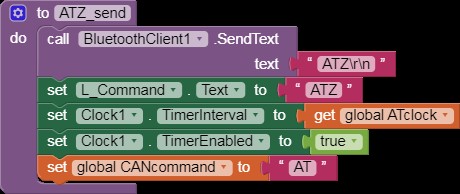

4.1. Initializing the ELM327 Adapter

Initializing the ELM327 adapter is the first step in establishing communication. According to the ELM327 documentation, initialization involves sending a series of AT commands to configure the adapter. Common initialization commands include:

• ATZ: Reset the ELM327 adapter.
• ATE0: Disable echo.
• ATL0: Disable line feeds.
• ATS0: Disable spaces.
• ATSP0: Set protocol to automatic.

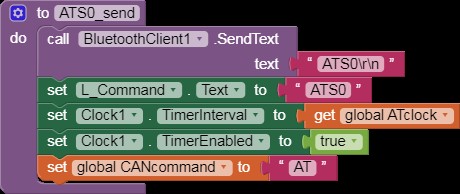

4.2. Sending AT Commands

AT commands are used to configure the ELM327 adapter and request specific information. According to a guide on OBD2 AT commands, sending the correct AT commands ensures the adapter is properly configured for data transmission. Examples of AT commands include:

• ATI: Request adapter identification.
• ATDP: Describe the current protocol.
• ATDPN: Display protocol number.

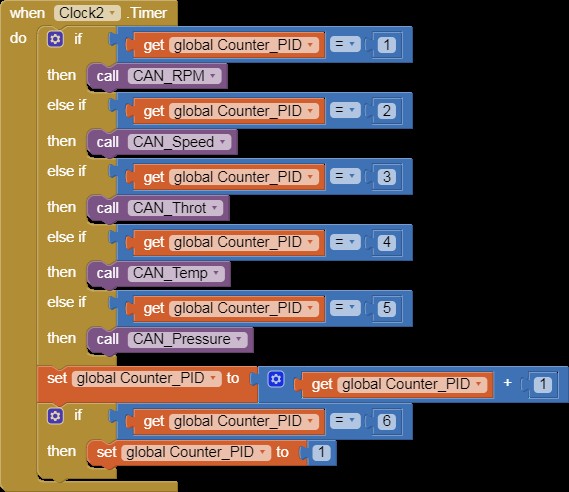

4.3. Handling Data Transmission

Handling data transmission involves sending OBD2 requests and receiving responses. According to the SAE J1979 standard, OBD2 requests are sent in the form of PIDs (Parameter IDs). The ELM327 adapter retrieves the requested data from the vehicle’s ECU and sends it back to the Android device. Common PIDs include:

• 010C: Engine RPM.
• 010D: Vehicle speed.
• 0105: Coolant temperature.

5. Reading and Interpreting OBD2 Data with App Inventor 2

How can you read and interpret OBD2 data received in App Inventor 2 to extract meaningful information?
Reading and interpreting OBD2 data in App Inventor 2 requires parsing responses, converting hexadecimal values, and displaying the data in a user-friendly format, enabling users to understand vehicle performance and diagnostics.

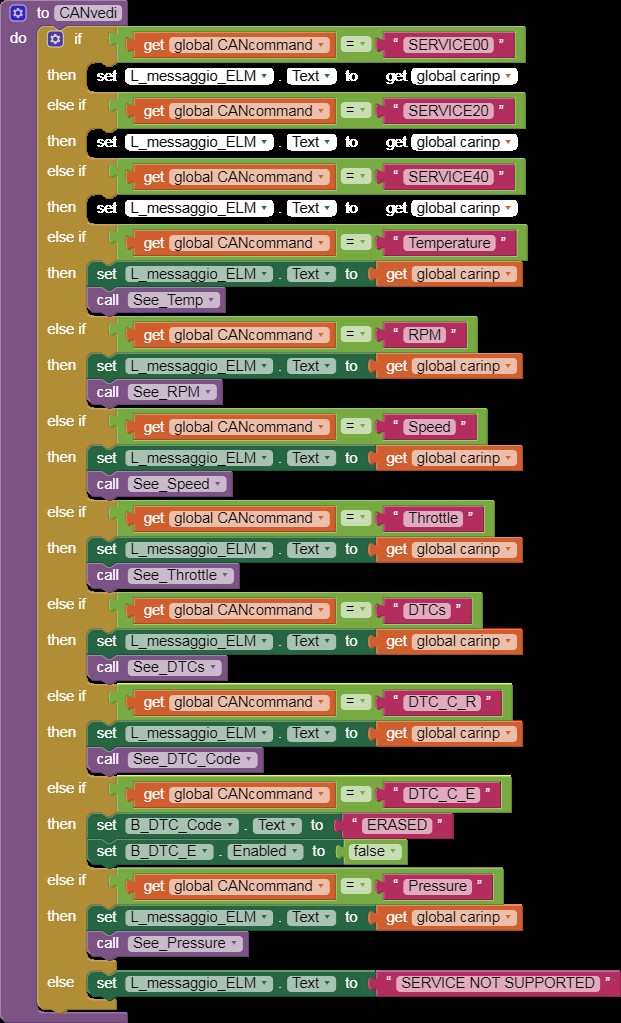

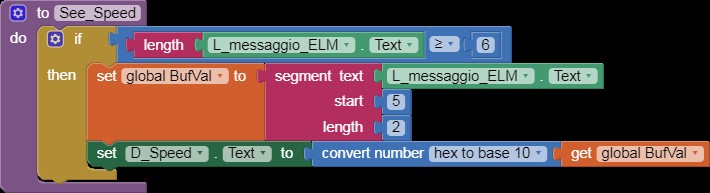

5.1. Parsing Responses

Parsing the responses from the ELM327 adapter is essential for extracting the actual data. According to a tutorial on OBD2 data parsing, the responses are typically in hexadecimal format. App Inventor 2’s text manipulation functions can be used to extract relevant data fields. For example, if you request engine RPM (010C), the response might be 41 0C 0B 4A. The 41 0C indicates a positive response to the PID 010C, and 0B 4A is the data.

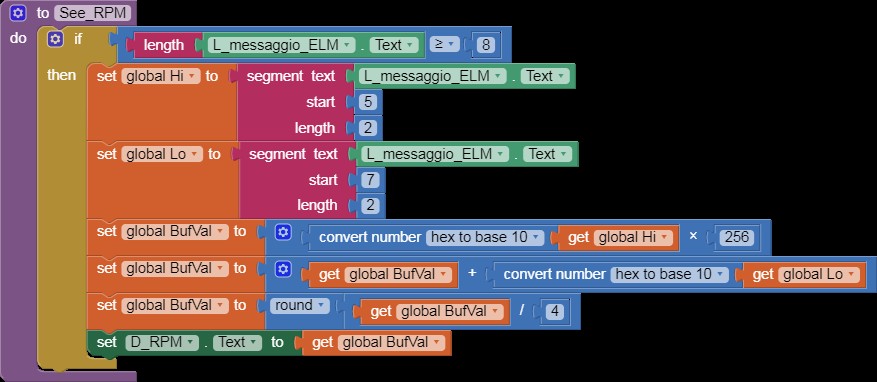

5.2. Converting Hexadecimal Values

OBD2 data is often returned in hexadecimal format and needs to be converted to decimal for interpretation. According to a guide on hexadecimal to decimal conversion, App Inventor 2 provides functions to perform this conversion. For example, to convert the hexadecimal value 0B 4A to decimal:

1. Combine the two bytes: 0B4A.
2. Convert 0B4A from hexadecimal to decimal (2890 in decimal).

5.3. Displaying Data in User-Friendly Format

Displaying the data in a user-friendly format enhances the user experience. According to Android UI/UX best practices, presenting data clearly and concisely is crucial. Use labels, text boxes, and gauges to display the data. For example, engine RPM can be calculated as:

RPM = (Decimal Value / 4)

In this case, RPM = (2890 / 4) = 722.5 RPM. Display this value in a label or gauge for easy reading.

6. Building a Basic OBD2 App with App Inventor 2

What steps are involved in building a basic OBD2 app using App Inventor 2?
Building a basic OBD2 app involves designing the user interface, implementing Bluetooth connectivity, sending OBD2 requests, and displaying the received data, creating a functional tool for vehicle diagnostics.

6.1. Designing the User Interface

Designing the user interface involves creating the layout and adding the necessary components. According to Android UI design principles, a simple and intuitive interface is essential. Common UI elements include:

• Buttons to connect to Bluetooth and request data.
• Labels to display data such as engine RPM, vehicle speed, and coolant temperature.
• List pickers to select the Bluetooth device.

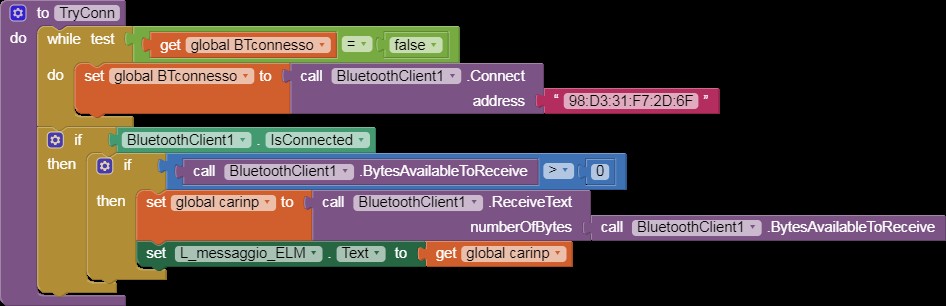

6.2. Implementing Bluetooth Connectivity

Implementing Bluetooth connectivity involves using the BluetoothClient component to establish a connection with the ELM327 adapter. According to the App Inventor documentation, the following steps are required:

1. Add a BluetoothClient component to your project.
2. Use the BluetoothClient.ListPicker to select the ELM327 adapter.
3. Establish the connection using BluetoothClient.Connect.

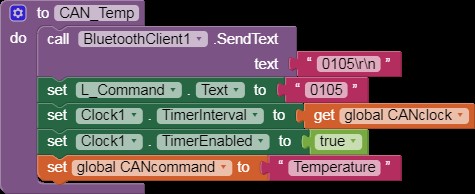

6.3. Sending OBD2 Requests

Sending OBD2 requests involves sending AT commands and PIDs to the ELM327 adapter. According to the SAE J1979 standard, the following steps are required:

1. Send initialization commands such as ATZ, ATE0, ATL0, ATS0, and ATSP0.
2. Send PIDs to request specific data. For example, send 010C to request engine RPM.

6.4. Displaying Received Data

Displaying the received data involves parsing the responses from the ELM327 adapter and displaying the data in a user-friendly format. According to Android UI/UX best practices, use labels, text boxes, and gauges to display the data. For example:

1. Parse the response to extract the data.
2. Convert the hexadecimal value to decimal.
3. Calculate the actual value (e.g., RPM = Decimal Value / 4).
4. Display the value in a label or gauge.

7. Advanced Features and Customizations

What advanced features and customizations can be implemented in an App Inventor 2 OBD2 app?
Advanced features include data logging, custom dashboards, and diagnostic trouble code (DTC) reading, enhancing the app’s functionality and user experience.

7.1. Data Logging

Data logging involves recording OBD2 data over time for analysis. According to a study on vehicle data logging, this feature can help identify trends and potential issues. To implement data logging:

1. Create a data structure to store the data.
2. Use a timer to periodically collect data.
3. Store the data in a file or database.
4. Implement a feature to export the data for analysis.

7.2. Custom Dashboards

Custom dashboards involve creating personalized interfaces to display specific data. According to Android UI design principles, custom dashboards enhance user experience by providing relevant information at a glance. To create a custom dashboard:

1. Design a layout with the desired data fields.
2. Use gauges, charts, and labels to display the data.
3. Allow users to customize the dashboard by selecting which data to display.

7.3. Diagnostic Trouble Code (DTC) Reading

DTC reading involves retrieving and interpreting diagnostic trouble codes from the vehicle’s ECU. According to the SAE J1979 standard, DTCs provide valuable information about potential issues. To implement DTC reading:

1. Send the 03 PID to request DTCs.
2. Parse the response to extract the DTCs.
3. Display the DTCs in a readable format.
4. Provide a description of each DTC.

8. Troubleshooting Common Issues

What are some common issues encountered when using App Inventor 2 with OBD2, and how can they be resolved?
Common issues include Bluetooth connectivity problems, incorrect data readings, and communication errors, each requiring specific troubleshooting steps to ensure a stable and accurate connection.

8.1. Bluetooth Connectivity Problems

Bluetooth connectivity problems are common when using App Inventor 2 with OBD2. According to Bluetooth troubleshooting guides, common causes include:

• Incorrect Bluetooth settings.
• Incompatible Bluetooth devices.
• Weak Bluetooth signal.

To resolve Bluetooth connectivity problems:

1. Ensure Bluetooth is enabled on both the Android device and the ELM327 adapter.
2. Verify that the ELM327 adapter is compatible with your Android device.
3. Move the Android device closer to the ELM327 adapter to improve the signal strength.
4. Restart the Bluetooth service on the Android device.

8.2. Incorrect Data Readings

Incorrect data readings can occur due to incorrect parsing or conversion of OBD2 data. According to OBD2 data interpretation guides, common causes include:

• Incorrect PID requests.
• Incorrect parsing of the response.
• Incorrect conversion of hexadecimal values.

To resolve incorrect data readings:

1. Verify that the PID requests are correct.
2. Ensure that the response is parsed correctly.
3. Double-check the hexadecimal to decimal conversion.
4. Consult the vehicle’s service manual for correct data values.

8.3. Communication Errors

Communication errors can occur due to problems with the ELM327 adapter or the vehicle’s ECU. According to ELM327 troubleshooting guides, common causes include:

• Faulty ELM327 adapter.
• Incompatible OBD2 protocol.
• ECU communication problems.

To resolve communication errors:

1. Test the ELM327 adapter with another vehicle.
2. Ensure that the ELM327 adapter supports the vehicle’s OBD2 protocol.
3. Check the vehicle’s ECU for communication problems.
4. Consult a professional mechanic for assistance.

9. Tips and Best Practices for App Inventor 2 OBD2 Development

What tips and best practices can enhance your App Inventor 2 OBD2 development process?
Effective debugging, optimized data handling, and secure communication are vital for enhancing the development process and ensuring the reliability of your App Inventor 2 OBD2 app.

9.1. Effective Debugging

Effective debugging is crucial for identifying and resolving issues during development. According to software development best practices, systematic debugging saves time and improves code quality. Tips for effective debugging include:

• Use App Inventor 2’s debugging tools to monitor data flow.
• Add error handling to catch and report errors.
• Test the app on multiple devices.
• Use logging to track data and identify issues.

9.2. Optimized Data Handling

Optimized data handling ensures efficient processing of OBD2 data. According to data management best practices, efficient data handling improves performance and reduces resource usage. Tips for optimized data handling include:

• Use efficient data structures to store OBD2 data.
• Minimize the amount of data transmitted over Bluetooth.
• Use background processing to handle data logging and analysis.
• Optimize the data parsing and conversion algorithms.

9.3. Secure Communication

Secure communication is essential to protect sensitive vehicle data. According to security best practices, secure communication prevents unauthorized access and data breaches. Tips for secure communication include:

• Use encrypted Bluetooth connections.
• Implement authentication to verify the identity of the ELM327 adapter.
• Protect user data with encryption.
• Follow secure coding practices to prevent vulnerabilities.

10. Real-World Applications of App Inventor 2 OBD2 Apps

What are some real-world applications of OBD2 apps created with App Inventor 2?
Real-world applications include creating custom gauges, vehicle performance monitoring, and fleet management solutions, showcasing the versatility and practical benefits of App Inventor 2 OBD2 apps.

10.1. Creating Custom Gauges

Custom gauges allow users to create personalized dashboards to monitor specific vehicle parameters. According to a case study on custom vehicle interfaces, these gauges enhance the driving experience by providing real-time feedback. Examples include:

• Boost gauges for turbocharged vehicles.
• Air/fuel ratio gauges for performance tuning.
• Oil pressure and temperature gauges for engine monitoring.

10.2. Vehicle Performance Monitoring

Vehicle performance monitoring involves tracking various parameters to assess the vehicle’s performance. According to a study on vehicle performance analysis, this can help identify potential issues and optimize driving habits. Examples include:

• Tracking fuel efficiency to reduce fuel consumption.
• Monitoring engine performance to identify potential problems.
• Analyzing driving habits to improve safety.

10.3. Fleet Management Solutions

Fleet management solutions involve using OBD2 data to manage and monitor a fleet of vehicles. According to a report on fleet management technology, this can improve efficiency and reduce costs. Examples include:

• Tracking vehicle location to optimize routes.
• Monitoring vehicle maintenance to prevent breakdowns.
• Analyzing driver behavior to improve safety.

11. Exploring Advanced OBD2 PIDs for Enhanced Diagnostics

What advanced OBD2 PIDs can be used to enhance vehicle diagnostics?
Advanced PIDs for parameters like fuel trim, oxygen sensor readings, and misfire detection can significantly enhance diagnostic capabilities, offering deeper insights into vehicle performance and potential issues.

11.1. Fuel Trim PIDs

Fuel trim PIDs provide insights into how the engine control unit (ECU) adjusts the air-fuel mixture. According to automotive diagnostic guides, fuel trim values help identify issues such as vacuum leaks or faulty oxygen sensors. Key fuel trim PIDs include:

• 0106: Short term fuel trim bank 1.
• 0107: Long term fuel trim bank 1.
• 0108: Short term fuel trim bank 2.
• 0109: Long term fuel trim bank 2.

11.2. Oxygen Sensor PIDs

Oxygen sensor PIDs provide data on the performance of the oxygen sensors. According to emission control guides, oxygen sensor readings help diagnose issues related to the catalytic converter or fuel mixture. Key oxygen sensor PIDs include:

• 0114: Oxygen sensor voltage bank 1 sensor 1.
• 0115: Oxygen sensor voltage bank 1 sensor 2.
• 011D: Oxygen sensor voltage bank 2 sensor 1.
• 011E: Oxygen sensor voltage bank 2 sensor 2.

11.3. Misfire Detection PIDs

Misfire detection PIDs help identify engine misfires. According to engine diagnostic manuals, misfires can cause reduced performance and increased emissions. Key misfire detection PIDs include:

• 0111: Number of misfires for the last 10 drive cycles.
• 0144: Misfire counts for each cylinder.

12. Legal and Ethical Considerations

What legal and ethical considerations should be kept in mind when working with OBD2 data and App Inventor 2?
Data privacy, security, and compliance with regulations are vital ethical considerations to ensure responsible and legal use of vehicle data.

12.1. Data Privacy

Data privacy is a significant concern when working with OBD2 data. According to data privacy laws, personal information must be protected. Considerations include:

• Anonymizing data to protect driver identity.
• Obtaining consent before collecting and using data.
• Implementing security measures to protect data from unauthorized access.

12.2. Security

Security is essential to prevent unauthorized access to vehicle systems. According to cybersecurity best practices, security measures must be implemented to protect against hacking and data breaches. Considerations include:

• Using secure communication protocols.
• Implementing authentication to verify user identity.
• Protecting against injection attacks.

12.3. Compliance with Regulations

Compliance with regulations is necessary to ensure legal use of OBD2 data. According to automotive regulations, compliance with standards such as GDPR and CCPA is essential. Considerations include:

• Understanding and complying with relevant laws and regulations.
• Ensuring transparency in data collection and usage.
• Providing users with control over their data.

13. How MERCEDES-DIAGNOSTIC-TOOL.EDU.VN Can Help

How can MERCEDES-DIAGNOSTIC-TOOL.EDU.VN assist you in your App Inventor 2 OBD2 projects?
MERCEDES-DIAGNOSTIC-TOOL.EDU.VN offers expert guidance, resources, and support for creating advanced and effective App Inventor 2 OBD2 applications.

13.1. Expert Guidance

Our team at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN provides expert guidance to help you navigate the complexities of App Inventor 2 and OBD2 integration. We offer:

• Step-by-step tutorials on setting up and using App Inventor 2 with OBD2.
• Personalized advice on designing and building custom OBD2 apps.
• Troubleshooting assistance to resolve common issues.

13.2. Resources and Tools

We offer a wide range of resources and tools to support your App Inventor 2 OBD2 projects. These include:

• Sample code and templates to get you started quickly.
• Comprehensive documentation on OBD2 PIDs and AT commands.
• Links to useful libraries and extensions.

13.3. Support and Community

Our support team is available to answer your questions and provide assistance. We also foster a community of App Inventor 2 and OBD2 enthusiasts where you can share your projects and learn from others. Join our community to:

• Connect with other developers.
• Share your projects and get feedback.
• Learn from experienced users.

14. Future Trends in App Inventor 2 and OBD2 Technology

What are the emerging trends in App Inventor 2 and OBD2 technology that could shape future applications?
Future trends include enhanced AI integration, improved security measures, and expanded data accessibility, promising more sophisticated and user-friendly OBD2 applications.

14.1. Enhanced AI Integration

Enhanced AI integration can enable more sophisticated data analysis and predictive diagnostics. According to AI in automotive reports, AI can be used to:

• Predict potential vehicle issues based on OBD2 data.
• Provide personalized maintenance recommendations.
• Optimize driving habits for fuel efficiency.

14.2. Improved Security Measures

Improved security measures are crucial to protect against hacking and data breaches. According to cybersecurity trends, future OBD2 apps will incorporate:

• Encrypted communication protocols.
• Advanced authentication methods.
• Real-time threat detection.

14.3. Expanded Data Accessibility

Expanded data accessibility will enable users to access more vehicle data and integrate it with other systems. According to connected car trends, future OBD2 apps will:

• Provide access to a wider range of OBD2 PIDs.
• Integrate with cloud-based data platforms.
• Enable seamless data sharing with other apps and services.

15. Success Stories: Innovative App Inventor 2 OBD2 Projects

What are some inspiring success stories of innovative OBD2 projects created with App Inventor 2?
Examples include personalized driving assistants, advanced diagnostic tools, and custom fleet management systems, demonstrating the versatility and real-world impact of App Inventor 2 OBD2 apps.

15.1. Personalized Driving Assistants

Personalized driving assistants use OBD2 data to provide real-time feedback and guidance to drivers. According to user testimonials, these apps can:

• Improve fuel efficiency by optimizing driving habits.
• Enhance safety by providing alerts for potential hazards.
• Provide personalized recommendations for vehicle maintenance.

15.2. Advanced Diagnostic Tools

Advanced diagnostic tools use OBD2 data to diagnose and troubleshoot vehicle issues. According to automotive technician feedback, these apps can:

• Identify potential problems before they become major issues.
• Provide detailed information on diagnostic trouble codes.
• Guide users through the repair process.

15.3. Custom Fleet Management Systems

Custom fleet management systems use OBD2 data to manage and monitor a fleet of vehicles. According to fleet manager reports, these systems can:

• Improve efficiency by optimizing routes and schedules.
• Reduce costs by preventing breakdowns and optimizing maintenance.
• Enhance safety by monitoring driver behavior and providing alerts for potential hazards.

FAQ: App Inventor 2 OBD2

Q1: Which ELM327 adapter is best for App Inventor 2?

The best ELM327 adapter for App Inventor 2 depends on your specific needs. Bluetooth adapters are generally easier to set up, while Wi-Fi adapters may offer better compatibility with certain devices. Ensure the adapter supports the OBD2 protocols used by your vehicle.

Q2: How do I connect App Inventor 2 to my ELM327 adapter?

To connect App Inventor 2 to your ELM327 adapter, use the BluetoothClient component to establish a connection. List available Bluetooth devices, select your ELM327 adapter, and connect.

Q3: What are common OBD2 PIDs to monitor?

Common OBD2 PIDs to monitor include engine RPM (010C), vehicle speed (010D), coolant temperature (0105), and intake air temperature (010F).

Q4: How do I convert hexadecimal OBD2 data to decimal?

Use App Inventor 2’s text manipulation functions to extract the hexadecimal value, then convert it to decimal using built-in functions or custom algorithms.

Q5: Can I use App Inventor 2 to read and clear diagnostic trouble codes (DTCs)?

Yes, you can use App Inventor 2 to read DTCs by sending the 03 PID. Clearing DTCs requires sending specific commands, which should be done with caution.

Q6: What security measures should I take when using App Inventor 2 with OBD2?

Use encrypted Bluetooth connections, implement authentication to verify the identity of the ELM327 adapter, and protect user data with encryption.

Q7: How can I log OBD2 data over time using App Inventor 2?

Create a data structure to store the data, use a timer to periodically collect data, and store the data in a file or database.

Q8: Are there any legal considerations when collecting OBD2 data?

Yes, data privacy laws require you to protect personal information, obtain consent before collecting and using data, and implement security measures to protect data from unauthorized access.

Q9: Where can I find sample App Inventor 2 OBD2 projects?

MERCEDES-DIAGNOSTIC-TOOL.EDU.VN provides sample code and templates to help you get started quickly. You can also find projects on the App Inventor community forums.

Q10: How do I troubleshoot communication errors between App Inventor 2 and the ELM327 adapter?

Verify that the ELM327 adapter is compatible with your vehicle, ensure that the adapter supports the vehicle’s OBD2 protocol, and check the vehicle’s ECU for communication problems.

At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we’re dedicated to empowering you with the knowledge and tools necessary to harness the full potential of your Mercedes-Benz. Our expert guidance and resources are designed to simplify complex automotive diagnostics and customizations, ensuring you get the most out of your vehicle.

Ready to take control of your Mercedes-Benz diagnostics? Contact us today for personalized assistance and expert advice.

Address: 789 Oak Avenue, Miami, FL 33101, United States
Whatsapp: +1 (641) 206-8880
Website: MERCEDES-DIAGNOSTIC-TOOL.EDU.VN

Don’t wait—unlock the hidden capabilities of your Mercedes-Benz now!

Man in the Middle

Screen

blocks

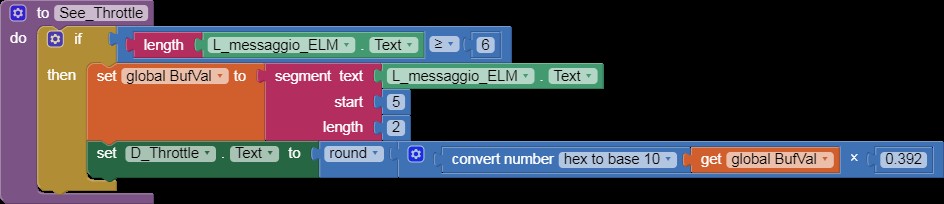

See_Throttle944×204 22 KB

See_Speed

ATS0_send

See_RPM

CAN_Temp

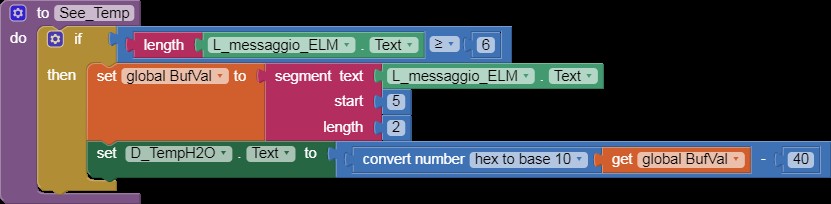

See_Temp

ATL0_send

ATM0_send

ATE0_send

ATZ_send

CANvedi

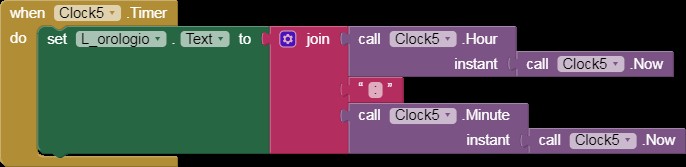

when Clock5 Timer

when Clock4 Timer

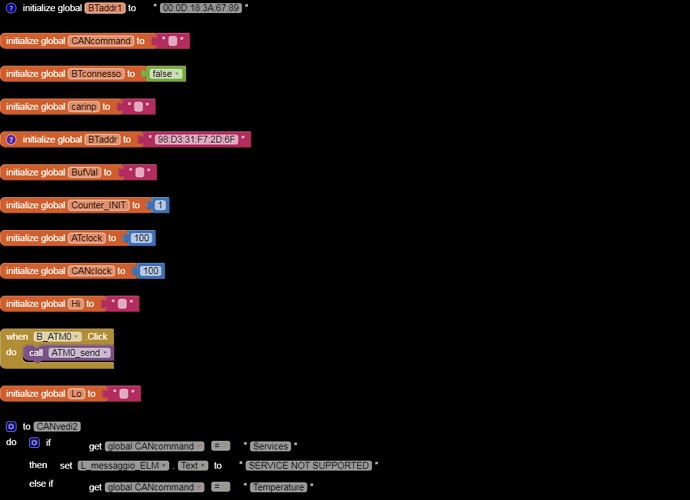

veroinit

TryConn

when Clock2 Timer

![when Clock1 Timer](https://community.appinventor.mit.edu/uploads/default/original/2X/3/39a840a54b
