Where Is The Audi Q5 OBD2 Port Location? Your Ultimate Guide

Finding the Audi Q5 Obd2 Port Location is essential for diagnostics and maintenance. This guide from MERCEDES-DIAGNOSTIC-TOOL.EDU.VN pinpoints its location and explains its uses. We’ll also show how our tools can help you keep your Audi Q5 running smoothly with enhanced vehicle diagnostics.

1. Understanding the Audi Q5 OBD2 Port

The On-Board Diagnostics II (OBD2) port in your Audi Q5 is a crucial interface for accessing your vehicle’s computer system. It allows technicians and car owners to diagnose problems, monitor performance, and even program certain features. Since 1996, OBD2 ports have been standardized across most vehicles, but their locations can vary. Knowing where to find it in your Audi Q5 is the first step toward effective vehicle maintenance. According to the Environmental Protection Agency (EPA), OBD2 systems monitor the performance of critical engine components.

1.1. What is an OBD2 Port?

The OBD2 port, or On-Board Diagnostics II port, is a standardized interface found in most vehicles manufactured after 1996. Its primary function is to provide access to the vehicle’s engine control unit (ECU) and other computer systems. This access enables the reading of diagnostic trouble codes (DTCs), monitoring of real-time data, and sometimes even reprogramming of certain vehicle functions. The Society of Automotive Engineers (SAE) sets the standards for OBD2 protocols.

1.2. Why is the OBD2 Port Important?

The OBD2 port is vital for several reasons:

• Diagnostics: It allows mechanics and car owners to diagnose vehicle problems quickly by reading DTCs.
• Monitoring: It provides real-time data about engine performance, fuel efficiency, and other critical parameters.
• Maintenance: It can be used to reset maintenance reminders and perform certain calibration procedures.
• Emissions Testing: It’s required for emissions testing in many regions, ensuring vehicles meet environmental standards.

1.3. Common Uses of the OBD2 Port

The OBD2 port can be used for a variety of purposes, including:

• Reading and clearing diagnostic trouble codes (DTCs)
• Monitoring engine performance in real-time
• Checking emissions readiness
• Programming certain vehicle functions
• Installing aftermarket devices, such as performance tuners or GPS trackers

2. Locating the OBD2 Port in Your Audi Q5

The OBD2 port location in an Audi Q5 is typically in a standard location, but knowing exactly where to look can save you time.

2.1. Standard Location in Audi Q5 Models

In most Audi Q5 models, the OBD2 port is located under the dashboard on the driver’s side. Specifically, it is usually found above the brake pedal and to the left of the steering column. You may need to crouch down and look under the dash to spot it.

2.2. Step-by-Step Guide to Finding the Port

1. Get Ready: Park your Audi Q5 in a well-lit area and turn off the engine.
2. Locate the Area: Position yourself on the driver’s side of the vehicle.
3. Look Under the Dash: Crouch down and look under the dashboard, above the brake pedal.
4. Use a Flashlight: If the area is dark, use a flashlight to help you locate the port.
5. Identify the Port: The OBD2 port is a 16-pin connector, usually trapezoidal.

2.3. What to Do if You Can’t Find It

If you have trouble locating the OBD2 port in your Audi Q5, consider the following:

• Check the Owner’s Manual: Your owner’s manual may provide a diagram or specific instructions.
• Consult Online Forums: Online Audi forums can offer model-specific advice.
• Visit a Mechanic: A professional mechanic can quickly locate the port and assist with your diagnostic needs.
• Contact MERCEDES-DIAGNOSTIC-TOOL.EDU.VN: Our experts can provide guidance based on your specific model and year.

3. Tools and Devices That Connect to the OBD2 Port

Various tools and devices can connect to the OBD2 port, each serving different purposes.

3.1. Basic OBD2 Scanners

Basic OBD2 scanners are handheld devices that read and clear diagnostic trouble codes (DTCs). They are a cost-effective option for basic diagnostics. These scanners typically display the DTCs and their descriptions, allowing you to understand the problem and take appropriate action. According to a study by AutoMD, using a basic OBD2 scanner can help car owners save an average of $100 per repair.

3.2. Advanced Diagnostic Tools

Advanced diagnostic tools offer more features than basic scanners. They can:

• Display live data streams
• Perform bi-directional tests
• Reset service lights
• Program certain vehicle functions

These tools are often used by professional mechanics for in-depth diagnostics and repairs. A report by Bosch indicates that advanced diagnostic tools can reduce diagnostic time by up to 50%.

3.3. Performance Monitors and Tuners

Performance monitors and tuners connect to the OBD2 port to monitor vehicle performance and adjust engine parameters. They can display data such as:

• Boost pressure
• Air-fuel ratio
• Engine temperature

Tuners can also adjust parameters like:

• Fuel delivery
• Ignition timing
• Boost levels

These devices are popular among car enthusiasts looking to enhance their vehicle’s performance. According to a study by SEMA, the performance aftermarket industry is a multi-billion dollar market.

3.4. GPS Trackers and Monitoring Devices

GPS trackers and monitoring devices use the OBD2 port to track vehicle location and monitor driving behavior. These devices can provide real-time location data, track speed and mileage, and even send alerts for aggressive driving. They are commonly used by:

• Fleet managers
• Parents of young drivers
• Individuals concerned about vehicle theft

A report by ABI Research estimates that the telematics market will continue to grow significantly in the coming years.

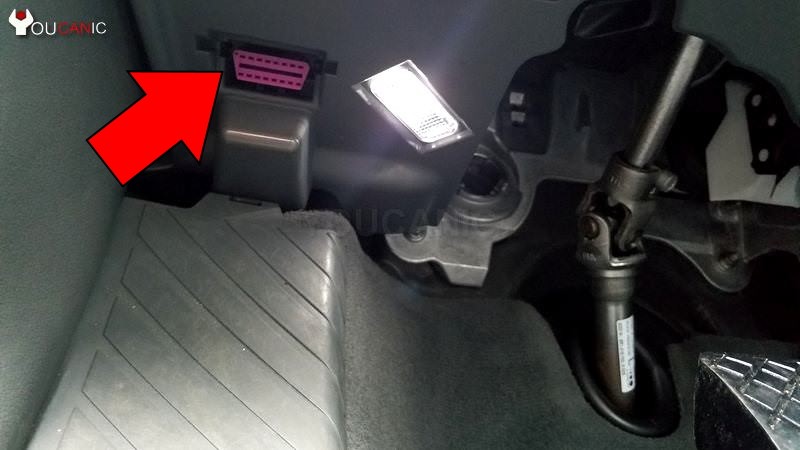

Audi Obd2 Port Location

4. Diagnosing Common Issues Using the OBD2 Port on Your Audi Q5

The OBD2 port is a valuable tool for diagnosing various issues in your Audi Q5.

4.1. Reading Diagnostic Trouble Codes (DTCs)

When your Audi Q5 experiences a problem, it will often store a diagnostic trouble code (DTC) in its computer system. These codes can be read using an OBD2 scanner. The DTCs provide valuable information about the nature and location of the problem.

1. Connect the Scanner: Plug the OBD2 scanner into the OBD2 port.
2. Turn on the Ignition: Turn the ignition to the “on” position without starting the engine.
3. Read the Codes: Follow the scanner’s instructions to read the DTCs.
4. Interpret the Codes: Use a DTC lookup tool to understand the meaning of each code.

4.2. Common DTCs and Their Meanings for Audi Q5

DTC	Description	Possible Causes
P0171	System Too Lean (Bank 1)	Vacuum leak, faulty MAF sensor, fuel pump issue
P0300	Random/Multiple Cylinder Misfire Detected	Faulty spark plugs, ignition coils, fuel injectors
P0420	Catalyst System Efficiency Below Threshold (Bank 1)	Faulty catalytic converter, exhaust leak, O2 sensor issue
P0441	Evaporative Emission Control System Incorrect Purge Flow	Faulty purge valve, vacuum leak, EVAP system issue
P0455	Evaporative Emission Control System Leak Detected (Gross Leak)	Loose gas cap, cracked EVAP hose, faulty vent valve
P0507	Idle Air Control System RPM Higher Than Expected	Vacuum leak, faulty IAC valve, throttle body issue
P0606	ECM/PCM Processor Fault	Faulty ECM/PCM, wiring issue, sensor malfunction
P0102	Mass or Volume Air Flow Circuit Low Input	Dirty or faulty MAF sensor, wiring issue, intake leak
P0113	Intake Air Temperature Circuit High Input	Faulty IAT sensor, wiring issue, open circuit
P0321	Ignition/Distributor Engine Speed Input Circuit Range/Performance	Faulty crankshaft position sensor, wiring issue, timing issue
B100B29	Component Protection Active	Component requires matching to the vehicle, often after replacement
U0100	Lost Communication With Engine Control Module/Powertrain Control Module “A”	Wiring issue, faulty ECM/PCM, CAN bus problem
U0101	Lost Communication With Transmission Control Module	Wiring issue, faulty TCM, CAN bus problem
C1201	ABS Activation	ABS system malfunction, wheel speed sensor issue, hydraulic issue
P1640	Driver Circuit Malfunction	Wiring issue, faulty driver module, sensor malfunction

4.3. Clearing DTCs

Once you have identified and resolved the underlying issue, you can clear the DTCs using the OBD2 scanner. Clearing the codes will turn off the check engine light.

1. Resolve the Issue: Fix the problem that triggered the DTC.
2. Connect the Scanner: Plug the OBD2 scanner into the OBD2 port.
3. Turn on the Ignition: Turn the ignition to the “on” position without starting the engine.
4. Clear the Codes: Follow the scanner’s instructions to clear the DTCs.
5. Verify the Fix: Start the engine and ensure the check engine light does not reappear.

4.4. When to Seek Professional Help

While the OBD2 port can help you diagnose many issues, some problems require professional attention. Seek help if:

• You are unable to interpret the DTCs
• The problem persists after clearing the codes
• You lack the tools or expertise to perform the necessary repairs

5. Advanced Functions and Customization via the OBD2 Port

Beyond basic diagnostics, the OBD2 port can be used for advanced functions and customization.

5.1. Bi-Directional Control

Bi-directional control allows you to send commands to the vehicle’s computer system. This can be used to:

• Test individual components
• Activate certain functions
• Perform calibrations

For example, you can use bi-directional control to activate the fuel pump, cycle the ABS system, or calibrate the throttle position sensor.

5.2. Live Data Streaming

Live data streaming allows you to monitor real-time data from the vehicle’s sensors. This can be used to:

• Diagnose intermittent problems
• Monitor engine performance
• Check sensor readings

For example, you can monitor the oxygen sensor readings, fuel trim values, and engine temperature in real-time.

5.3. Reprogramming and ECU Tuning

Reprogramming and ECU tuning involve modifying the vehicle’s computer software to:

• Improve performance
• Increase fuel efficiency
• Customize certain functions

This is typically done by professional tuners using specialized software and hardware. According to a report by Grand View Research, the automotive ECU market is expected to continue to grow in the coming years.

Audi Obd2 Port Location A3 A4 A6 Q3 Q5 Q7

6. Safety Precautions When Using the OBD2 Port

When using the OBD2 port, it’s essential to follow safety precautions to avoid damaging your vehicle or scanner.

6.1. Avoiding Electrical Damage

• Use Quality Equipment: Use high-quality OBD2 scanners and cables.
• Proper Connections: Ensure the scanner is securely connected to the OBD2 port before turning on the ignition.
• Power Surges: Protect against power surges by using a surge protector.
• Disconnect Properly: Disconnect the scanner properly after use.

6.2. Preventing Data Corruption

• Stable Power: Ensure a stable power supply to the vehicle during reprogramming.
• Follow Instructions: Follow the scanner’s instructions carefully during programming.
• Backup Data: Back up important data before making changes.
• Avoid Interruptions: Avoid interruptions during programming.

6.3. Protecting Your Vehicle’s Computer System

• Use Reputable Software: Use reputable software from trusted sources.
• Understand the Risks: Understand the risks involved before making changes to the vehicle’s computer system.
• Seek Professional Help: Seek professional help if you are unsure about a procedure.

7. Choosing the Right OBD2 Scanner for Your Audi Q5

Selecting the right OBD2 scanner is crucial for effective diagnostics and maintenance.

7.1. Factors to Consider

• Compatibility: Ensure the scanner is compatible with your Audi Q5 model and year.
• Features: Consider the features you need, such as basic code reading, live data streaming, or bi-directional control.
• Ease of Use: Choose a scanner that is easy to use and has a clear display.
• Price: Set a budget and choose a scanner that offers the best value for your money.
• Reviews: Read reviews from other users to get an idea of the scanner’s performance and reliability.

7.2. Recommended OBD2 Scanners for Audi Q5

Scanner	Features	Price
Basic Code Reader	Reads and clears DTCs	$20-$50
Mid-Range Scanner	Reads and clears DTCs, displays live data	$50-$150
Advanced Diagnostic Tool	Reads and clears DTCs, displays live data, performs bi-directional tests, resets service lights	$150-$500
Professional-Grade Scanner	Reads and clears DTCs, displays live data, performs bi-directional tests, resets service lights, programs certain vehicle functions, supports advanced protocols (e.g., CAN, J1850, ISO9141)	$500+
Bluetooth OBD2 Adapter	Reads and clears DTCs, displays live data (requires smartphone or tablet)	$20-$100

7.3. Where to Buy OBD2 Scanners

OBD2 scanners can be purchased from a variety of sources, including:

• Auto Parts Stores: Local auto parts stores like AutoZone and Advance Auto Parts
• Online Retailers: Online retailers like Amazon and eBay
• Specialty Tool Stores: Specialty tool stores like Snap-on and Mac Tools
• Direct from Manufacturers: Directly from manufacturers like Autel and Launch

8. Maintaining Your Audi Q5 with OBD2 Diagnostics

Regular OBD2 diagnostics can help you keep your Audi Q5 running smoothly.

8.1. Regular Check-Ups

Perform regular OBD2 check-ups to identify potential problems early. This can help you avoid costly repairs down the road.

8.2. Monitoring Performance

Use the OBD2 port to monitor engine performance and identify any issues that may be affecting fuel efficiency or power.

8.3. Addressing Issues Promptly

Address any issues identified by the OBD2 diagnostics promptly. This can help prevent further damage and ensure your Audi Q5 remains in good condition.

Can

9. Troubleshooting Common OBD2 Connection Problems

Sometimes, you may encounter problems when connecting to the OBD2 port.

9.1. Scanner Not Connecting

• Check the Connection: Ensure the scanner is securely connected to the OBD2 port.
• Check the Power: Ensure the scanner has power.
• Check the Compatibility: Ensure the scanner is compatible with your Audi Q5.
• Check the Fuse: Check the fuse for the OBD2 port.

9.2. Scanner Not Reading Codes

• Turn on the Ignition: Ensure the ignition is turned to the “on” position without starting the engine.
• Follow Instructions: Follow the scanner’s instructions carefully.
• Check for Damage: Check the OBD2 port and scanner for damage.

9.3. Scanner Displaying Incorrect Data

• Check for Updates: Ensure the scanner has the latest software updates.
• Check the Settings: Check the scanner’s settings to ensure they are correct.
• Use Reputable Software: Use reputable software from trusted sources.

10. Why Choose MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for Your Diagnostic Needs?

At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we understand the intricacies of vehicle diagnostics and offer expert guidance to help you maintain your Audi Q5.

10.1. Expert Guidance and Support

Our team of experienced technicians provides expert guidance and support for all your diagnostic needs. We can help you:

• Locate the OBD2 port in your Audi Q5
• Choose the right OBD2 scanner
• Interpret diagnostic trouble codes
• Troubleshoot common OBD2 connection problems

10.2. Comprehensive Diagnostic Tools and Services

We offer a comprehensive range of diagnostic tools and services to help you keep your Audi Q5 running smoothly. Our services include:

• OBD2 scanner sales and rentals
• Diagnostic trouble code (DTC) lookup
• Bi-directional control testing
• Live data streaming analysis
• ECU reprogramming and tuning

10.3. Maximizing Your Audi Q5’s Performance with Our Tools

By using our tools and services, you can:

• Identify potential problems early
• Avoid costly repairs
• Improve fuel efficiency
• Enhance engine performance
• Customize certain vehicle functions

FAQ: Common Questions About the Audi Q5 OBD2 Port

Where can I find the Audi Q5 OBD2 port location?

The Audi Q5 OBD2 port is typically located under the dashboard on the driver’s side, above the brake pedal and to the left of the steering column.

What kind of scanner do I need for my Audi Q5 OBD2 port?

You can use a basic OBD2 scanner for reading and clearing diagnostic trouble codes (DTCs), or an advanced scanner for live data streaming and bi-directional control.

How do I access the Audi Q5 OBD2 port if it’s hard to reach?

Use a flashlight and crouch down to get a better view. If necessary, consult your owner’s manual or an online forum for model-specific guidance.

Can I use the OBD2 port to improve my Audi Q5’s performance?

Yes, you can use performance monitors and tuners that connect to the OBD2 port to monitor and adjust engine parameters, potentially improving performance.

What if my OBD2 scanner won’t connect to my Audi Q5?

Check the connection, power, and compatibility of the scanner. Also, ensure the ignition is turned on and check the fuse for the OBD2 port.

Is it safe to reprogram my Audi Q5 through the OBD2 port?

Reprogramming should be done with caution, using reputable software and following instructions carefully. It’s often best left to professionals.

What are some common issues I can diagnose using the OBD2 port on my Audi Q5?

Common issues include engine misfires, lean fuel conditions, catalytic converter problems, and evaporative emission control system leaks.

How often should I check my Audi Q5’s OBD2 port for issues?

Regular check-ups, especially when you notice unusual performance or warning lights, can help identify potential problems early.

Will using an OBD2 scanner void my Audi Q5’s warranty?

Using an OBD2 scanner for basic diagnostics should not void your warranty, but modifying the vehicle’s computer system could affect it.

Where can I buy a reliable OBD2 scanner for my Audi Q5?

You can purchase OBD2 scanners from auto parts stores, online retailers, specialty tool stores, or directly from manufacturers.

Maintaining your Audi Q5 involves understanding and utilizing its OBD2 port for diagnostics and performance monitoring. With the right tools and knowledge, you can keep your vehicle running smoothly and efficiently.

Ready to take control of your Audi Q5’s health? Contact us at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for expert guidance and support. Whether you need help locating your OBD2 port, choosing the right scanner, or interpreting diagnostic codes, our team is here to assist. Reach out to us today for personalized advice and comprehensive diagnostic solutions. Address: 789 Oak Avenue, Miami, FL 33101, United States. Whatsapp: +1 (641) 206-8880. Website: MERCEDES-DIAGNOSTIC-TOOL.EDU.VN. Let us help you keep your Audi Q5 in top condition.
