What Is A Geotab OBD2 Harness And Why Do You Need It?

A Geotab Obd2 Harness is a crucial tool for connecting Geotab GO devices to your vehicle’s onboard diagnostic system, and at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we help you get the most out of it. It facilitates seamless data transfer for vehicle tracking, diagnostics, and performance monitoring. Discover how to use it effectively, its benefits, and how it simplifies vehicle management for Mercedes-Benz owners, automotive technicians, and fleet managers.

1. Understanding the Geotab OBD2 Harness

1.1 What is an OBD2 Harness?

An OBD2 (On-Board Diagnostics II) harness, like the Geotab OBD2 harness, is a cable assembly that connects a vehicle’s OBD2 port to an external device. According to the Society of Automotive Engineers (SAE), the OBD2 port is a standardized interface found in most vehicles manufactured after 1996, providing access to a wealth of vehicle data.

1.2 Purpose of the Geotab OBD2 Harness

The primary purpose of a Geotab OBD2 harness is to enable communication between the vehicle’s computer and a Geotab GO device. This connection allows for:

• Vehicle Tracking: Real-time location monitoring.
• Engine Diagnostics: Access to diagnostic trouble codes (DTCs) and engine performance data.
• Driver Behavior Monitoring: Tracking driving habits such as speeding, harsh braking, and idling.
• Data Logging: Recording vehicle data for analysis and reporting.

1.3 Components of a Geotab OBD2 Harness

A typical Geotab OBD2 harness includes:

• OBD2 Connector: Plugs into the vehicle’s OBD2 port.
• Geotab GO Device Connector: Connects to the Geotab GO device.
• Wiring: Carries data and power between the vehicle and the GO device.
• Adapters: Additional adapters may be included to accommodate various vehicle models and installation scenarios.

1.4 Types of Geotab OBD2 Harnesses

Geotab offers various types of OBD2 harnesses to suit different vehicle types and installation needs. Common types include:

• Direct Plug-In Harness: Plugs directly into the OBD2 port without relocation.
• T-Harness: Allows the original OBD2 port to remain accessible while connecting the Geotab GO device.
• Adapter Harness: Used for specific vehicle models or to adapt to different connector types.

2. Benefits of Using a Geotab OBD2 Harness

2.1 Enhanced Vehicle Tracking

A Geotab OBD2 harness enables precise vehicle tracking, providing real-time location data that is essential for fleet management and security. According to a study by Berg Insight, the telematics market is expected to grow significantly, driven by the increasing demand for vehicle tracking solutions.

2.2 Comprehensive Engine Diagnostics

With a Geotab OBD2 harness, you can access a wealth of engine diagnostic data, including:

• Diagnostic Trouble Codes (DTCs): Identify issues with the engine, transmission, and other systems.
• Engine Performance Metrics: Monitor parameters such as RPM, coolant temperature, and fuel consumption.
• Maintenance Alerts: Receive notifications for scheduled maintenance based on mileage or engine hours.

2.3 Improved Driver Behavior Monitoring

The Geotab OBD2 harness facilitates the monitoring of driver behavior, helping to identify and correct unsafe driving habits. Features include:

• Speeding Alerts: Notifications when a driver exceeds the speed limit.
• Harsh Braking Detection: Identification of sudden and aggressive braking events.
• Idling Time Tracking: Monitoring excessive idling, which can lead to fuel waste and increased emissions.

2.4 Streamlined Fleet Management

For fleet managers, a Geotab OBD2 harness offers numerous benefits:

• Real-Time Vehicle Location: Track the location of all vehicles in the fleet.
• Vehicle Health Monitoring: Proactively address maintenance issues to prevent breakdowns.
• Route Optimization: Improve route planning to reduce fuel consumption and travel time.
• Compliance Reporting: Generate reports for regulatory compliance, such as hours of service (HOS) for truck drivers.

2.5 Cost Savings

By using a Geotab OBD2 harness, you can achieve significant cost savings through:

• Reduced Fuel Consumption: Monitoring and correcting driver behavior to improve fuel efficiency.
• Lower Maintenance Costs: Proactive maintenance based on vehicle health data.
• Improved Vehicle Utilization: Optimizing routes and schedules to maximize vehicle usage.
• Decreased Insurance Premiums: Some insurance companies offer discounts for vehicles equipped with telematics devices.

Geotab OBD2 Harness Connection

3. Geotab OBD2 Harness Compatibility

3.1 Vehicle Makes and Models

Geotab OBD2 harnesses are compatible with a wide range of vehicle makes and models. According to Geotab, their harnesses support most light-duty and medium-duty vehicles manufactured after 1996. For heavy-duty vehicles, it is recommended to use a vehicle-specific harness or an adapter harness (HRN-CG13S1).

3.2 OBD2 Port Location

The OBD2 port is typically located under the dashboard on the driver’s side of the vehicle. However, the exact location may vary depending on the vehicle make and model. Consult your vehicle’s owner manual for the precise location of the OBD2 port.

3.3 Identifying the Correct Harness

To ensure compatibility, it is crucial to identify the correct Geotab OBD2 harness for your vehicle. Geotab provides a harness identification tool and application guide to help you select the appropriate harness.

3.4 Common Compatibility Issues and Solutions

While Geotab OBD2 harnesses are designed to be universally compatible, some vehicles may present compatibility issues. Common issues include:

• OBD2 Port Relocation: Some installations may require relocating the OBD2 port. Ensure compliance with local regulations, such as those in California, which prohibit relocating the OBD2 port.
• Heavy-Duty Vehicles: For heavy-duty trucks, always use a vehicle-specific harness or the adapter harness (HRN-CG13S1) to avoid damage to the Geotab GO device.
• Connector Types: Ensure the harness connector matches the OBD2 port type in your vehicle.

4. Installing a Geotab OBD2 Harness

4.1 Tools and Materials Needed

Before installing a Geotab OBD2 harness, gather the necessary tools and materials:

• Geotab OBD2 Harness
• Geotab GO Device
• Screwdrivers
• Pliers
• Zip Ties
• Mounting Brackets (included with the HRN-GS16K2 kit)
• Insert/Removal Tool (included with the HRN-GS16K2 kit)

4.2 Step-by-Step Installation Guide

Follow these steps to install a Geotab OBD2 harness:

1. Disconnect the Vehicle’s OBD2 Connector: Unplug the original OBDII connector from its slot.
2. Attach the Appropriate Adapter: Select the adapter that matches your vehicle’s OBD2 port type and attach it to the female universal core connector (short end) of the harness.
3. Secure the Adapter: Use the provided metal clips to secure the adapter in place.
4. Connect the Harness to the OBD2 Slot: Fasten the female universal core connector to the vehicle’s OBDII slot, using screws or plastic clips.
5. Connect the Geotab GO Device: Connect the GO device to the female universal core connector (long end) of the harness.
6. Reconnect the Original OBD2 Connector: Connect the male OBDII harness connector to the vehicle’s OBDII connector removed in Step 1.

4.3 Specific Installation Scenarios

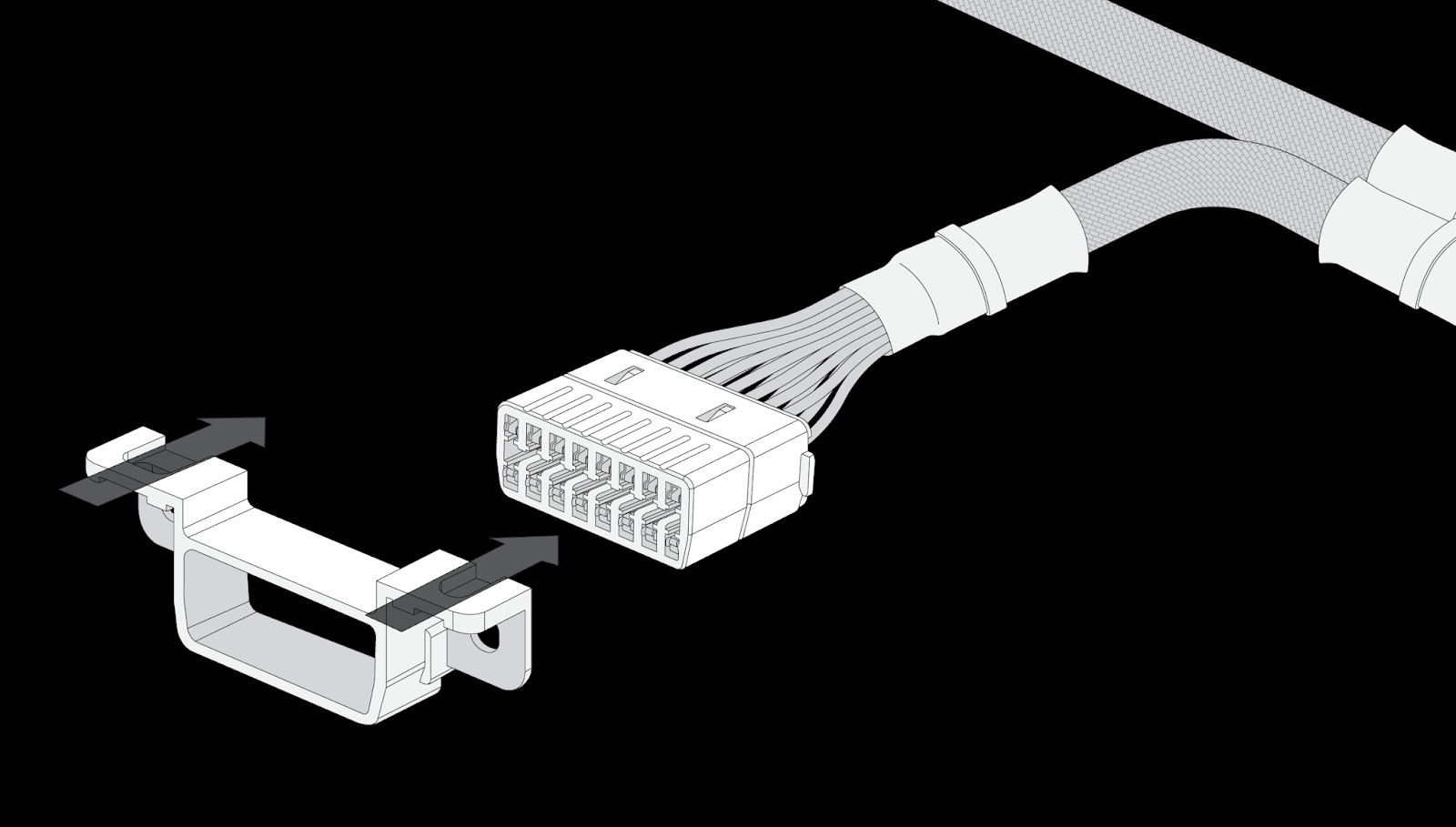

• European Latch & Snap (Fiat, Citroën, Peugeot):

  1. Slide the European Latch & Snap all the way to the back of the core connector.
  2. Insert the small snap adapter onto the wire behind the core connector.
  3. Slide the small snap adapter from the back of the harness, ensuring the European Latch & Snap is securely interlocked.

• Ford Round Snap-In:

  1. Slide the Ford Round Snap-In all the way to the back of the core connector.
  2. Use the insert/removal tool to secure the adapter in place with the provided metal clips.

4.4 Safety Precautions

• Professional Installation: Geotab recommends professional installation by an authorized installer.
• Vehicle Condition: Ensure the vehicle is stationary and securely parked before starting the installation.
• Cable Management: Securely fasten all cabling and keep it clear of vehicle controls.

Universal Harness Setup

5. Troubleshooting Common Issues

5.1 Connection Problems

If the Geotab GO device fails to connect after installing the harness, check the following:

• Harness Connection: Ensure the harness is securely connected to both the OBD2 port and the GO device.
• Adapter Compatibility: Verify that the correct adapter is used for your vehicle make and model.
• Power Supply: Confirm that the vehicle’s battery is charged and providing power to the OBD2 port.

5.2 Data Accuracy Issues

If the data displayed by the Geotab GO device is inaccurate, consider the following:

• Harness Compatibility: Ensure the harness is fully compatible with your vehicle.
• Software Updates: Update the Geotab GO device firmware to the latest version.
• Calibration: Calibrate the GO device according to Geotab’s instructions.

5.3 Device Malfunctions

If the Geotab GO device malfunctions, try these steps:

• Restart the Device: Disconnect and reconnect the GO device to reset it.
• Check for Damage: Inspect the harness and GO device for any physical damage.
• Contact Support: Contact Geotab support or MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for further assistance.

5.4 Common Error Codes and Solutions

Refer to Geotab’s documentation or contact support for specific error code solutions. Common error codes may indicate connection issues, data errors, or device malfunctions.

6. Best Practices for Using Geotab OBD2 Harnesses

6.1 Regular Inspections

Regularly inspect the Geotab OBD2 harness for signs of wear and tear. Check for damaged connectors, frayed wires, and loose connections.

6.2 Proper Cable Management

Use zip ties to secure the harness and prevent it from interfering with vehicle controls. Ensure the harness is routed away from heat sources and moving parts.

6.3 Software and Firmware Updates

Keep the Geotab GO device software and firmware up to date to ensure optimal performance and compatibility.

6.4 Professional Maintenance

Consider professional maintenance and inspections to ensure the Geotab OBD2 harness and GO device are functioning correctly.

7. Advanced Features and Customization

7.1 Geotab Marketplace

The Geotab Marketplace offers a variety of add-ons and integrations that can enhance the functionality of the Geotab OBD2 harness. These include:

• डैशबोर्ड and Reports: Customizable dashboards and reports for tracking vehicle performance and driver behavior.
• Integration with Third-Party Systems: Integration with accounting software, CRM systems, and other business applications.

7.2 Custom Rules and Alerts

Geotab allows you to create custom rules and alerts based on vehicle data. For example, you can set up alerts for speeding, harsh braking, or excessive idling.

7.3 Data Analysis and Reporting

Use Geotab’s data analysis tools to gain insights into vehicle performance, driver behavior, and fleet efficiency. Generate reports to identify areas for improvement and track progress over time.

8. The Future of OBD2 Harness Technology

8.1 Advancements in Harness Design

Future advancements in OBD2 harness technology may include:

• Wireless Connectivity: Wireless OBD2 adapters that eliminate the need for physical harnesses.
• Improved Data Security: Enhanced security features to protect vehicle data from unauthorized access.
• Expanded Compatibility: Support for a wider range of vehicle makes and models.

8.2 Integration with Electric Vehicles (EVs)

As electric vehicles become more prevalent, OBD2 harnesses will need to adapt to the unique diagnostic and data requirements of EVs. This may include:

• Battery Monitoring: Tracking battery health, charge levels, and degradation.
• Energy Consumption Analysis: Monitoring energy usage and efficiency.
• Charging Station Integration: Integration with charging station networks for payment and data logging.

8.3 The Role of AI and Machine Learning

AI and machine learning can play a significant role in analyzing OBD2 data to provide predictive maintenance, personalized driver coaching, and optimized fleet management.

9. Case Studies and Success Stories

9.1 Fleet Management Optimization

A case study of a trucking company that used Geotab OBD2 harnesses to optimize its fleet management:

• Challenge: High fuel costs, excessive idling, and maintenance issues.
• Solution: Installed Geotab OBD2 harnesses to track vehicle location, driver behavior, and engine diagnostics.
• Results: Reduced fuel consumption by 15%, decreased idling time by 20%, and lowered maintenance costs by 10%.

9.2 Improved Driver Safety

A success story of a delivery company that used Geotab OBD2 harnesses to improve driver safety:

• Challenge: High accident rates and unsafe driving habits.
• Solution: Implemented Geotab OBD2 harnesses to monitor speeding, harsh braking, and other unsafe behaviors.
• Results: Reduced accident rates by 25% and improved driver safety scores by 30%.

9.3 Cost Savings in Vehicle Maintenance

An example of a construction company that used Geotab OBD2 harnesses to save on vehicle maintenance:

• Challenge: Unexpected breakdowns and high maintenance costs.
• Solution: Utilized Geotab OBD2 harnesses to proactively monitor vehicle health and schedule maintenance.
• Results: Lowered maintenance costs by 15% and reduced vehicle downtime by 20%.

10. Frequently Asked Questions (FAQ)

10.1 What is a Geotab OBD2 Harness?

A Geotab OBD2 harness is a cable assembly that connects a Geotab GO device to a vehicle’s OBD2 port, enabling data transfer for vehicle tracking, diagnostics, and performance monitoring.

10.2 Which Geotab OBD2 Harness is right for my Mercedes-Benz?

The correct harness depends on the model year of your Mercedes-Benz. Consult the harness identification tool on MERCEDES-DIAGNOSTIC-TOOL.EDU.VN or contact our support team for assistance.

10.3 How do I install a Geotab OBD2 Harness?

Follow the step-by-step installation guide provided by Geotab, ensuring the vehicle is stationary and the harness is securely connected. Professional installation is recommended.

10.4 What do I do if my Geotab GO Device isn’t connecting?

Check the harness connection, adapter compatibility, and vehicle power supply. Restart the device or contact Geotab support for further assistance.

10.5 Can I use a Geotab OBD2 Harness on any vehicle?

Geotab OBD2 harnesses are compatible with most light-duty and medium-duty vehicles manufactured after 1996. For heavy-duty vehicles, use a vehicle-specific or adapter harness.

10.6 How often should I inspect my Geotab OBD2 Harness?

Regularly inspect the harness for wear and tear, damaged connectors, and loose connections to ensure optimal performance.

10.7 What are the benefits of using a Geotab OBD2 Harness for my Mercedes-Benz?

Benefits include enhanced vehicle tracking, comprehensive engine diagnostics, improved driver behavior monitoring, streamlined fleet management, and cost savings.

10.8 What is the Geotab Marketplace?

The Geotab Marketplace offers add-ons and integrations that enhance the functionality of the Geotab OBD2 harness, such as customizable dashboards, third-party system integrations, and custom alerts.

10.9 How does Geotab ensure the security of my vehicle data?

Geotab employs robust security measures to protect vehicle data from unauthorized access, including encryption, secure data centers, and regular security audits.

10.10 Where can I purchase a Geotab OBD2 Harness?

You can purchase Geotab OBD2 harnesses from authorized resellers, such as MERCEDES-DIAGNOSTIC-TOOL.EDU.VN.

Conclusion

A Geotab OBD2 harness is an essential tool for connecting Geotab GO devices to your vehicle, providing valuable data for tracking, diagnostics, and fleet management. By understanding the benefits, compatibility, and installation procedures, you can maximize the value of your Geotab system.
