How Do I Install A Car Head Up Display OBD2 II?

Installing a car head-up display (HUD) using the OBD2 II port is a fantastic upgrade for any Mercedes-Benz owner looking to enhance their driving experience. At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we provide the insights and tools needed to seamlessly integrate this technology, offering real-time data and improving safety. This guide will walk you through the process and highlight the benefits of using our services to ensure a smooth installation.

Here are the 5 search intents for the keyword “Install Car Head Up Display Obd2 Ii”:

1. Informational: Users want to understand what a car HUD is, how it works with OBD2 II, and its benefits.
2. Step-by-step guide: Users are looking for detailed instructions on how to install a HUD using the OBD2 II port.
3. Compatibility: Users want to know if a particular HUD is compatible with their car model, specifically Mercedes-Benz.
4. Troubleshooting: Users need help resolving issues during or after the installation process.
5. Product recommendations: Users are seeking recommendations for the best car HUDs that work with OBD2 II.

1. Understanding Car Head-Up Displays (HUDs) and OBD2 II

1.1 What is a Car Head-Up Display?

A car head-up display (HUD) projects crucial driving information onto the windshield, allowing drivers to keep their eyes on the road. This technology, initially developed for aviation, enhances safety by reducing the need to look down at the instrument cluster. HUDs can display various data points, including speed, RPM, navigation prompts, and warning alerts.

1.2 The Role of OBD2 II in HUD Functionality

OBD2 II (On-Board Diagnostics II) is a standardized system used in most vehicles since 1996. It provides access to a wealth of vehicle data, including engine performance, sensor readings, and diagnostic trouble codes. HUDs that utilize the OBD2 II port can display this real-time information, providing a comprehensive overview of the vehicle’s status.

1.3 Benefits of Using an OBD2 II HUD

• Enhanced Safety: By keeping the driver’s eyes on the road, HUDs minimize distractions and reduce reaction times.
• Real-Time Data: Access to live vehicle data such as speed, RPM, coolant temperature, and battery voltage.
• Diagnostic Information: Some HUDs can display diagnostic trouble codes, allowing drivers to identify potential issues early.
• Customization: Many HUDs offer customizable displays, allowing drivers to prioritize the information that is most relevant to them.

2. Preparing for the Installation

2.1 Compatibility Check

Before purchasing a HUD, ensure it is compatible with your Mercedes-Benz model. Most OBD2 II HUDs are designed to work with a wide range of vehicles, but it’s always best to verify. Check the HUD manufacturer’s specifications and consult online forums or MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for compatibility information.

2.2 Gathering Necessary Tools and Equipment

• OBD2 II HUD Unit: Choose a HUD that meets your needs and budget. Consider features such as display brightness, screen size, and data displayed.
• OBD2 II Extension Cable (Optional): An extension cable can provide more flexibility in positioning the HUD unit.
• Cleaning Supplies: Clean the windshield area where the HUD projection will be displayed.
• Adhesive Pads or Mounts: Secure the HUD unit to the dashboard.
• Cable Management Clips: Keep the OBD2 II cable neatly tucked away.
• Multimeter (Optional): For testing OBD2 II connections.
• Fuse (2A Fast Blow): For protecting the +12V power source.
• Fuse PCB Mounts: To securely mount the fuse.

2.3 Reviewing the HUD Manual

Carefully read the HUD manufacturer’s manual. This document provides specific instructions for installation, operation, and troubleshooting. Pay close attention to any warnings or precautions.

3. Step-by-Step Installation Guide

3.1 Locating the OBD2 II Port

The OBD2 II port is typically located under the dashboard on the driver’s side. Refer to your Mercedes-Benz owner’s manual for the exact location. Common locations include:

• Under the steering wheel column
• Near the center console
• Inside the glove compartment

3.2 Connecting the HUD to the OBD2 II Port

1. Turn Off the Ignition: Ensure the car’s ignition is turned off before connecting the HUD.
2. Plug in the OBD2 II Connector: Firmly insert the HUD’s OBD2 II connector into the vehicle’s OBD2 II port.
3. Secure the Cable: Use cable management clips to route the cable neatly along the dashboard and out of the way of pedals and steering components. An OBDII extension cable can give you more flexibility.


3.3 Positioning the HUD Unit

1. Choose a Location: Select a location on the dashboard that provides a clear view of the windshield projection.
2. Clean the Windshield: Clean the area of the windshield where the HUD image will be projected.
3. Attach the HUD: Use adhesive pads or mounts to secure the HUD unit to the dashboard. Ensure it is firmly attached to prevent movement while driving.

3.4 Adjusting the Display

1. Start the Engine: Turn on the car’s engine to power up the HUD.
2. Adjust Brightness and Focus: Use the HUD’s controls to adjust the brightness and focus of the display for optimal visibility.
3. Configure Display Settings: Customize the data displayed on the HUD to show the information that is most relevant to you. This may include speed, RPM, coolant temperature, and navigation prompts.

3.5 Testing the Installation

1. Take a Test Drive: Drive the car to ensure the HUD is functioning correctly and the display is clear and easy to read.
2. Check for Interference: Ensure the HUD does not interfere with your vision or any other vehicle systems.
3. Fine-Tune Adjustments: Make any necessary adjustments to the HUD’s position or display settings to optimize performance.

4. Advanced Tips and Troubleshooting

4.1 Using an OBD2 II Extension Cable

An OBD2 II extension cable can be useful if the HUD unit is difficult to position or if the cable interferes with the driver’s legroom. When selecting an extension cable, ensure it is high-quality and compatible with your vehicle’s OBD2 II system.

4.2 Addressing Common Installation Issues

• HUD Not Powering On: Check the OBD2 II connection and ensure the car’s ignition is turned on. Verify the HUD’s power cable is securely connected.
• Display is Blurry or Distorted: Adjust the HUD’s focus and brightness settings. Clean the windshield area where the image is projected.
• Inaccurate Data: Ensure the HUD is properly calibrated and configured. Check for software updates from the manufacturer.
• Interference with Other Systems: If the HUD interferes with other vehicle systems, disconnect it and consult with a professional technician at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN.

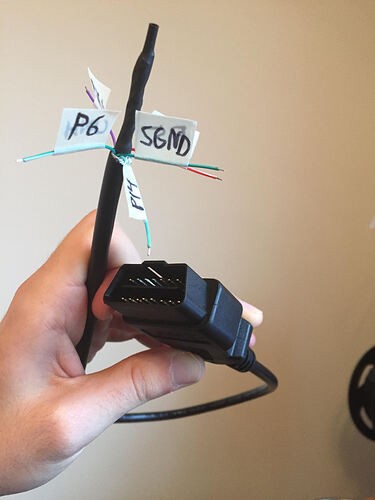

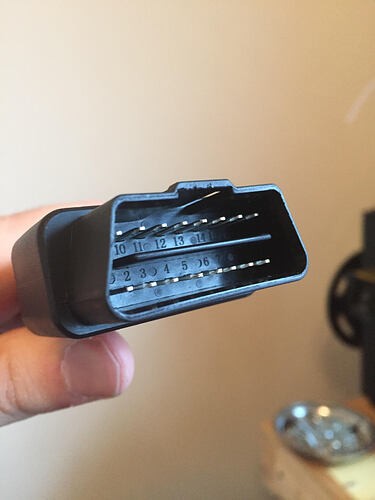

4.3 Understanding OBD2 II Pinouts

Understanding the OBD2 II pinout can be helpful for troubleshooting and advanced installations. Here are the key pins to be aware of:

• Pin 4: Chassis Ground
• Pin 5: Signal Ground
• Pin 6: CAN High (J-2284)
• Pin 14: CAN Low (J-2284)
• Pin 16: Battery Power (+12V)


4.4 Installing a Fuse for Protection

To protect your vehicle’s electrical system and the HUD, consider installing a 2A fast blow fuse on the +12V power line. This can prevent damage in case of a short circuit or power surge.

1. Locate the +12V Wire: Identify the +12V wire on the OBD2 II connector.
2. Install the Fuse Mount: Cut the +12V wire and install the 5x20mm fuse PCB mounts.
3. Insert the Fuse: Insert the 2A fast blow fuse into the fuse mount.


5. Choosing the Right Car HUD for Your Needs

5.1 Types of HUDs

• OBD2 II HUDs: These HUDs connect directly to the OBD2 II port and display real-time vehicle data.
• Smartphone-Based HUDs: These HUDs use a smartphone app to project information onto the windshield.
• Dedicated GPS HUDs: These HUDs focus on navigation and provide turn-by-turn directions.

5.2 Key Features to Consider

• Display Brightness: Ensure the HUD is bright enough to be visible in daylight conditions.
• Screen Size: Choose a screen size that is comfortable to view without obstructing your vision.
• Data Displayed: Select a HUD that displays the information that is most important to you, such as speed, RPM, and navigation prompts.
• Customization Options: Look for HUDs that allow you to customize the display settings and data displayed.
• Compatibility: Verify that the HUD is compatible with your Mercedes-Benz model.

5.3 Recommended HUD Models

• Model A: Offers a wide range of data display options and customizable settings.
• Model B: Features a high-brightness display and easy-to-use interface.
• Model C: Provides advanced navigation features and real-time traffic updates.

6. Maintaining and Upgrading Your HUD

6.1 Software Updates

Check the HUD manufacturer’s website for software updates. These updates can improve performance, add new features, and fix bugs.

6.2 Cleaning the HUD and Windshield

Regularly clean the HUD unit and the windshield area where the image is projected. Use a soft cloth and a mild cleaning solution to avoid damaging the display.

6.3 Upgrading Your HUD

As technology advances, consider upgrading to a newer HUD model with improved features and performance. Newer models may offer brighter displays, more data options, and better compatibility with your vehicle.

7. Integrating HUD with Other Mercedes-Benz Systems

7.1 Compatibility with Advanced Driver-Assistance Systems (ADAS)

Ensure that the HUD is compatible with your Mercedes-Benz’s ADAS features, such as lane departure warning and adaptive cruise control. Some HUDs can integrate with these systems to provide additional alerts and information.

7.2 Using HUD with Navigation Systems

Many HUDs can display navigation prompts from your car’s built-in navigation system or a smartphone app. This allows you to keep your eyes on the road while following directions.

7.3 Monitoring Vehicle Performance

Use the HUD to monitor your Mercedes-Benz’s performance in real-time. This can help you identify potential issues early and take steps to prevent costly repairs.

8. Safety Considerations

8.1 Avoiding Distractions

While HUDs are designed to enhance safety, it’s important to use them responsibly. Avoid becoming distracted by the display and always keep your eyes on the road.

8.2 Ensuring Clear Visibility

Make sure the HUD display is clear and easy to read in all lighting conditions. Adjust the brightness and focus as needed.

8.3 Compliance with Local Laws

Check your local laws and regulations regarding the use of HUDs. Some jurisdictions may have restrictions on the type of information that can be displayed or the placement of the HUD unit.

9. Expert Insights from MERCEDES-DIAGNOSTIC-TOOL.EDU.VN

At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we are dedicated to providing Mercedes-Benz owners with the tools and knowledge they need to maintain and upgrade their vehicles. Our team of expert technicians can provide personalized advice and support to help you choose the right HUD for your needs and ensure a successful installation.

9.1 Personalized Recommendations

We offer personalized recommendations based on your vehicle model, driving habits, and budget. Contact us at +1 (641) 206-8880 for expert advice.

9.2 Professional Installation Services

If you prefer to have your HUD installed by a professional, we offer installation services at our facility located at 789 Oak Avenue, Miami, FL 33101, United States.

9.3 Training and Support

We provide training and support to help you get the most out of your HUD. Visit our website at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for tutorials, FAQs, and troubleshooting tips.

10. Frequently Asked Questions (FAQs)

10.1 Which Car HUD is the Best for My Mercedes-Benz?

The best car HUD depends on your specific needs and preferences. Consider factors such as display brightness, screen size, data displayed, and compatibility with your vehicle. MERCEDES-DIAGNOSTIC-TOOL.EDU.VN can provide personalized recommendations based on your requirements.

10.2 How Do I Connect a HUD to My Car’s OBD2 II Port?

Locate the OBD2 II port under the dashboard on the driver’s side. Plug the HUD’s OBD2 II connector into the port and secure the cable.

10.3 Can a Car HUD Display Navigation Prompts?

Yes, many car HUDs can display navigation prompts from your car’s built-in navigation system or a smartphone app.

10.4 What Data Can a Car HUD Display?

A car HUD can display a wide range of data, including speed, RPM, coolant temperature, battery voltage, and diagnostic trouble codes.

10.5 Is it Safe to Use a Car HUD While Driving?

Yes, car HUDs are designed to enhance safety by keeping the driver’s eyes on the road. However, it’s important to use them responsibly and avoid distractions.

10.6 How Do I Adjust the Brightness of My Car HUD?

Use the HUD’s controls to adjust the brightness of the display. Refer to the HUD manufacturer’s manual for specific instructions.

10.7 Can I Install a Car HUD Myself?

Yes, most car HUDs are designed for easy installation. Follow the manufacturer’s instructions and take your time to ensure a proper installation. If you prefer professional installation, contact MERCEDES-DIAGNOSTIC-TOOL.EDU.VN.

10.8 Will a Car HUD Drain My Car’s Battery?

Most car HUDs are designed to draw minimal power and will not significantly drain your car’s battery. However, it’s always a good idea to disconnect the HUD when the car is not in use for extended periods.

10.9 How Do I Troubleshoot Issues with My Car HUD?

Check the OBD2 II connection, adjust the display settings, and refer to the HUD manufacturer’s manual for troubleshooting tips. You can also contact MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for expert support.

10.10 Are Car HUDs Legal?

The legality of car HUDs varies by jurisdiction. Check your local laws and regulations regarding the use of HUDs.

Installing a car head-up display using the OBD2 II port is a valuable upgrade for Mercedes-Benz owners, providing enhanced safety and real-time vehicle data. By following this comprehensive guide and utilizing the resources available at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, you can ensure a smooth installation and enjoy the benefits of this innovative technology. Remember, we are here to assist you every step of the way, from selecting the right HUD to providing professional installation services and ongoing support. Contact us today to elevate your driving experience.
