What Are The Benefits Of Using A Thinkobd 100 Obd2 Scanner?

The Thinkobd 100 Obd2 Scanner is a valuable tool for diagnosing car problems, and at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we offer comprehensive support to help you effectively utilize this device. The Thinkobd 100 quickly identifies issues, offers real-time data, and ensures your vehicle meets emission standards, empowering you to maintain your Mercedes-Benz with confidence, while exploring advanced features and customizations through our expert guidance, thus enhancing the overall ownership experience. This tool supports various protocols including KWP2000 and CAN.

1. What Is A Thinkobd 100 Obd2 Scanner?

The Thinkobd 100 obd2 scanner is a diagnostic tool used to read and clear trouble codes in a vehicle’s onboard computer system, helping users identify and resolve car problems efficiently. This device allows car owners and technicians to access crucial information about the vehicle’s health, making it an essential tool for maintenance and repair.

1.1 How Does the Thinkobd 100 Obd2 Scanner Work?

The Thinkobd 100 obd2 scanner operates by connecting to a vehicle’s OBD2 port, which is typically located under the dashboard. Once connected, it communicates with the vehicle’s engine control unit (ECU) to retrieve diagnostic trouble codes (DTCs), live data, and other relevant information.

1.1.1 Key Functions of the Thinkobd 100

The primary functions of the Thinkobd 100 include:

• Reading Diagnostic Trouble Codes (DTCs): Identifies the source of the problem by providing specific codes related to the issue.
• Clearing Codes: Resets the check engine light after the problem has been resolved.
• Live Data Stream: Displays real-time data from various sensors in the vehicle.
• I/M Readiness Test: Checks if the vehicle is ready for emissions testing.
• Freeze Frame Data: Captures data when a problem occurs, providing a snapshot of the conditions at that moment.

1.2 Why Use a Thinkobd 100 Obd2 Scanner?

Using a Thinkobd 100 obd2 scanner offers several benefits:

• Cost Savings: Identifies problems early, preventing costly repairs down the line.
• Time Efficiency: Quickly diagnoses issues, saving time compared to manual inspections.
• Informed Decisions: Provides detailed information, enabling informed decisions about repairs.
• Preventative Maintenance: Helps monitor vehicle health, facilitating preventative maintenance.
• User-Friendly: Easy to use, even for beginners.

1.3 OBD2 Compliance and Compatibility

The Thinkobd 100 obd2 scanner is compatible with most 1996 and newer vehicles sold in the United States, as these vehicles are OBD2 compliant. OBD2 (On-Board Diagnostics II) is a standardized system that provides access to diagnostic data from a vehicle’s ECU.

1.3.1 OBD2 Protocols Supported

The Thinkobd 100 supports the following OBD2 protocols:

• KWP2000
• ISO9141
• J1850 VPW
• J1850 PWM
• CAN

This broad compatibility ensures that the scanner can be used with a wide range of vehicle makes and models.

2. What Are The Key Features of the Thinkobd 100 Obd2 Scanner?

The Thinkobd 100 obd2 scanner is equipped with several key features that make it a valuable tool for vehicle diagnostics. These features are designed to help users quickly and accurately identify and resolve car problems.

2.1 Full OBD II/EOBD Diagnostics

The Thinkobd 100 supports full OBD II/EOBD diagnostics, which includes reading codes, erasing codes, turning off the MIL (Malfunction Indicator Light), viewing live data, performing EVAP system tests, running on-board monitor tests, viewing freeze frame data, conducting O2 sensor tests, accessing vehicle information, checking I/M readiness, and looking up DTC codes.

2.1.1 Reading and Clearing Codes

One of the primary functions of the Thinkobd 100 is its ability to read and clear diagnostic trouble codes (DTCs). When a problem occurs in the vehicle, the ECU stores a DTC, which the scanner can retrieve. Once the issue has been resolved, the scanner can clear the code and turn off the check engine light.

2.1.2 Live Data Stream

The live data stream feature allows users to view real-time data from various sensors in the vehicle. This data can include engine speed (RPM), coolant temperature, oxygen sensor readings, and more. Monitoring live data can help identify intermittent problems and assess the overall health of the engine.

Live Data Stream

2.1.3 EVAP System Test

The EVAP (Evaporative Emission Control System) system test checks for leaks in the fuel vapor recovery system. This test helps ensure that the vehicle is not releasing harmful emissions into the atmosphere.

2.1.4 On-Board Monitor Test

The on-board monitor test checks the functionality of various vehicle systems, such as the catalytic converter and oxygen sensors. This test helps ensure that these systems are operating correctly and meeting emission standards.

2.1.5 Freeze Frame Data

The freeze frame data feature captures a snapshot of the vehicle’s operating conditions when a DTC is stored. This data can include engine speed, engine load, coolant temperature, and more. Analyzing freeze frame data can help diagnose the cause of the problem.

2.1.6 O2 Sensor Test

The O2 sensor test checks the performance of the vehicle’s oxygen sensors. These sensors are critical for monitoring the air-fuel ratio and ensuring efficient combustion.

2.1.7 Vehicle Information

The vehicle information feature allows users to access important details about the vehicle, such as the VIN (Vehicle Identification Number), CID (Calibration Identification), and CVN (Calibration Verification Number).

2.1.8 DTC Code Look-up

The DTC code look-up feature provides descriptions of diagnostic trouble codes, helping users understand the meaning of each code and the potential causes of the problem.

2.2 I/M Readiness Status Test

The I/M readiness status test checks the status of emission-related monitors, such as the misfire system and fuel system. This test helps ensure that the vehicle is ready for emissions testing and can help users avoid failing a smog check.

2.2.1 Why is I/M Readiness Important?

I/M readiness is important because it ensures that the vehicle is meeting emission standards. Many states require vehicles to pass an emissions test before they can be registered. The I/M readiness status test helps users identify and resolve any emission-related problems before taking the vehicle for testing.

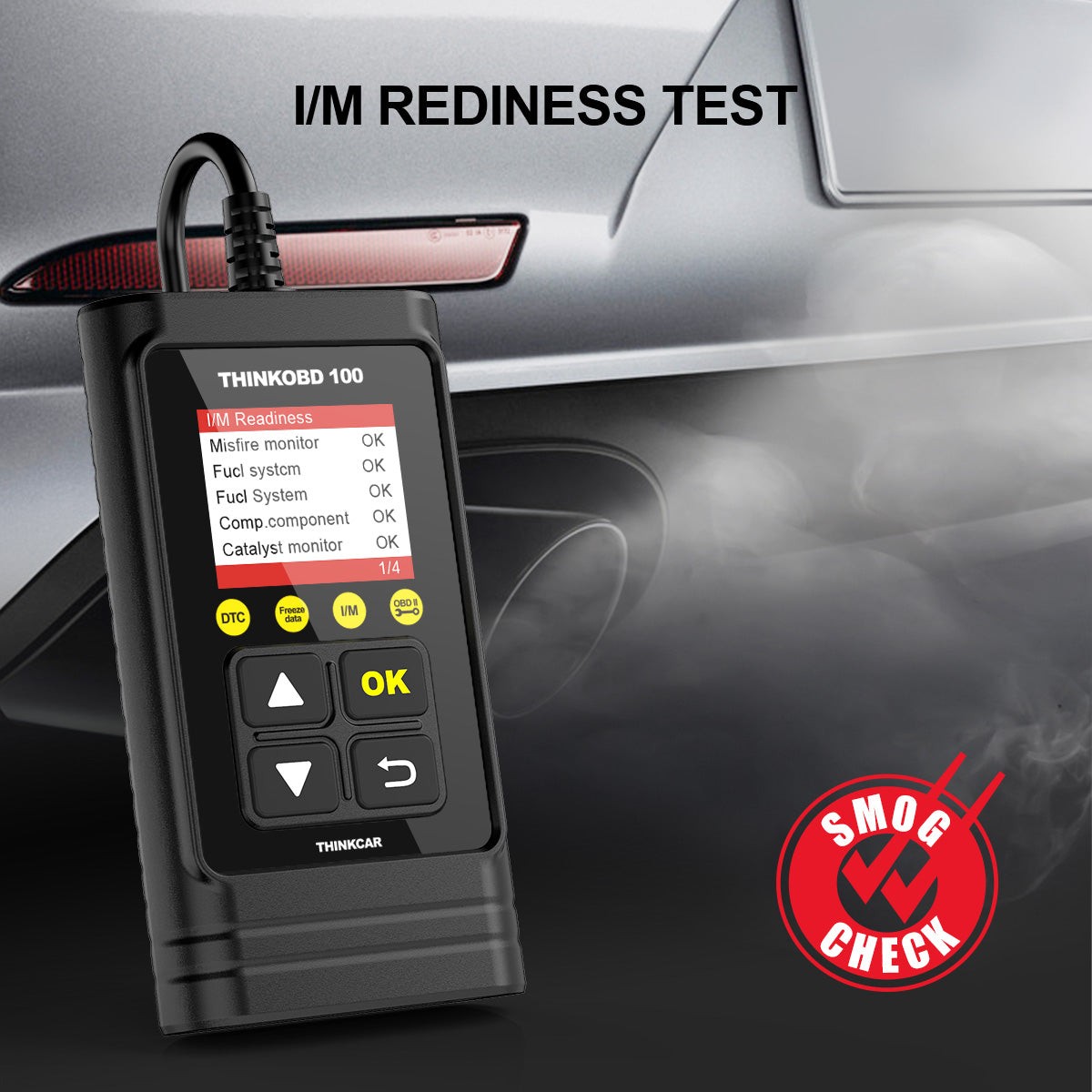

Thinkobd 100 I/M READINESS TEST

2.3 Plug and Play Functionality

The Thinkobd 100 features plug and play functionality, which means it is easy to use, even for beginners. The scanner does not require any software installation or battery charging. Simply plug it into the vehicle’s OBD2 port and start scanning for trouble codes.

2.3.1 Ease of Use

The Thinkobd 100 is designed to be user-friendly. Its intuitive interface and straightforward functionality make it easy for anyone to use, regardless of their technical expertise.

2.3.2 Time and Cost Savings

By quickly identifying and clearing trouble codes, the Thinkobd 100 can save users time and money. It eliminates the need to visit a mechanic for simple issues and allows users to make informed decisions about more complex repairs.

2.4 Unmatched Compatibility

The Thinkobd 100 is compatible with most 1996 and newer vehicles sold in the United States that are OBDII compliant. It supports a variety of protocols, including KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN.

2.4.1 Multi-Language Support

The Thinkobd 100 supports multiple languages, including English, French, Spanish, German, Russian, Italian, and Portuguese. This makes it accessible to a wide range of users around the world.

THINKCAR THINKOBD100 coverage

2.5 Warranty and Support

The Thinkobd 100 comes with a 12-month warranty, providing users with peace of mind. If the product fails within the warranty period, it will be replaced with a new one. Additionally, users can contact customer support for assistance with any problems or questions.

3. How Can The Thinkobd 100 Obd2 Scanner Be Used For Mercedes-Benz Vehicles?

The Thinkobd 100 obd2 scanner is an invaluable tool for Mercedes-Benz owners and technicians, enabling them to diagnose and address a wide range of issues, from minor malfunctions to complex system failures. Its compatibility with OBD2 protocols ensures that it can effectively communicate with the vehicle’s computer system, providing accurate and timely diagnostic information.

3.1 Diagnosing Common Mercedes-Benz Issues

Mercedes-Benz vehicles, like all cars, can experience a variety of common issues. The Thinkobd 100 can help diagnose these problems by reading diagnostic trouble codes (DTCs) and providing real-time data.

3.1.1 Engine Problems

Engine-related issues are among the most common problems in Mercedes-Benz vehicles. These can include:

• Misfires: Caused by faulty spark plugs, ignition coils, or fuel injectors.
• Poor Fuel Economy: Often due to a malfunctioning oxygen sensor or mass airflow sensor.
• Check Engine Light: Can indicate a wide range of engine-related problems, from minor issues to major malfunctions.

The Thinkobd 100 can help pinpoint the exact cause of these issues by reading DTCs and providing live data from the engine sensors.

3.1.2 Transmission Problems

Transmission problems can also occur in Mercedes-Benz vehicles. These can include:

• Rough Shifting: Indicates a problem with the transmission’s internal components.
• Slipping Gears: Occurs when the transmission fails to engage the correct gear.
• Transmission Warning Light: Signals a problem with the transmission system.

The Thinkobd 100 can help diagnose these issues by reading DTCs related to the transmission system.

3.1.3 Electrical Problems

Electrical problems are another common issue in Mercedes-Benz vehicles. These can include:

• Battery Drain: Caused by a parasitic drain on the battery.
• Faulty Sensors: Malfunctioning sensors can cause a variety of problems, from engine issues to transmission problems.
• Warning Lights: Electrical problems can trigger various warning lights on the dashboard.

The Thinkobd 100 can help diagnose these issues by reading DTCs related to the electrical system.

3.2 Step-by-Step Guide to Using the Thinkobd 100 on a Mercedes-Benz

Using the Thinkobd 100 on a Mercedes-Benz is a straightforward process. Here’s a step-by-step guide:

1. Locate the OBD2 Port: The OBD2 port is typically located under the dashboard, near the steering column.
2. Connect the Scanner: Plug the Thinkobd 100 into the OBD2 port.
3. Turn on the Ignition: Turn the ignition key to the “on” position, but do not start the engine.
4. Power On the Scanner: The Thinkobd 100 should power on automatically. If not, check the connection and try again.
5. Select “Read Codes”: Use the scanner’s menu to select the “Read Codes” option.
6. View the DTCs: The scanner will display any stored diagnostic trouble codes.
7. Look Up the Codes: Use the scanner’s DTC code look-up feature to view descriptions of the codes.
8. Clear the Codes (Optional): If you have resolved the issue, you can select the “Clear Codes” option to reset the check engine light.
9. Perform Live Data Stream (Optional): Use the scanner’s live data stream feature to monitor real-time data from the vehicle’s sensors.
10. Disconnect the Scanner: Once you have finished using the scanner, disconnect it from the OBD2 port.

3.3 Interpreting Diagnostic Trouble Codes (DTCs)

Diagnostic trouble codes (DTCs) are standardized codes that provide information about the source of a problem in the vehicle. These codes typically consist of five characters: a letter followed by four numbers.

3.3.1 Common DTC Categories

The first letter of the DTC indicates the system in which the problem occurred:

• P: Powertrain (engine and transmission)
• B: Body (interior and exterior)
• C: Chassis (brakes, suspension, and steering)
• U: Network (communication systems)

The numbers that follow the letter provide more specific information about the problem. For example, a code of P0300 indicates a random misfire in the engine.

3.3.2 Using the DTC Code Look-up Feature

The Thinkobd 100’s DTC code look-up feature provides descriptions of the diagnostic trouble codes, helping users understand the meaning of each code and the potential causes of the problem. This feature can be invaluable for diagnosing and resolving car issues.

3.4 Real-World Examples of Using the Thinkobd 100 on Mercedes-Benz Vehicles

To illustrate the usefulness of the Thinkobd 100, here are a few real-world examples of how it can be used on Mercedes-Benz vehicles:

• Example 1: A Mercedes-Benz owner notices that the check engine light is on. They use the Thinkobd 100 to read the DTCs and find a code of P0420, which indicates a problem with the catalytic converter. They take the vehicle to a mechanic, who confirms the diagnosis and replaces the catalytic converter.
• Example 2: A Mercedes-Benz technician is diagnosing a rough-shifting transmission. They use the Thinkobd 100 to read the DTCs and find a code of P0715, which indicates a problem with the input speed sensor. They replace the sensor, resolving the issue.
• Example 3: A Mercedes-Benz owner is experiencing poor fuel economy. They use the Thinkobd 100 to monitor the live data from the oxygen sensors and notice that one of the sensors is not functioning correctly. They replace the sensor, improving the vehicle’s fuel economy.

4. What Are The Advantages Of Using Thinkobd 100 For Car Maintenance And Repair?

The Thinkobd 100 obd2 scanner offers numerous advantages for car maintenance and repair, making it an essential tool for both car owners and professional technicians. Its capabilities extend from simple diagnostics to comprehensive system analysis, providing users with the information they need to keep their vehicles running smoothly.

4.1 Early Detection of Potential Problems

One of the key advantages of using the Thinkobd 100 is its ability to detect potential problems early. By regularly scanning the vehicle’s computer system, users can identify issues before they escalate into major repairs.

4.1.1 Preventing Costly Repairs

Early detection of potential problems can help prevent costly repairs down the line. For example, detecting a minor engine misfire early can prevent damage to the catalytic converter, which can be an expensive repair.

4.1.2 Maintaining Vehicle Performance

Regularly scanning the vehicle’s computer system can also help maintain vehicle performance. By identifying and resolving issues early, users can ensure that their vehicles are running at their best.

4.2 Enhanced Diagnostic Capabilities

The Thinkobd 100 offers enhanced diagnostic capabilities compared to basic code readers. Its ability to read and clear codes, view live data, and perform system tests provides users with a more comprehensive understanding of their vehicle’s health.

4.2.1 Reading and Clearing Codes

The Thinkobd 100 can read and clear diagnostic trouble codes (DTCs), providing users with information about the source of a problem. Once the issue has been resolved, the scanner can clear the code and turn off the check engine light.

4.2.2 Live Data Stream

The live data stream feature allows users to view real-time data from various sensors in the vehicle. This data can include engine speed (RPM), coolant temperature, oxygen sensor readings, and more. Monitoring live data can help identify intermittent problems and assess the overall health of the engine.

4.2.3 System Tests

The Thinkobd 100 can perform various system tests, such as the EVAP system test and the on-board monitor test. These tests help ensure that the vehicle’s systems are operating correctly and meeting emission standards.

4.3 Cost-Effective Solution for Car Maintenance

Using the Thinkobd 100 can be a cost-effective solution for car maintenance. By identifying and resolving issues early, users can avoid costly repairs at a mechanic.

4.3.1 Reducing Mechanic Visits

The Thinkobd 100 can help reduce the number of visits to a mechanic. By diagnosing and resolving simple issues themselves, users can save time and money.

4.3.2 Informed Decision-Making

The Thinkobd 100 provides users with the information they need to make informed decisions about car repairs. By understanding the source of a problem and the potential solutions, users can negotiate with mechanics and ensure that they are getting a fair price.

4.4 User-Friendly Interface and Easy Operation

The Thinkobd 100 features a user-friendly interface and easy operation, making it accessible to both car owners and professional technicians. Its intuitive design and straightforward functionality make it easy to use, regardless of technical expertise.

4.4.1 Plug and Play Functionality

The Thinkobd 100 features plug and play functionality, which means it is easy to set up and use. Simply plug it into the vehicle’s OBD2 port and start scanning for trouble codes.

4.4.2 Clear and Concise Display

The Thinkobd 100 features a clear and concise display, which makes it easy to read diagnostic information. The scanner also provides descriptions of diagnostic trouble codes, helping users understand the meaning of each code and the potential causes of the problem.

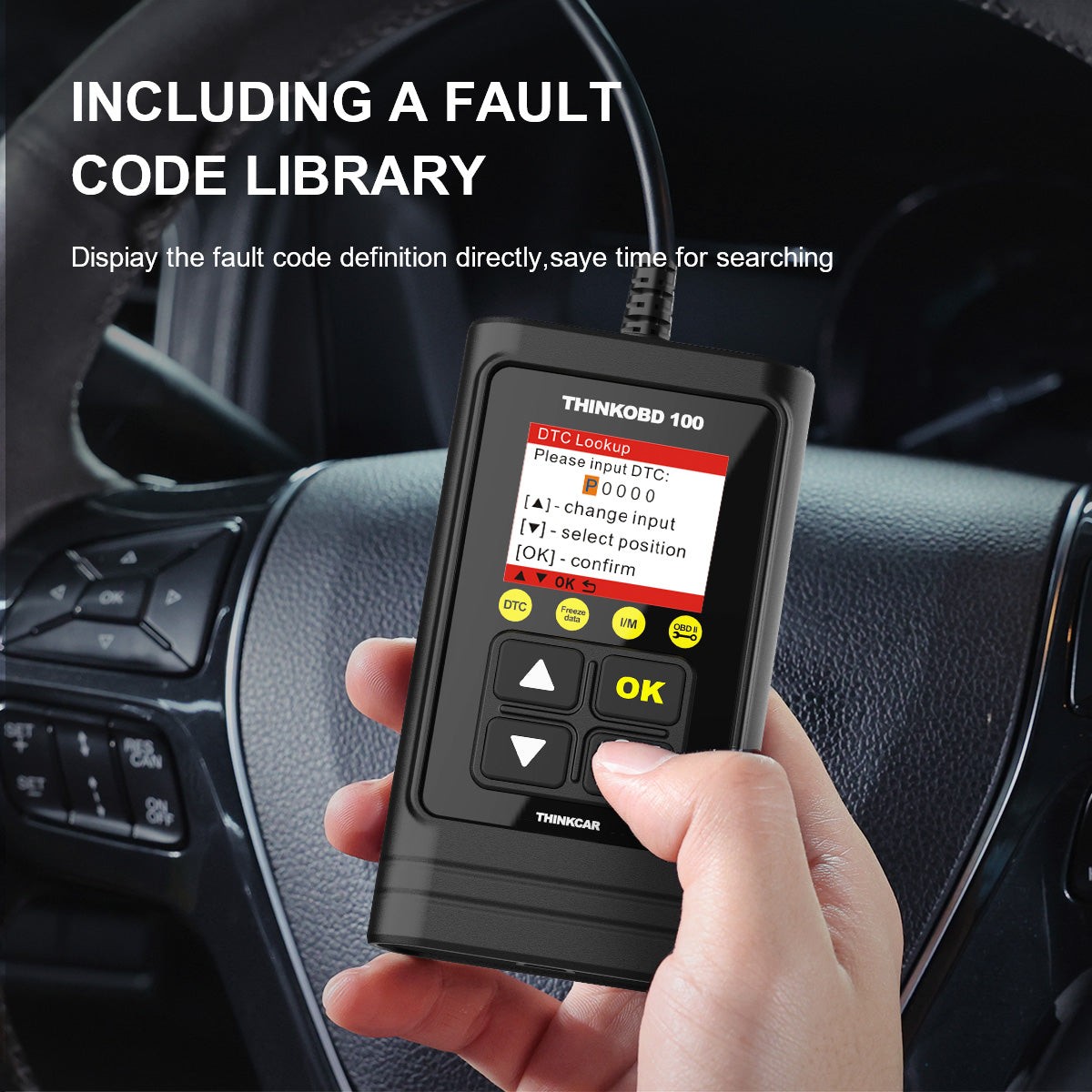

THINKOBD100 Including a fault code library

5. How Does The Thinkobd 100 Obd2 Scanner Compare To Other Diagnostic Tools?

The Thinkobd 100 obd2 scanner is a versatile tool that offers a range of features suitable for both casual car owners and professional technicians. When compared to other diagnostic tools, it stands out in several key areas, including functionality, compatibility, ease of use, and cost-effectiveness.

5.1 Comparison with Basic Code Readers

Basic code readers are simple devices that can read and clear diagnostic trouble codes (DTCs). While they are inexpensive and easy to use, they offer limited functionality compared to the Thinkobd 100.

5.1.1 Functionality

Basic code readers typically only read and clear codes, while the Thinkobd 100 offers a wider range of features, including live data stream, EVAP system test, on-board monitor test, freeze frame data, O2 sensor test, vehicle information, and DTC code look-up.

5.1.2 Compatibility

Both basic code readers and the Thinkobd 100 are compatible with most 1996 and newer vehicles sold in the United States that are OBDII compliant.

5.1.3 Ease of Use

Basic code readers are generally easy to use, but the Thinkobd 100 also features a user-friendly interface and plug and play functionality.

5.1.4 Cost-Effectiveness

Basic code readers are less expensive than the Thinkobd 100, but the Thinkobd 100 offers more value for the money due to its enhanced diagnostic capabilities.

5.2 Comparison with Professional-Grade Scanners

Professional-grade scanners are advanced diagnostic tools that offer a wide range of features, including advanced coding, programming, and bi-directional control. These scanners are typically used by professional technicians in repair shops.

5.2.1 Functionality

Professional-grade scanners offer more functionality than the Thinkobd 100, including advanced coding, programming, and bi-directional control. However, the Thinkobd 100 offers a sufficient range of features for most car owners and some professional technicians.

5.2.2 Compatibility

Both professional-grade scanners and the Thinkobd 100 are compatible with most 1996 and newer vehicles sold in the United States that are OBDII compliant.

5.2.3 Ease of Use

Professional-grade scanners can be complex to use, requiring specialized training and knowledge. The Thinkobd 100 is easier to use, making it accessible to a wider range of users.

5.2.4 Cost-Effectiveness

Professional-grade scanners are significantly more expensive than the Thinkobd 100. The Thinkobd 100 offers a more cost-effective solution for car maintenance and repair.

5.3 Key Differences in Features and Capabilities

To summarize the key differences between the Thinkobd 100, basic code readers, and professional-grade scanners, here is a comparison table:

Feature	Thinkobd 100	Basic Code Reader	Professional-Grade Scanner
Read Codes	Yes	Yes	Yes
Clear Codes	Yes	Yes	Yes
Live Data Stream	Yes	No	Yes
EVAP System Test	Yes	No	Yes
On-Board Monitor Test	Yes	No	Yes
Freeze Frame Data	Yes	No	Yes
O2 Sensor Test	Yes	No	Yes
Vehicle Information	Yes	No	Yes
DTC Code Look-up	Yes	No	Yes
Advanced Coding	No	No	Yes
Programming	No	No	Yes
Bi-Directional Control	No	No	Yes
Cost	Moderate	Low	High
Ease of Use	User-Friendly	Easy	Complex

5.4 Choosing the Right Diagnostic Tool for Your Needs

Choosing the right diagnostic tool depends on your needs and budget. If you are a casual car owner looking for a simple tool to read and clear codes, a basic code reader may be sufficient. However, if you want more comprehensive diagnostic capabilities, the Thinkobd 100 is a better choice. If you are a professional technician who needs advanced features such as coding and programming, a professional-grade scanner is necessary.

6. How To Interpret The Data Provided By The Thinkobd 100 Obd2 Scanner?

Interpreting the data provided by the Thinkobd 100 obd2 scanner is crucial for accurately diagnosing and resolving vehicle issues. The scanner provides a variety of data, including diagnostic trouble codes (DTCs), live data streams, and freeze frame data. Understanding how to interpret this data can help you pinpoint the source of a problem and make informed decisions about repairs.

6.1 Understanding Diagnostic Trouble Codes (DTCs)

Diagnostic trouble codes (DTCs) are standardized codes that provide information about the source of a problem in the vehicle. These codes typically consist of five characters: a letter followed by four numbers.

6.1.1 Common DTC Categories

The first letter of the DTC indicates the system in which the problem occurred:

• P: Powertrain (engine and transmission)
• B: Body (interior and exterior)
• C: Chassis (brakes, suspension, and steering)
• U: Network (communication systems)

The numbers that follow the letter provide more specific information about the problem. For example, a code of P0300 indicates a random misfire in the engine.

6.1.2 Using the DTC Code Look-up Feature

The Thinkobd 100’s DTC code look-up feature provides descriptions of the diagnostic trouble codes, helping users understand the meaning of each code and the potential causes of the problem. This feature can be invaluable for diagnosing and resolving car issues.

6.2 Analyzing Live Data Streams

The live data stream feature allows users to view real-time data from various sensors in the vehicle. This data can include engine speed (RPM), coolant temperature, oxygen sensor readings, and more. Analyzing live data can help identify intermittent problems and assess the overall health of the engine.

6.2.1 Identifying Sensor Malfunctions

By monitoring live data from the vehicle’s sensors, you can identify sensor malfunctions. For example, if the oxygen sensor readings are consistently high or low, it may indicate a problem with the sensor.

6.2.2 Monitoring Engine Performance

Live data can also be used to monitor engine performance. For example, monitoring engine speed (RPM) and engine load can help identify problems with the engine’s performance.

6.3 Interpreting Freeze Frame Data

The freeze frame data feature captures a snapshot of the vehicle’s operating conditions when a DTC is stored. This data can include engine speed, engine load, coolant temperature, and more. Analyzing freeze frame data can help diagnose the cause of the problem.

6.3.1 Understanding the Context of the Problem

Freeze frame data provides valuable context about the conditions under which the problem occurred. By analyzing this data, you can gain a better understanding of the potential causes of the problem.

6.3.2 Identifying Intermittent Issues

Freeze frame data can also help identify intermittent issues. By comparing the data from multiple freeze frame events, you can identify patterns and narrow down the potential causes of the problem.

6.4 Using Data to Diagnose Common Issues

To illustrate how to interpret the data provided by the Thinkobd 100, here are a few examples:

• Example 1: A Mercedes-Benz owner notices that the check engine light is on. They use the Thinkobd 100 to read the DTCs and find a code of P0420, which indicates a problem with the catalytic converter. They use the live data stream to monitor the oxygen sensor readings and confirm that the catalytic converter is not functioning correctly.
• Example 2: A Mercedes-Benz technician is diagnosing a rough-shifting transmission. They use the Thinkobd 100 to read the DTCs and find a code of P0715, which indicates a problem with the input speed sensor. They use the live data stream to monitor the input speed sensor readings and confirm that the sensor is not functioning correctly.
• Example 3: A Mercedes-Benz owner is experiencing poor fuel economy. They use the Thinkobd 100 to monitor the live data from the oxygen sensors and notice that one of the sensors is not functioning correctly. They replace the sensor, improving the vehicle’s fuel economy.

7. What Are Some Tips And Tricks For Maximizing The Use Of Your Thinkobd 100?

To maximize the use of your Thinkobd 100 obd2 scanner, it’s important to understand its features and how to apply them effectively. Here are some tips and tricks to help you get the most out of your diagnostic tool.

7.1 Regular Scanning for Preventative Maintenance

Regularly scanning your vehicle with the Thinkobd 100 can help identify potential problems before they become serious. Make it a habit to scan your vehicle every few weeks or after any significant event, such as a long trip or unusual driving conditions.

7.1.1 Identifying Issues Early

By scanning your vehicle regularly, you can identify issues early and take steps to resolve them before they escalate into major repairs.

7.1.2 Monitoring Vehicle Health

Regular scanning can also help you monitor the overall health of your vehicle. By tracking the data over time, you can identify trends and potential problems.

7.2 Understanding and Utilizing Live Data

The Thinkobd 100’s live data stream feature provides valuable information about your vehicle’s operating conditions. Take the time to understand the data and how it relates to your vehicle’s performance.

7.2.1 Monitoring Key Parameters

Focus on monitoring key parameters, such as engine speed (RPM), coolant temperature, oxygen sensor readings, and fuel trim. These parameters can provide valuable insights into your vehicle’s health.

7.2.2 Identifying Anomalies

Look for anomalies in the live data. For example, if the oxygen sensor readings are consistently high or low, it may indicate a problem with the sensor.

7.3 Leveraging Freeze Frame Data for Accurate Diagnosis

Freeze frame data captures a snapshot of your vehicle’s operating conditions when a DTC is stored. Use this data to understand the context of the problem and identify potential causes.

7.3.1 Analyzing the Conditions at the Time of the Fault

Pay close attention to the conditions at the time of the fault, such as engine speed, engine load, and coolant temperature. This information can help you narrow down the potential causes of the problem.

7.3.2 Comparing Freeze Frame Data from Multiple Events

If the problem has occurred multiple times, compare the freeze frame data from each event. This can help you identify patterns and narrow down the potential causes of the problem.

7.4 Keeping Your Scanner Updated

To ensure that your Thinkobd 100 is functioning correctly and providing accurate information, it’s important to keep it updated with the latest software and firmware.

7.4.1 Checking for Updates Regularly

Check for updates regularly and install them as soon as they are available. Updates can include bug fixes, new features, and improved compatibility.

7.4.2 Following the Manufacturer’s Instructions

Follow the manufacturer’s instructions carefully when installing updates. Incorrectly installing an update can cause problems with the scanner.

7.5 Consulting Additional Resources for Complex Issues

While the Thinkobd 100 is a powerful diagnostic tool, it’s not a substitute for professional expertise. For complex issues, consult additional resources, such as repair manuals, online forums, and professional technicians.

7.5.1 Using Repair Manuals and Online Forums

Repair manuals and online forums can provide valuable information about common problems and potential solutions.

7.5.2 Seeking Professional Help When Needed

Don’t hesitate to seek professional help when needed. A qualified technician can provide expert diagnosis and repair services.

8. What Are Some Common Mistakes To Avoid When Using A Thinkobd 100 Obd2 Scanner?

Using a Thinkobd 100 obd2 scanner can greatly assist in diagnosing and resolving vehicle issues, but it’s essential to avoid common mistakes that can lead to inaccurate diagnoses or further complications. Here are some mistakes to steer clear of when using your Thinkobd 100.

8.1 Neglecting to Verify the Scanner’s Compatibility

Before using the Thinkobd 100, it’s crucial to verify its compatibility with your vehicle. While the scanner is compatible with most 1996 and newer vehicles sold in the United States that are OBDII compliant, there may be exceptions.

8.1.1 Checking the Vehicle’s OBDII Compliance

Ensure that your vehicle is OBDII compliant by checking the owner’s manual or consulting a qualified technician.

8.1.2 Confirming the Scanner’s Protocol Support

Confirm that the Thinkobd 100 supports the protocols used by your vehicle. The scanner supports a variety of protocols, including KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN.

8.2 Misinterpreting Diagnostic Trouble Codes (DTCs)

Diagnostic trouble codes (DTCs) can provide valuable information about the source of a problem, but they can also be misinterpreted. It’s important to understand the meaning of the codes and to use the Thinkobd 100’s DTC code look-up feature to view descriptions of the codes.

8.2.1 Understanding the Code Categories

Understand the different code categories, such as powertrain (P), body (B), chassis (C), and network (U).

8.2.2 Using the DTC Code Look-up Feature

Use the Thinkobd 100’s DTC code look-up feature to view descriptions of the codes and potential causes of the problem.

8.3 Clearing Codes Without Addressing the Underlying Issue

Clearing codes without addressing the underlying issue can be a mistake. While clearing codes may turn off the check engine light, the problem will likely return if it is not resolved.

8.3.1 Diagnosing the Root Cause of the Problem

Before clearing codes, take the time to diagnose the root cause of the problem. Use the Thinkobd 100’s live data stream and freeze frame data to gather information about the issue.

8.3.2 Verifying the Repair After Clearing Codes

After clearing codes, verify that the repair has been successful. Monitor the vehicle’s performance and scan for any new codes.

8.4 Ignoring Live Data and Freeze Frame Information

The Thinkobd 100’s live data stream and freeze frame data provide valuable information about your vehicle’s operating conditions. Ignoring this data can make it difficult to accurately diagnose and resolve problems.

8.4.1 Monitoring Key Parameters in Live Data

Monitor key parameters in the live data stream, such as engine speed (RPM), coolant temperature, oxygen sensor readings, and fuel trim.

8.4.2 Analyzing the Conditions in Freeze Frame Data

Analyze the conditions in freeze frame data, such as engine speed, engine load, and coolant temperature.

8.5 Overlooking Basic Maintenance and Inspections

While the Thinkobd 100 is a powerful diagnostic tool, it’s not a substitute for basic maintenance and inspections. Overlooking these tasks can lead to problems that could have been prevented.

8.5.1 Following the Vehicle’s Maintenance Schedule

Follow the vehicle’s maintenance schedule and perform regular maintenance tasks, such as oil changes, filter replacements, and fluid checks.

8.5.2 Inspecting the Vehicle Regularly

Inspect the vehicle regularly for any signs of problems, such as leaks, unusual noises, and worn components.

9. What Are The Safety Precautions To Keep In Mind While Using The Thinkobd 100 Obd2 Scanner?

When using the Thinkobd 100 obd2 scanner, it’s crucial to follow safety precautions to protect yourself and your vehicle. Here are some safety measures
