**What Are Warm Ups OBD2 and Why Do They Matter for Your Car?**

Warm Ups Obd2 involve the engine’s heating cycle monitored by the On-Board Diagnostics II system, critical for emissions readiness and identifying potential issues. At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we help you understand the importance of warm ups, how they relate to OBD2 diagnostics, and what it means for your Mercedes-Benz. This ensures your vehicle runs efficiently and meets emission standards, utilizing diagnostic tools and Mercedes scan tools effectively.

1. What Exactly are Warm Ups OBD2?

Warm ups in the context of OBD2 (On-Board Diagnostics II) refer to the engine’s heating cycle from a cold start to its normal operating temperature. A warm-up cycle is typically defined as the engine coolant temperature (ECT) rising by a minimum of 40°F (22°C) and reaching at least 160°F (71°C). This process is essential for several reasons related to engine performance, emissions control, and diagnostic testing.

1.1 Why Warm Ups Matter

Warm ups are crucial for the following reasons:

• Emissions Readiness: OBD2 systems use warm-up cycles as part of their criteria to determine whether various emissions control systems are functioning correctly. Many diagnostic tests and monitors will only run after a specific number of warm-up cycles have been completed.
• Diagnostic Trouble Codes (DTCs) Clearing: Some vehicle manufacturers design their Engine Control Modules (ECMs) to clear history DTCs and freeze frame data after a certain number of warm-up cycles (e.g., 40). This does not, however, reset readiness flags or clear permanent diagnostic trouble codes (PDTCs).
• Engine Performance: Achieving proper operating temperature is vital for optimal engine performance. Cold engines run less efficiently and produce higher emissions.

1.2 How Warm Ups Work

The ECM monitors several sensors during a warm-up cycle, including:

• Engine Coolant Temperature (ECT) Sensor: This sensor measures the temperature of the engine coolant and is a primary indicator of the engine’s warm-up progress.
• Intake Air Temperature (IAT) Sensor: This sensor measures the temperature of the air entering the engine. It’s used in conjunction with the ECT sensor to determine cold start conditions.

For a cold start to be recognized, the ECT and IAT sensors must be within approximately 10°F (5.5°C) of each other and below 122°F (50°C) at startup.

**1.3 Warm-Up Cycle Counter

Modern vehicles often have a warm-up cycle counter that tracks the number of completed warm-up cycles since the last diagnostic clear. This counter helps technicians and vehicle owners understand how long it has been since the ECM’s memory was reset.

• Low Count: A low warm-up cycle count (e.g., 7) indicates that the ECM memory was recently cleared.
• High Count: A high count (up to 255, the maximum value for many systems) suggests that the memory has not been reset in a long time.

Alt Text: OBD2 scan tool display showing a warm-up cycle counter with a value of 7.

1.4 Common Misconceptions

• Warm Ups Reset Everything: While warm-up cycles can clear history DTCs, they do not reset readiness flags or clear permanent diagnostic trouble codes (PDTCs).
• More Warm Ups Are Always Better: The number of warm-up cycles is more about tracking diagnostic activity than improving performance. Once the engine reaches its optimal operating temperature, additional warm-up cycles do not provide extra benefits.

2. Why are Warm Ups OBD2 Important for Mercedes-Benz Owners?

For Mercedes-Benz owners, understanding warm ups OBD2 is particularly important due to the sophisticated nature of these vehicles’ diagnostic systems.

2.1 Meeting Emission Standards

Mercedes-Benz vehicles are designed to meet stringent emission standards. Warm ups are a critical part of the OBD2 system’s ability to monitor and ensure these standards are met. State emissions programs often use readiness flags, which are influenced by warm-up cycles, as part of their inspection process.

2.2 Identifying Potential Issues

By monitoring warm-up cycles, you can identify potential issues early. For example, if your Mercedes-Benz is taking an unusually long time to complete a warm-up cycle, it could indicate a problem with the thermostat, coolant temperature sensor, or other components.

2.3 Diagnostic Testing

Many diagnostic tests and monitors in Mercedes-Benz vehicles require specific conditions to be met before they can run. These conditions often include completing a certain number of warm-up cycles. Understanding this requirement is essential for accurate and effective diagnostic testing.

2.4 Clearing Diagnostic Trouble Codes (DTCs)

As mentioned earlier, some Mercedes-Benz ECMs are designed to clear history DTCs after a certain number of warm-up cycles. This can be useful in determining whether a problem has been resolved or if it persists.

2.5 Optimizing Engine Performance

Ensuring that your Mercedes-Benz engine reaches its optimal operating temperature quickly and efficiently is crucial for performance and fuel economy. Issues with the warm-up process can lead to reduced performance and increased fuel consumption.

3. Key OBD2 Terms Related to Warm Ups

Understanding the following OBD2 terms will help you better grasp the significance of warm ups in your Mercedes-Benz diagnostics:

3.1 Readiness Flags

Readiness flags indicate whether specific emission-related systems have completed testing. Each readiness flag can consist of one or multiple individual monitor tests. They are crucial for passing state emissions inspections.

• Complete: Indicates that the ECM/PCM has completed testing of specific monitored emission systems since the last memory reset.
• Not Complete: Indicates that one or more required readiness flag monitor tests have not run or have failed since the last diagnostic clear.

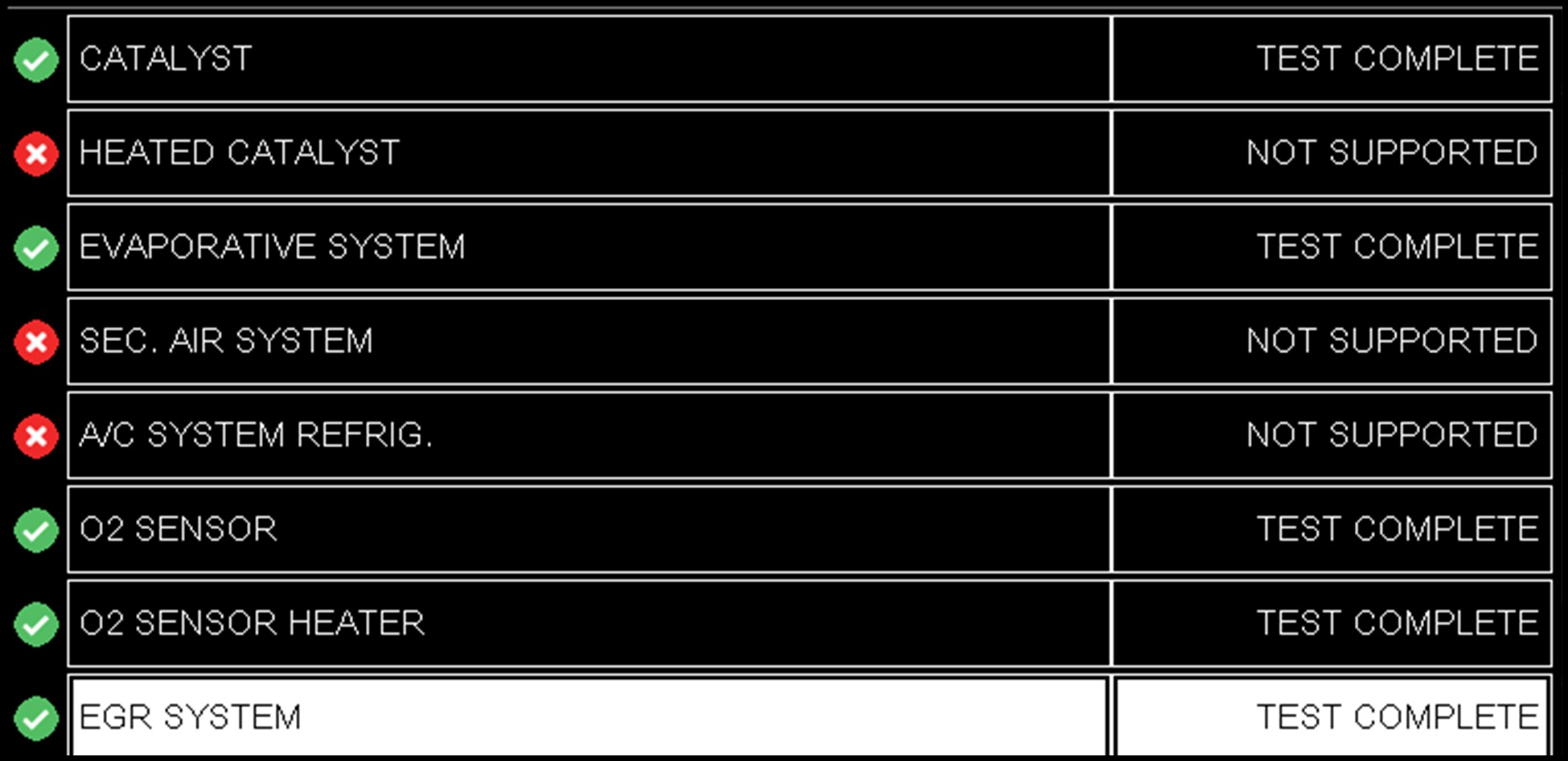

Alt Text: OBD2 scan tool display showing readiness flag statuses, with some flags marked as complete and others as not complete.

3.2 Monitor Tests

A monitor test is a system-specific test that sets a Diagnostic Trouble Code (DTC). Readiness flags require one or more monitor tests to complete the testing of a component or system.

• Continuous Monitor Tests: These tests monitor misfires, fuel systems, and comprehensive components. They can run multiple times per trip and are not typically used during state emissions inspections for gasoline vehicles.
• Non-Continuous Monitor Tests: These tests verify the performance of components such as the catalytic converter, oxygen sensors, EGR/VVT, EVAP, and secondary air injection. Their status is displayed in MODE $01 and is used in state emissions inspection programs.

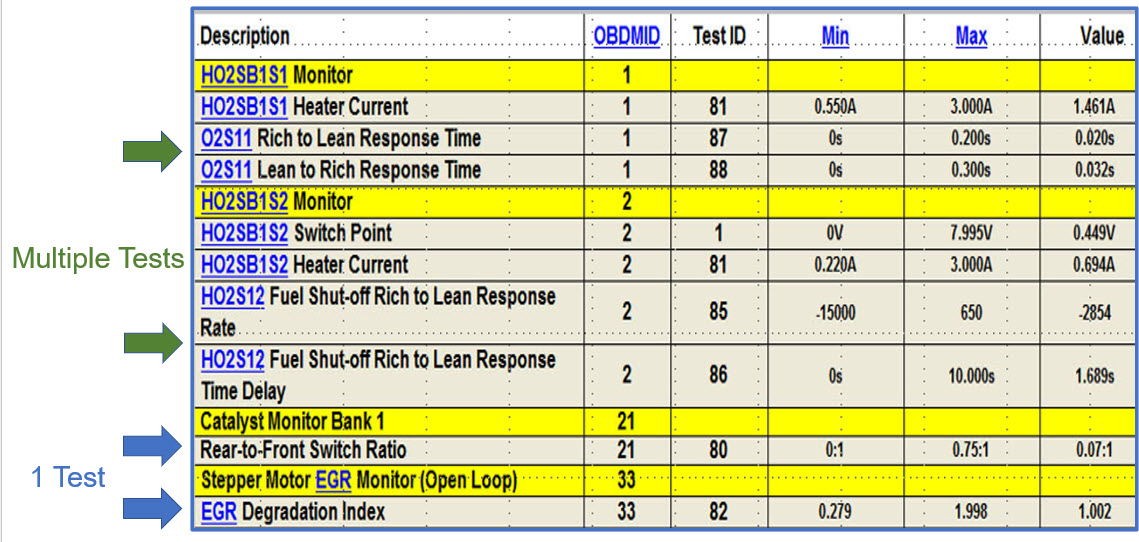

Alt Text: An OBD2 scan tool displaying monitor test results, showing whether specific tests have passed or failed.

3.3 Diagnostic Trouble Codes (DTCs)

DTCs are codes stored in the ECM that indicate a problem with a specific system or component. They are triggered when a monitor test fails.

3.4 Freeze Frame Data

Freeze frame data captures the engine conditions at the time a DTC was set. This data can be invaluable for diagnosing the cause of the problem.

3.5 Malfunction Indicator Lamp (MIL)

The MIL, also known as the check engine light, illuminates when the ECM detects a problem that could cause tailpipe emissions to exceed 1.5 times Federal Test Procedure standards.

• Steady Illumination: Indicates a persistent problem.
• Flashing: Indicates a misfire or fuel control system problem that could damage the catalytic converter.

Alt Text: Dashboard view showing the malfunction indicator lamp (MIL), commonly known as the check engine light, illuminated.

3.6 Trip

A trip involves starting the engine (key-on engine-off or key-on engine running), completing the enable criteria for a monitor test, and then turning the engine off. The trip ends when the scan tool no longer communicates with the ECM.

3.7 Drive Cycle

A drive cycle combines enable criteria and a trip. To complete an entire drive cycle, the enable criteria must be met in one key cycle, during which all readiness flags are flipped to Complete.

4. How to Use OBD2 Tools to Monitor Warm Ups on Your Mercedes-Benz

Monitoring warm ups on your Mercedes-Benz is straightforward with the right OBD2 tools and knowledge. Here’s how to do it:

4.1 Choosing the Right OBD2 Tool

Select an OBD2 scanner compatible with Mercedes-Benz vehicles. Some popular options include:

• Autel MaxiSys Elite: A professional-grade scanner with advanced diagnostic capabilities.
• Launch X431 V+: A versatile scanner that supports a wide range of vehicle makes and models.
• iCarsoft MB V3.0: A scanner specifically designed for Mercedes-Benz vehicles.
• MERCEDES-DIAGNOSTIC-TOOL.EDU.VN: Our own specialized tool for Mercedes-Benz diagnostics, offering deep insights and tailored functionality.

4.2 Connecting the OBD2 Scanner

1. Locate the OBD2 port in your Mercedes-Benz. It is typically found under the dashboard on the driver’s side.
2. Plug the OBD2 scanner into the port.
3. Turn the ignition on, but do not start the engine (key-on engine-off position).
4. Power on the OBD2 scanner and follow the on-screen instructions to connect to the vehicle’s ECM.

4.3 Monitoring Warm-Up Data

1. Navigate to the “Live Data” or “Real-Time Data” section of the OBD2 scanner.
2. Select the following parameters to monitor:
   • Engine Coolant Temperature (ECT)
   • Intake Air Temperature (IAT)
   • Warm-Up Cycle Counter (if available)
3. Start the engine and observe the data.
4. Monitor how quickly the ECT rises and how long it takes to reach the minimum operating temperature of 160°F (71°C).
5. Check the warm-up cycle counter to see how many cycles have been completed since the last diagnostic clear.

4.4 Interpreting the Data

• Slow Warm-Up: If the ECT rises very slowly, it could indicate a problem with the thermostat or cooling system.
• IAT and ECT Discrepancy: If the IAT and ECT readings are significantly different, it could indicate a faulty sensor.
• Warm-Up Cycle Counter: Use this counter to track how long it has been since the ECM memory was reset.

4.5 Using MERCEDES-DIAGNOSTIC-TOOL.EDU.VN

Our specialized tool offers even more detailed insights into your Mercedes-Benz’s warm-up cycles and overall diagnostic health. It provides:

• Mercedes-Specific Data: Access to Mercedes-specific diagnostic data and trouble codes.
• Advanced Monitoring: Real-time monitoring of key parameters with enhanced accuracy.
• User-Friendly Interface: An intuitive interface designed for both professionals and DIY enthusiasts.

By using MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, you can gain a deeper understanding of your Mercedes-Benz’s warm-up cycles and identify potential issues before they become serious problems.

5. Troubleshooting Warm-Up Issues on Your Mercedes-Benz

If you notice issues with the warm-up process on your Mercedes-Benz, here are some common problems and troubleshooting steps:

5.1 Common Problems

• Faulty Thermostat: A thermostat that is stuck open can cause the engine to take much longer to reach its operating temperature.
• Faulty Coolant Temperature Sensor: A bad ECT sensor can provide inaccurate temperature readings to the ECM, affecting engine performance and diagnostics.
• Cooling System Leaks: Leaks in the cooling system can reduce coolant levels, leading to slower warm-up times.
• Air in the Cooling System: Air pockets in the cooling system can interfere with proper coolant circulation and heat transfer.

5.2 Troubleshooting Steps

1. Check the Thermostat:

   • Visual Inspection: Inspect the thermostat housing for leaks or damage.
   • Temperature Test: Use an infrared thermometer to measure the temperature of the upper radiator hose after the engine has been running for a few minutes. If the hose is cold while the engine is warming up, the thermostat may be stuck open.
   • Replacement: If the thermostat is faulty, replace it with a new one. Ensure you use a thermostat designed for your Mercedes-Benz model.

2. Check the Coolant Temperature Sensor:

   • Scan Tool Reading: Use an OBD2 scanner to monitor the ECT sensor reading. Compare it to the actual engine temperature.
   • Wiring Inspection: Check the wiring and connectors for the ECT sensor. Look for damage, corrosion, or loose connections.
   • Sensor Test: Use a multimeter to test the ECT sensor’s resistance. Compare the reading to the manufacturer’s specifications.
   • Replacement: If the ECT sensor is faulty, replace it with a new one.

3. Check for Cooling System Leaks:

   • Visual Inspection: Inspect the radiator, hoses, water pump, and thermostat housing for signs of leaks. Look for coolant stains or drips.
   • Pressure Test: Use a cooling system pressure tester to pressurize the system and check for leaks.
   • Repair Leaks: Repair any leaks you find by replacing hoses, tightening clamps, or replacing faulty components.

4. Bleed the Cooling System:

   • Locate Bleeder Valves: Find the bleeder valves on the engine or radiator.
   • Open Valves: Open the bleeder valves while the engine is running to allow air to escape.
   • Add Coolant: Add coolant to the system as needed to maintain the proper level.
   • Close Valves: Close the bleeder valves once all the air has been purged from the system.

5.3 Using MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for Troubleshooting

Our tool can assist you in troubleshooting warm-up issues by providing:

• Detailed Diagnostic Codes: Specific DTCs related to warm-up problems.
• Real-Time Data Analysis: In-depth analysis of ECT, IAT, and other relevant parameters.
• Mercedes-Specific Procedures: Step-by-step troubleshooting procedures tailored to your Mercedes-Benz model.

By leveraging the capabilities of MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, you can efficiently diagnose and resolve warm-up issues on your Mercedes-Benz.

6. Real-World Examples of Warm Ups OBD2 in Action

Let’s look at some real-world examples to illustrate how warm ups OBD2 can affect your Mercedes-Benz:

6.1 Example 1: Failing Emissions Inspection

Scenario: A Mercedes-Benz owner fails a state emissions inspection due to incomplete readiness flags.

Diagnosis: The technician uses an OBD2 scanner to check the readiness flag status. They find that the catalyst monitor and EVAP system monitor are not complete. Further investigation reveals that the vehicle has not completed enough warm-up cycles since the last diagnostic clear.

Solution: The technician advises the owner to drive the vehicle for several days, ensuring that they complete multiple warm-up cycles. After a week, the owner returns for a re-inspection. This time, the readiness flags are complete, and the vehicle passes the emissions inspection.

6.2 Example 2: Slow Engine Warm-Up

Scenario: A Mercedes-Benz owner notices that their engine is taking an unusually long time to reach its operating temperature.

Diagnosis: The owner uses an OBD2 scanner to monitor the ECT sensor reading. They observe that the temperature rises very slowly. Suspecting a faulty thermostat, they perform a visual inspection and temperature test. The upper radiator hose remains cold while the engine is warming up, confirming that the thermostat is stuck open.

Solution: The owner replaces the thermostat with a new one. After the replacement, the engine warms up much faster, and the owner notices improved fuel economy and performance.

6.3 Example 3: Check Engine Light Illumination

Scenario: A Mercedes-Benz owner experiences the check engine light illuminating on their dashboard.

Diagnosis: The owner connects an OBD2 scanner and retrieves a DTC related to the coolant temperature sensor. They check the sensor’s wiring and find a loose connection.

Solution: The owner secures the connection, clears the DTC, and monitors the ECT sensor reading. The check engine light does not reappear, and the owner confirms that the problem has been resolved.

6.4 Leveraging MERCEDES-DIAGNOSTIC-TOOL.EDU.VN in Real-World Scenarios

In each of these examples, using MERCEDES-DIAGNOSTIC-TOOL.EDU.VN would have provided even more detailed information and streamlined the diagnostic process. Our tool offers:

• Mercedes-Specific DTCs: More precise diagnostic codes for faster troubleshooting.
• Guided Diagnostics: Step-by-step instructions tailored to Mercedes-Benz vehicles.
• Expert Support: Access to our team of Mercedes-Benz diagnostic specialists.

By utilizing MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, you can tackle even the most challenging warm-up related issues with confidence.

7. Benefits of Using MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for Warm Ups OBD2

Choosing MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for your Mercedes-Benz diagnostic needs offers several key benefits:

7.1 Mercedes-Specific Expertise

Our tool is specifically designed for Mercedes-Benz vehicles, providing unmatched accuracy and reliability.

7.2 Comprehensive Diagnostic Capabilities

From monitoring warm-up cycles to reading and clearing DTCs, our tool offers a wide range of diagnostic functions.

7.3 User-Friendly Interface

Our intuitive interface makes it easy for both professionals and DIY enthusiasts to use the tool effectively.

7.4 Real-Time Data Analysis

Monitor key parameters in real-time to gain a deeper understanding of your vehicle’s performance.

7.5 Expert Support

Access our team of Mercedes-Benz diagnostic specialists for assistance with any questions or issues.

7.6 Cost Savings

By diagnosing and resolving problems yourself, you can save money on expensive trips to the dealership.

7.7 Enhanced Vehicle Performance

Ensure your Mercedes-Benz is running at its best by monitoring warm-up cycles and addressing any issues promptly.

8. Step-by-Step Guide: Performing an OBD2 Warm-Up Cycle Test on Your Mercedes

Here’s a detailed guide to help you perform an OBD2 warm-up cycle test on your Mercedes-Benz:

8.1 Preparation

1. Gather Your Tools: You’ll need an OBD2 scanner, preferably one that supports live data monitoring.
2. Ensure Safety: Park your Mercedes-Benz in a safe, well-ventilated area.
3. Check Coolant Level: Verify that the coolant level is at the recommended level.
4. Review Readiness Monitors: Use your OBD2 scanner to check the status of the readiness monitors. Note which monitors are not yet complete.

8.2 Starting the Warm-Up Cycle

1. Cold Start: Ensure the engine is completely cold. The engine coolant temperature (ECT) and intake air temperature (IAT) should be within 10°F (5.5°C) of each other and below 122°F (50°C).
2. Start the Engine: Turn the ignition key to start the engine.
3. Monitor Engine Temperature: Use your OBD2 scanner to monitor the ECT. Watch for the temperature to rise steadily.

8.3 Driving the Vehicle

1. Idle Phase: Allow the engine to idle for approximately 2-3 minutes. This helps the engine reach a stable temperature.
2. Low-Speed Driving: Drive the vehicle at a low speed (around 25-35 mph) for about 5-10 minutes. Avoid sudden acceleration or deceleration.
3. Highway Driving: Drive the vehicle on the highway at a steady speed (around 55-65 mph) for about 15-20 minutes. This helps the engine reach its optimal operating temperature.
4. Deceleration: Allow the vehicle to decelerate without using the brakes. This can help activate certain readiness monitors.

8.4 Completing the Cycle

1. Return to Idle: Return the vehicle to idle for 2-3 minutes.
2. Check Readiness Monitors: Use your OBD2 scanner to check the status of the readiness monitors again. See if any additional monitors have been completed.
3. Repeat if Necessary: If some monitors are still not complete, repeat the driving cycle as needed. It may take several drive cycles to complete all the readiness monitors.

8.5 Special Considerations

• EVAP Monitor: The EVAP (Evaporative Emission Control System) monitor often requires specific conditions to run, such as a fuel level between 15% and 85%.
• Catalyst Monitor: The catalyst monitor requires the engine to reach a high temperature and maintain a steady speed.

8.6 Using MERCEDES-DIAGNOSTIC-TOOL.EDU.VN

Our tool can simplify this process by:

• Providing Specific Drive Cycle Recommendations: Tailored to your Mercedes-Benz model.
• Monitoring Readiness Monitors in Real-Time: Allowing you to see exactly when each monitor is completed.
• Offering Troubleshooting Tips: If any monitors are not completing as expected.

9. FAQ About Warm Ups OBD2

Here are some frequently asked questions about warm ups OBD2:

9.1 What is a warm-up cycle in OBD2 terms?

A warm-up cycle is when the engine coolant temperature (ECT) rises by a minimum of 40°F (22°C) and reaches at least 160°F (71°C).

9.2 Why are warm-up cycles important?

Warm-up cycles are important for emissions readiness, clearing history DTCs, and ensuring optimal engine performance.

9.3 How many warm-up cycles are needed to clear DTCs?

The number of warm-up cycles needed to clear DTCs varies by manufacturer, but it is often around 40.

9.4 Do warm-up cycles reset readiness flags?

No, warm-up cycles do not reset readiness flags.

9.5 What is a readiness flag?

A readiness flag indicates whether a specific emission-related system has completed testing.

9.6 How do I monitor warm-up cycles on my Mercedes-Benz?

You can monitor warm-up cycles using an OBD2 scanner that supports live data monitoring.

9.7 What is the ideal engine coolant temperature for optimal performance?

The ideal engine coolant temperature is typically between 195°F (90°C) and 220°F (104°C).

9.8 What are the common causes of slow engine warm-up?

Common causes of slow engine warm-up include a faulty thermostat, a bad coolant temperature sensor, and cooling system leaks.

9.9 Can I use MERCEDES-DIAGNOSTIC-TOOL.EDU.VN to monitor warm-up cycles?

Yes, MERCEDES-DIAGNOSTIC-TOOL.EDU.VN provides detailed monitoring of warm-up cycles and other diagnostic data for Mercedes-Benz vehicles.

9.10 Where can I get help with warm-up issues on my Mercedes-Benz?

You can get help with warm-up issues from a qualified mechanic or by contacting our expert support team at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN.

10. Conclusion: Taking Control of Your Mercedes-Benz Diagnostics

Understanding warm ups OBD2 is crucial for maintaining the performance and longevity of your Mercedes-Benz. By monitoring warm-up cycles, you can identify potential issues early, ensure that your vehicle meets emission standards, and optimize engine performance. With the right tools and knowledge, you can take control of your Mercedes-Benz diagnostics and save money on expensive repairs.

At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we are committed to providing you with the tools and expertise you need to keep your Mercedes-Benz running at its best. Our specialized diagnostic tool offers unmatched accuracy, reliability, and user-friendliness. Whether you’re a professional mechanic or a DIY enthusiast, we have the solutions you need to succeed.

Don’t wait until a small problem becomes a major repair. Invest in your Mercedes-Benz today and experience the peace of mind that comes with knowing your vehicle is in top condition.

Ready to take control of your Mercedes-Benz diagnostics? Contact us today for a consultation on our diagnostic tools, services for unlocking hidden features, and expert guidance on repairs and maintenance. Reach out to us at 789 Oak Avenue, Miami, FL 33101, United States. Call or message us on WhatsApp at +1 (641) 206-8880, or visit our website at MERCEDES-DIAGNOSTIC-TOOL.EDU.VN.
