What OBD2 Protocol Is My Car Using And How To Find Out?

Determining “What Obd2 Protocol Is My Car” is crucial for effective vehicle diagnostics and repair. At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we guide you through identifying your car’s OBD2 protocol, ensuring you use the correct diagnostic tools. Understanding this will empower you to unlock your car’s hidden data and maintain it effectively. Master OBD2 protocols, vehicle diagnostics and car maintenance with us.

1. Understanding OBD2 Protocols: An Overview

All cars and light trucks sold in the United States after 1996 are required to be OBD-II compliant. The European Union OBD legislation is somewhat more complicated. But what does this compliance really mean for your vehicle, especially your Mercedes-Benz? It boils down to standardized communication protocols that allow diagnostic tools to interface with your car’s computer. Let’s explore these protocols.

1.1. What is OBD2?

OBD2, or On-Board Diagnostics II, is a standardized system that allows you to access the health information of your vehicle. It’s like a universal translator for your car, providing codes and data that can be interpreted by diagnostic tools.

1.2. Why is OBD2 Important?

OBD2 is important because it allows vehicle owners and technicians to:

• Monitor vehicle performance.
• Diagnose problems quickly and accurately.
• Ensure vehicles meet emissions standards.
• Access a wealth of data for maintenance and repair.

1.3. The Five Main OBD2 Protocols

An OBD-II compliant vehicle can use any of the five communication protocols: J1850 PWM, J1850 VPW, ISO9141-2, ISO14230-4 (also known as Keyword Protocol 2000), and more recently, ISO15765-4/SAE J2480 (a “flavor” of CAN). Here is an explanation of each protocol:

1. J1850 PWM (Pulse Width Modulation): Used primarily by Ford vehicles. This protocol communicates by varying the width of a pulse signal.
2. J1850 VPW (Variable Pulse Width): Used mainly by General Motors vehicles. VPW also uses pulse width modulation, but with a different voltage level.
3. ISO9141-2: Common in European and Asian vehicles. This protocol uses an asynchronous serial communication.
4. ISO14230-4 (Keyword Protocol 2000 or KWP2000): An evolution of ISO9141-2, offering faster data rates and is prevalent in European vehicles, including some Mercedes-Benz models.
5. ISO15765-4/SAE J2480 (CAN or Controller Area Network): The modern standard, CAN is used by almost all vehicles manufactured after 2008. It’s a high-speed protocol that allows various ECUs (Electronic Control Units) in the car to communicate with each other.

1.4. Transition to CAN Protocol

US car manufacturers were not allowed to use CAN until model year 2003, but as of model year 2008 and going forward, all vehicles will use the CAN protocol. This standardization makes diagnostics more straightforward but understanding the transition can help when dealing with older models.

2. Identifying Your Mercedes-Benz OBD2 Protocol

Pinpointing the correct OBD2 protocol is essential for effective diagnostics. Here’s how to determine which protocol your Mercedes-Benz uses.

2.1. Understanding the Diagnostic Link Connector (DLC)

There are two types of diagnostic link connectors (DLCs) defined by SAE J1962 – Type A and Type B. The main difference between the two connectors is in the shape of the alignment tab. The DLC is your gateway to accessing your car’s computer. It’s usually located within easy reach of the driver.

2.2. Location of the DLC

According to J1962, Type A DLC “shall be located in the passenger or driver’s compartment in the area bounded by the driver’s end of the instrument panel to 300 mm (~1 ft) beyond the vehicle centerline, attached to the instrument panel and easy to access from the driver’s seat. The preferred location is between the steering column and the vehicle centerline.”

Type B DLC “shall be located in the passenger or driver’s compartment in the area bounded by the driver’s end of the instrument panel, including the outer side, and an imagined line 750 mm (~2.5 ft) beyond the vehicle centerline. It shall be attached to the instrument panel and easy to access from the driver’s seat or from the Co-drivers seat or from the outside. The vehicle connector shall be mounted to facilitate mating and unmating.”

J1962 Vehicle Connector, Type A

Fig. 1 – J1962 Vehicle Connector, Type A. This connector is commonly found in many vehicles.

2.3. Visual Inspection of the DLC

Visually inspect your car’s DLC. Note the shape and any identifying marks. This can sometimes provide a clue as to the type of connector and, potentially, the protocol used.

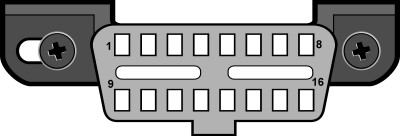

J1962 Vehicle Connector, Type B

Fig. 2 – J1962 Vehicle Connector, Type B. This connector type may require special adapters for certain diagnostic tools.

2.4. Decoding the Pinout

As a general rule, you can determine which protocol your vehicle is using by looking at the pinout of the DLC: Examining the pins within the DLC can tell you a lot about the protocol in use.

J1962 OBDII connector pinout

Fig. 3 – J1962 OBDII Connector Pinout. Identifying the pins present in your DLC is crucial for determining the OBD2 protocol.

2.5. Interpreting Pin Configurations

The following table explains how to determine the protocol:

Pin 2	Pin 6	Pin 7	Pin 10	Pin 14	Pin 15	Standard
must have	–	–	must have	–	–	J1850 PWM
must have	–	–	–	–	–	J1850 VPW
–	–	must have	–	–	may have*	ISO9141/14230
–	must have	–	–	must have	–	ISO15765 (CAN)

*Pin 15 (also called the “L-line”) is optional in newer vehicles that use the ISO9141-2 or ISO14230-4 protocols.

In addition to pins 2, 7, 10, and 15, the connector should have pins 4 (Chassis Ground), 5 (Signal Ground), and 16 (Battery Positive). This means that:

PWM	The connector must have pins 2, 4, 5, 10, and 16
VPW	The connector must have pins 2, 4, 5, and 16, but not 10.
ISO	The connector must have pins 4, 5, 7, and 16. Pin 15 may or may not be present.
CAN	The connector must have pins 4, 5, 6, 14, and 16

2.6. Consulting Your Mercedes-Benz Vehicle Manual

Your vehicle manual often contains information about the OBD2 protocol used by your car. Check the specifications or diagnostic information sections.

2.7. Online Databases and Forums

Online databases and forums dedicated to Mercedes-Benz vehicles can provide insights into the OBD2 protocol used in specific models. Websites like MBWorld and BenzForum are great resources.

2.8. Using a Diagnostic Tool for Identification

Some advanced diagnostic tools can automatically identify the OBD2 protocol in use. These tools connect to your DLC and analyze the communication signals.

3. Step-by-Step Guide to Finding Your OBD2 Protocol

Let’s break down the process into a manageable, step-by-step guide.

3.1. Gather Necessary Tools

• A flashlight for inspecting the DLC.
• Your Mercedes-Benz vehicle manual.
• A pen and paper for notes.

3.2. Locate the DLC

Refer to your vehicle manual for the exact location of the DLC. Common locations include under the dashboard, near the steering column, or in the center console.

3.3. Perform a Visual Inspection

Use the flashlight to inspect the DLC. Note the shape, size, and any markings. Compare it to the Type A and Type B connectors described earlier.

3.4. Check the Pinout Configuration

Examine the pins inside the DLC. Compare the pin configuration to the table provided in Section 2.5. Note which pins are present.

3.5. Consult Your Vehicle Manual

Look in your vehicle manual for information about the OBD2 protocol. Check the specifications or diagnostic information sections.

3.6. Research Online

If the manual doesn’t provide the information, search online databases and forums dedicated to Mercedes-Benz vehicles. Include your car’s year, make, and model in your search query.

3.7. Use a Diagnostic Tool (Optional)

If you have access to a diagnostic tool, connect it to the DLC and follow the tool’s instructions to identify the OBD2 protocol.

4. Implications of Knowing Your OBD2 Protocol

Understanding your car’s OBD2 protocol opens up a world of possibilities.

4.1. Selecting the Right Diagnostic Tools

Knowing your OBD2 protocol ensures you select the correct diagnostic tools and adapters. Using the wrong tool can lead to inaccurate readings or even damage to your car’s computer.

4.2. Compatibility with Scanning Devices

Different OBD2 protocols require different scanning devices. Ensure your scanner is compatible with your car’s protocol for accurate diagnostics.

4.3. Ensuring Accurate Data Interpretation

Each OBD2 protocol transmits data differently. Knowing the protocol ensures that the data is interpreted correctly, leading to accurate diagnoses and effective repairs.

4.4. Accessing Advanced Features

Some advanced diagnostic tools offer features like live data streaming, component testing, and coding. Knowing your OBD2 protocol allows you to access these features, providing deeper insights into your car’s performance.

4.5. DIY Repairs and Maintenance

With the right tools and knowledge, you can perform DIY repairs and maintenance on your Mercedes-Benz. Understanding the OBD2 protocol is essential for accessing the information needed for these tasks.

5. Common OBD2 Trouble Codes and Their Meanings for Mercedes-Benz

Understanding common OBD2 trouble codes can help you diagnose and fix issues efficiently.

5.1. P0171: System Too Lean (Bank 1)

This code indicates that the engine is running lean, meaning there is too much air and not enough fuel in the air-fuel mixture. Common causes include vacuum leaks, faulty oxygen sensors, or a malfunctioning mass airflow (MAF) sensor.

5.2. P0300: Random/Multiple Cylinder Misfire Detected

This code indicates that one or more cylinders are misfiring randomly. Possible causes include faulty spark plugs, ignition coils, fuel injectors, or vacuum leaks.

5.3. P0401: Exhaust Gas Recirculation (EGR) Flow Insufficient Detected

This code indicates that the EGR system is not functioning correctly. Common causes include a clogged EGR valve, faulty EGR sensor, or vacuum leaks in the EGR system.

5.4. P0420: Catalyst System Efficiency Below Threshold (Bank 1)

This code indicates that the catalytic converter is not functioning efficiently. Common causes include a faulty catalytic converter, oxygen sensors, or exhaust leaks.

5.5. P0505: Idle Air Control (IAC) System Malfunction

This code indicates a problem with the idle air control system. Common causes include a faulty IAC valve, vacuum leaks, or a dirty throttle body.

5.6. Reading and Interpreting Codes

When you retrieve an OBD2 code, research its meaning and potential causes. Use online resources, forums, and your vehicle manual to understand the code and possible solutions.

5.7. Clearing Codes

After fixing the issue, clear the OBD2 code using a diagnostic tool. Monitor your car to ensure the code does not reappear.

6. Advanced Diagnostic Techniques for Mercedes-Benz

Explore advanced diagnostic techniques to maintain your Mercedes-Benz at its peak performance.

6.1. Live Data Streaming

Live data streaming allows you to monitor various parameters in real-time, such as engine RPM, coolant temperature, and oxygen sensor readings. This can help you identify intermittent issues and diagnose problems more accurately.

6.2. Component Testing

Component testing involves using a diagnostic tool to activate and test individual components, such as fuel injectors, ignition coils, and sensors. This can help you determine if a component is functioning correctly.

6.3. Coding and Programming

Coding and programming allow you to customize your car’s settings, such as enabling or disabling features, adjusting parameters, and updating software. This requires advanced diagnostic tools and knowledge.

6.4. Using Oscilloscopes and Multimeters

Oscilloscopes and multimeters are valuable tools for diagnosing electrical issues. They allow you to measure voltage, current, and resistance, helping you identify faulty wiring, sensors, and components.

6.5. Smoke Testing for Vacuum Leaks

Smoke testing involves using a smoke machine to introduce smoke into the intake system. This can help you identify vacuum leaks, which can cause various issues, such as rough idling, poor performance, and OBD2 codes.

7. Tips for Maintaining Your Mercedes-Benz OBD2 System

Proper maintenance of your OBD2 system ensures accurate diagnostics and optimal vehicle performance.

7.1. Regular Check-Ups

Perform regular check-ups using a diagnostic tool to monitor your car’s health. This can help you identify potential issues before they become major problems.

7.2. Keeping Your DLC Clean

Keep your DLC clean and free of debris. Use a contact cleaner to ensure good connectivity between the diagnostic tool and your car’s computer.

7.3. Inspecting Wiring and Connectors

Regularly inspect the wiring and connectors associated with the OBD2 system. Look for signs of damage, corrosion, or loose connections.

7.4. Updating Your Diagnostic Tools

Keep your diagnostic tools updated with the latest software and firmware. This ensures compatibility with newer vehicles and access to the latest features.

7.5. Addressing Issues Promptly

Address any OBD2 codes or diagnostic findings promptly. Ignoring issues can lead to further damage and more costly repairs.

8. Common Mistakes to Avoid When Working with OBD2 Systems

Avoid these common mistakes to ensure safe and effective diagnostics.

8.1. Using Incompatible Tools

Using incompatible diagnostic tools can lead to inaccurate readings or damage to your car’s computer. Always ensure your tool is compatible with your car’s OBD2 protocol.

8.2. Ignoring Warning Signs

Ignoring warning signs, such as unusual noises, smells, or performance issues, can lead to more significant problems. Address these issues promptly to prevent further damage.

8.3. Misinterpreting Codes

Misinterpreting OBD2 codes can lead to incorrect diagnoses and unnecessary repairs. Research the meaning of the code and consider all possible causes before taking action.

8.4. Neglecting Basic Maintenance

Neglecting basic maintenance, such as oil changes, spark plug replacements, and air filter replacements, can negatively impact your car’s performance and trigger OBD2 codes.

8.5. Overlooking Vacuum Leaks

Overlooking vacuum leaks is a common mistake. Vacuum leaks can cause various issues, such as rough idling, poor performance, and OBD2 codes. Use smoke testing to identify and fix vacuum leaks.

9. Resources for Further Learning About OBD2 and Mercedes-Benz Diagnostics

Expand your knowledge of OBD2 and Mercedes-Benz diagnostics with these valuable resources.

9.1. Online Forums and Communities

Online forums and communities, such as MBWorld and BenzForum, offer a wealth of information, tips, and advice from fellow Mercedes-Benz owners and enthusiasts.

9.2. Technical Manuals and Guides

Technical manuals and guides provide detailed information about your car’s systems, components, and diagnostic procedures. These resources can be invaluable for DIY repairs and maintenance.

9.3. Online Courses and Training Programs

Online courses and training programs offer structured learning opportunities to expand your knowledge of OBD2 and Mercedes-Benz diagnostics. These programs often cover advanced topics and techniques.

9.4. Manufacturer Websites and Resources

Manufacturer websites and resources, such as the Mercedes-Benz USA website, provide information about your car’s systems, maintenance schedules, and diagnostic procedures.

9.5. Local Workshops and Seminars

Local workshops and seminars offer hands-on learning opportunities to improve your diagnostic skills. These events often feature expert instructors and real-world examples.

10. Why Choose MERCEDES-DIAGNOSTIC-TOOL.EDU.VN for Your Diagnostic Needs?

At MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, we provide comprehensive solutions for all your Mercedes-Benz diagnostic needs.

10.1. Expert Guidance and Support

We offer expert guidance and support to help you diagnose and fix issues with your Mercedes-Benz. Our team of experienced technicians is available to answer your questions and provide assistance.

10.2. Comprehensive Diagnostic Tools

We offer a wide range of comprehensive diagnostic tools specifically designed for Mercedes-Benz vehicles. Our tools are compatible with various OBD2 protocols and provide accurate, reliable results.

10.3. Step-by-Step Tutorials and Guides

We provide step-by-step tutorials and guides to help you perform DIY repairs and maintenance on your Mercedes-Benz. Our tutorials cover a wide range of topics and are easy to follow.

10.4. Access to Exclusive Information and Resources

We offer access to exclusive information and resources, including technical manuals, diagnostic procedures, and coding information. Our resources can help you unlock your car’s hidden potential.

10.5. Community and Networking Opportunities

We provide community and networking opportunities to connect with fellow Mercedes-Benz owners and enthusiasts. Share your experiences, ask questions, and learn from others.

11. Stay Up-to-Date with OBD2 Technology and Mercedes-Benz Diagnostics

Keep abreast of the latest advancements in OBD2 technology and Mercedes-Benz diagnostics.

11.1. Subscribing to Newsletters and Updates

Subscribe to newsletters and updates from MERCEDES-DIAGNOSTIC-TOOL.EDU.VN to receive the latest information about OBD2 technology, Mercedes-Benz diagnostics, and new products and services.

11.2. Following Industry Blogs and Publications

Follow industry blogs and publications to stay informed about the latest trends, techniques, and best practices in automotive diagnostics.

11.3. Attending Trade Shows and Conferences

Attend trade shows and conferences to network with industry professionals, learn about new technologies, and see the latest products and services.

11.4. Participating in Online Forums and Discussions

Participate in online forums and discussions to share your knowledge, ask questions, and learn from others.

11.5. Continuously Expanding Your Knowledge

Continuously expand your knowledge of OBD2 technology and Mercedes-Benz diagnostics through online courses, technical manuals, and hands-on experience.

12. Frequently Asked Questions (FAQs) About OBD2 Protocols

Find answers to common questions about OBD2 protocols and Mercedes-Benz diagnostics.

12.1. What is the most common OBD2 protocol used in Mercedes-Benz vehicles?

The most common OBD2 protocol used in Mercedes-Benz vehicles is ISO15765-4 (CAN), especially in models manufactured after 2008.

12.2. Can I use any OBD2 scanner on my Mercedes-Benz?

Not all OBD2 scanners are compatible with Mercedes-Benz vehicles. Ensure the scanner supports the correct OBD2 protocol and has the necessary features for Mercedes-Benz diagnostics.

12.3. How do I update the software on my OBD2 scanner?

Refer to the scanner’s manual for instructions on updating the software. Most scanners can be updated via USB or Wi-Fi.

12.4. What do I do if my OBD2 scanner cannot connect to my Mercedes-Benz?

Check the DLC for damage or debris, ensure the scanner is compatible with your car’s OBD2 protocol, and verify the connection between the scanner and the DLC.

12.5. Can I clear OBD2 codes without fixing the underlying issue?

Clearing OBD2 codes without fixing the underlying issue is not recommended. The code will likely reappear, and the problem may worsen over time.

12.6. What is the difference between generic and enhanced OBD2 codes?

Generic OBD2 codes are standardized codes that apply to all OBD2-compliant vehicles. Enhanced OBD2 codes are manufacturer-specific codes that provide more detailed information about the issue.

12.7. How often should I perform an OBD2 scan on my Mercedes-Benz?

Perform an OBD2 scan whenever you notice unusual noises, smells, or performance issues. Regular check-ups can also help identify potential problems before they become major issues.

12.8. What is the role of oxygen sensors in the OBD2 system?

Oxygen sensors monitor the amount of oxygen in the exhaust gases. This information is used to adjust the air-fuel mixture and ensure efficient combustion.

12.9. Can I use a smartphone app for OBD2 diagnostics?

Yes, there are many smartphone apps available for OBD2 diagnostics. However, you will need a compatible OBD2 adapter to connect your smartphone to the DLC.

12.10. Where can I find a list of Mercedes-Benz specific OBD2 codes?

You can find a list of Mercedes-Benz specific OBD2 codes in your vehicle manual, online forums, and technical resources.

13. Conclusion: Empowering Your Mercedes-Benz Ownership Through OBD2 Knowledge

Understanding “what OBD2 protocol is my car” is a key aspect of maintaining your Mercedes-Benz. With the knowledge and resources provided by MERCEDES-DIAGNOSTIC-TOOL.EDU.VN, you can confidently diagnose issues, perform DIY repairs, and keep your car running at its best.
